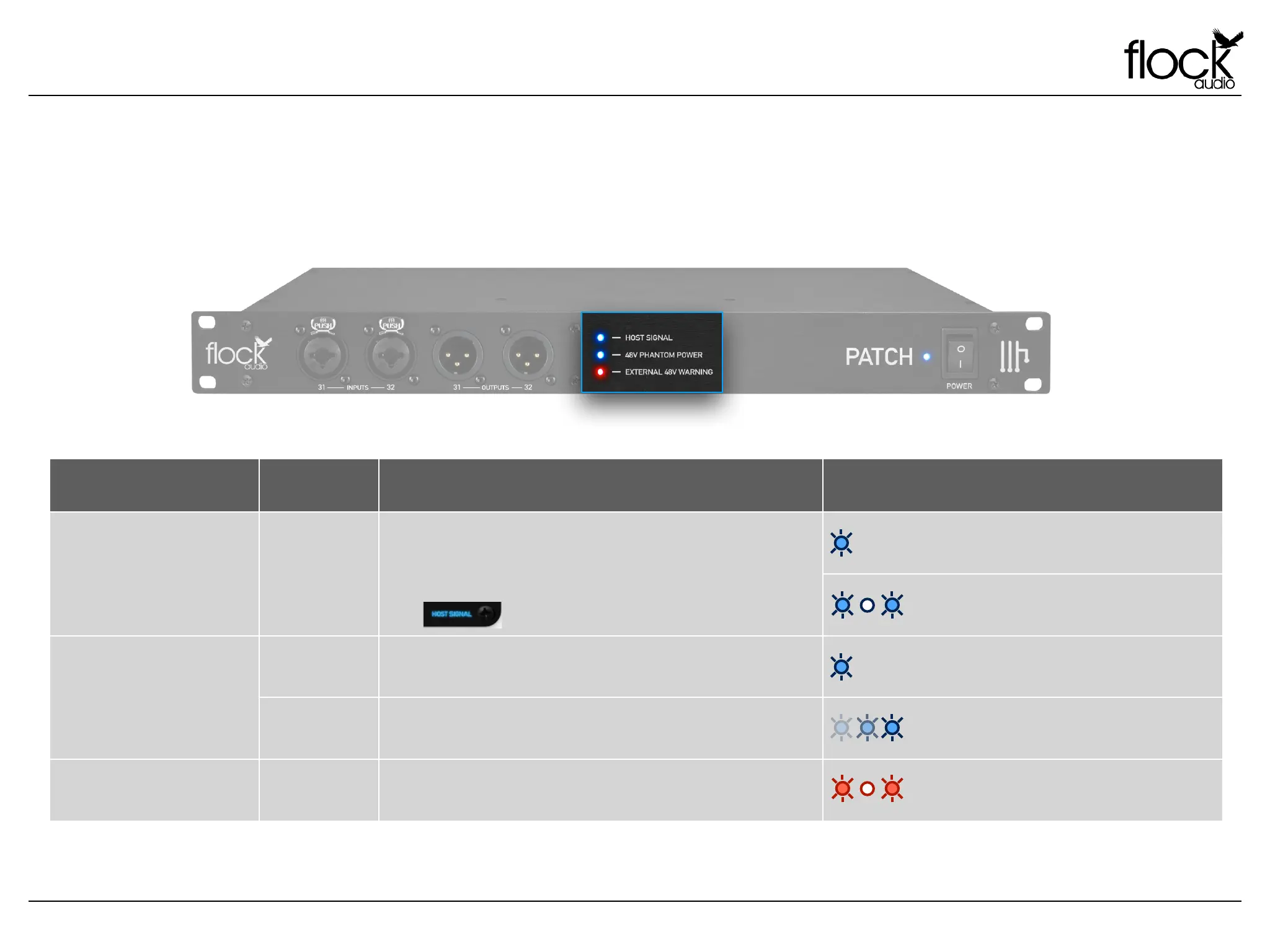

Flock Audio PATCH - Front Panel LED Indicators; Host Signal LED; 48 V Phantom Power LED; External 48 V Warning LED

LED Title:
LED Color:
LED Function:
LED Action:
Host Signal
Blue
LED Indicator responds to notify user of Hardware &
Software Connection.
48V Phantom Power
Blue
LED Indicator responds to notify user internal 48V is active
on the rear inputs of the PATCH Hardware.
Blue
LED Indicator responds to notify user internal 48V is
rerouted and active on the Front Inputs (31-32).
External 48V Warning
Red
LED Indicator responds to notify user of external 48V active
source connected to the PATCH System Hardware.
29
LED INDICATORS
PATCH MANUAL
FRONT PANEL LED INDICATORS
LED Indicator Legend
- Solid Blue (Connection Established)
- Flashing Blue (Missing Connection)
- Solid Blue (Internal 48V Active on Hardware)
- Fading/Pulsing Blue (48V Active on
Front Inputs)
- Flashing Red (External 48V Notification)
- Solid Blue (Host Signal Text In PATCH APP)
