8.6.6 Replacing the collection sensor
8.6.6.1 Preliminary operations
A. Ask a collection operator to perform a collection.
B. Turn off the terminal
8.6.6.2 Replacement
A. Remove the coinbox
B. Remove the coinbox cover (1) through the top.
C. Remove the 2 clamping screws from the sensor.
D. Remove the collection sensor (2).

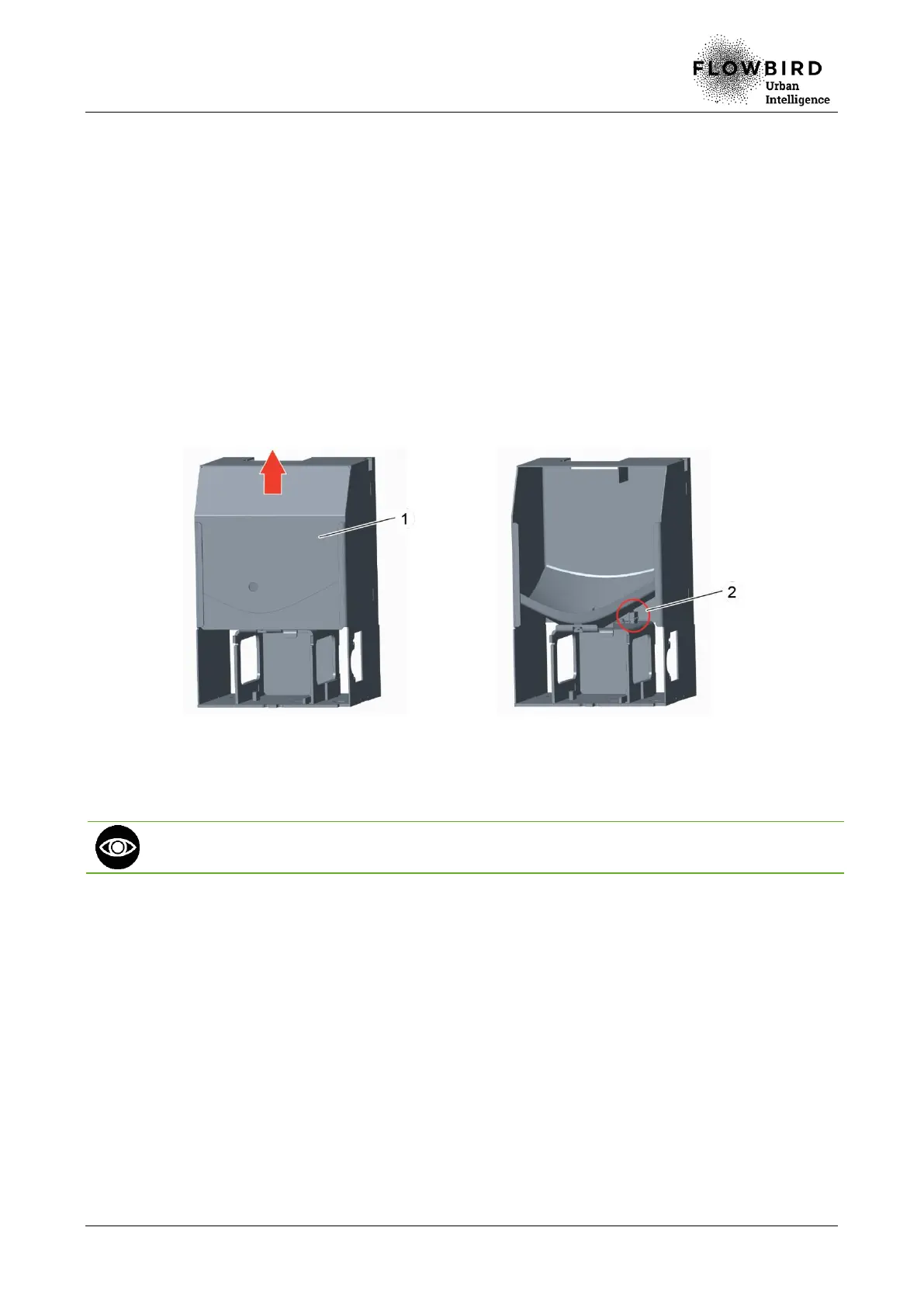

Replacing the collection sensor
8.6.6.3 Installation
When reassembling, check that the cable is positioned correctly.
A. Repeat the previous steps in reverse.
8.6.6.4 End of procedure
A. Turn on the terminal
B. Close the maintenance door
