STRADA PAL – MAINTENANCE MANUAL
116/149
8.6.5 Replacing the coin box
8.6.5.1 Preliminary operations
A. Ask a collection operator to perform a collection.
B. Turn off the terminal
C. Remove the maintenance rack
8.6.5.2 Replacement
A. Remove the collection drawer
B. Remove the 2 nuts (5) at the front right and at the rear left using a ratchet with a
very short handle.
C. Unscrew the paper jam handle (3) and its nut.
D. Disassemble the paper jam clock (2) (remove the nut and the spacer, then take it
out through the drawer location).
E. Remove the paper jam rod (4).
F. Maintain the coin duct shelf (1) (screw located behind the coin duct).
G. Proceed with the disassembling of the collection door lock assembly
H. Remove the coinbox by pulling it towards the top.

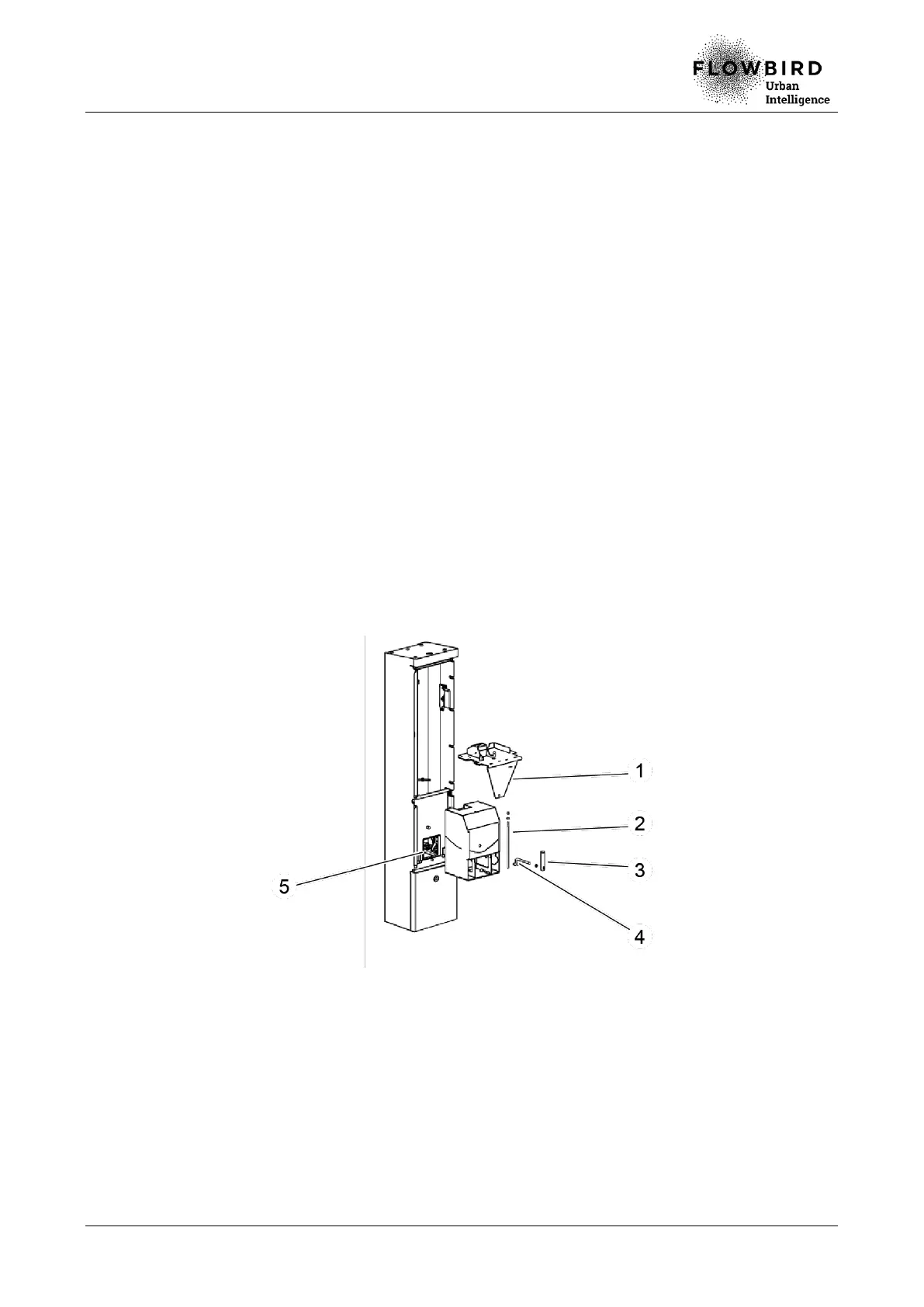

Replacing the coin box
8.6.5.3 Installation
A. Repeat the previous steps in reverse.
8.6.5.4 End of procedure
A. Turn on the terminal
B. Close the maintenance door
