8.7.2 Replacing the LED pilot card
8.7.2.1 Preliminary operations
A. Ask an operator to perform a first collection of the banknotes to remove the
banknote stacker.
B. Ask the collection operator to perform a second collection so that it unlocks the
collection compartment.
C. Turn off the terminal
8.7.2.2 Replacement

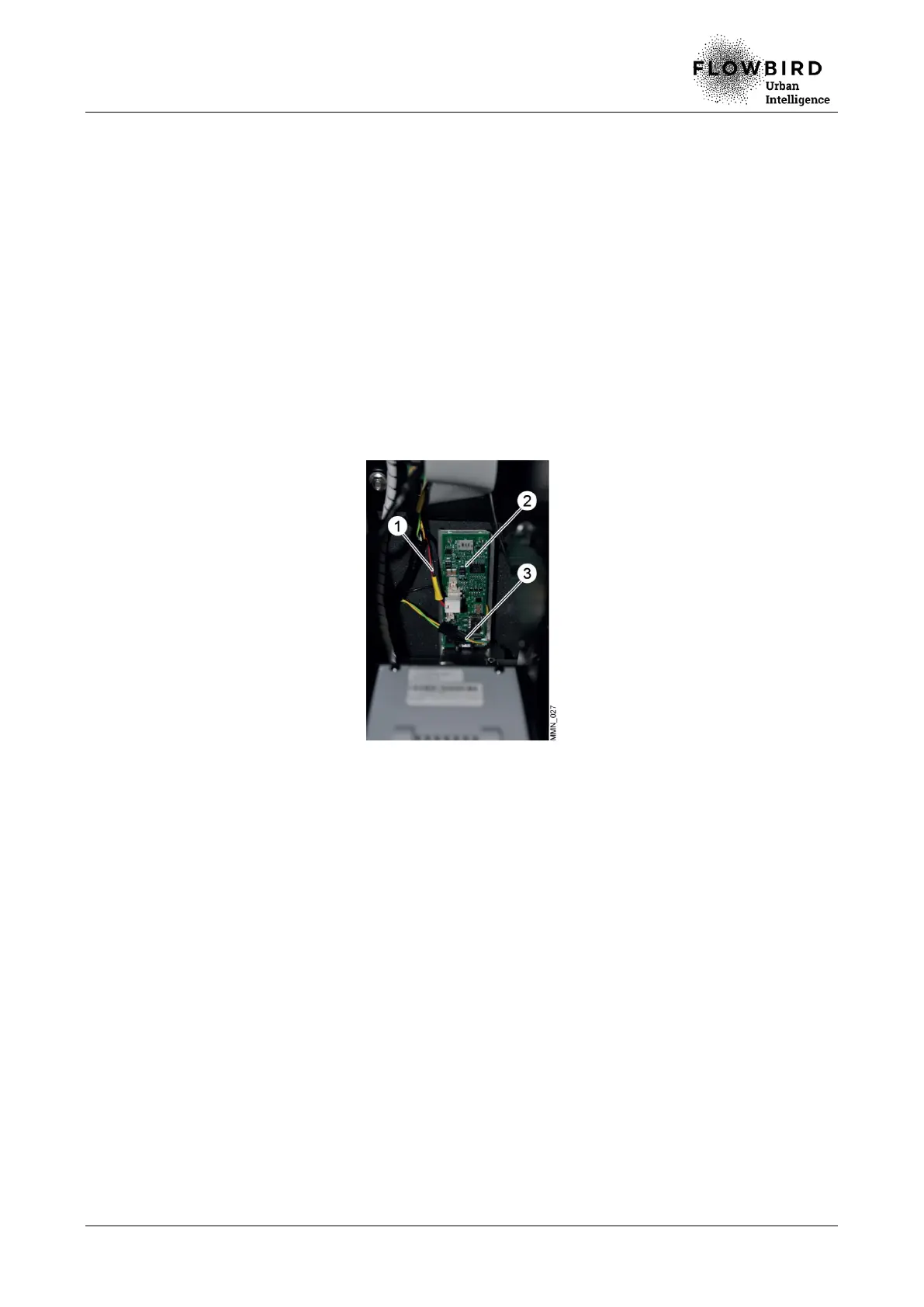

A. Unplug the 2 cables (1 and 3).
B. Remove the LED card (2) by unclipping it from its location.
Replacing the LED pilot card
8.7.2.3 Installation
A. Repeat the previous steps in reverse.
8.7.2.4 End of procedure
A. Turn on the terminal
B. Run a banknote payment test, then cancel it.
C. Close the maintenance door
