STRADA PAL – MAINTENANCE MANUAL
124/149

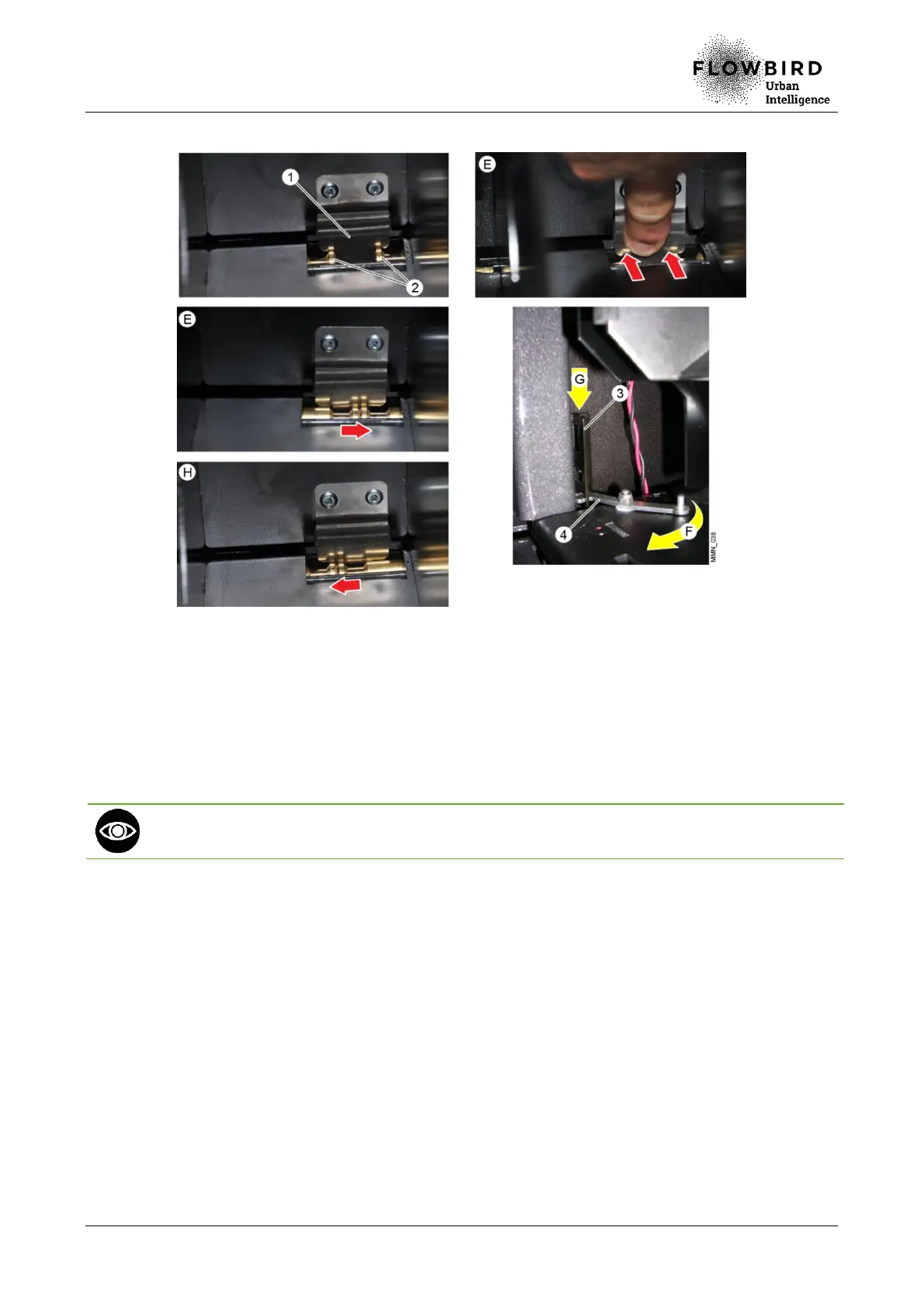

H. Remove the trapdoor.
Replacing the collection trapdoor (2/2)
8.7.4.3 Installation
A. Position the trapdoor.
B. Lift the rod up to the second level.
C. Slide the trapdoor axis to lock the left axis.
Check that the trapdoor presence sensor is correctly positioned and that there is no risk
to damade it while operating.
A. Lower the rod.
B. Place the axes back in place so that the blade is locked.
C. Check that the blade is free by pressing it.
D. Install the banknote reader
E. Ask the collection operator to put the banknote stacker and the coinbox back in
place.
8.7.4.4 End of procedure
A. Turn on the terminal
B. Perform an opening / closing function test of the trapdoor.
C. Perform a collection test.
D. Close the maintenance door
