STRADA PAL – MAINTENANCE MANUAL
123/149
8.7.4 Replacing the collection trapdoor
8.7.4.1 Preliminary operations
A. Ask a collection operator to perform a first collection of the banknotes and the coins
to remove the banknote stacker and the coinbox.
B. Ask the collection operator to perform a second collection so that it unlocks the
collection compartment.
C. Turn off the terminal
8.7.4.2 Replacement

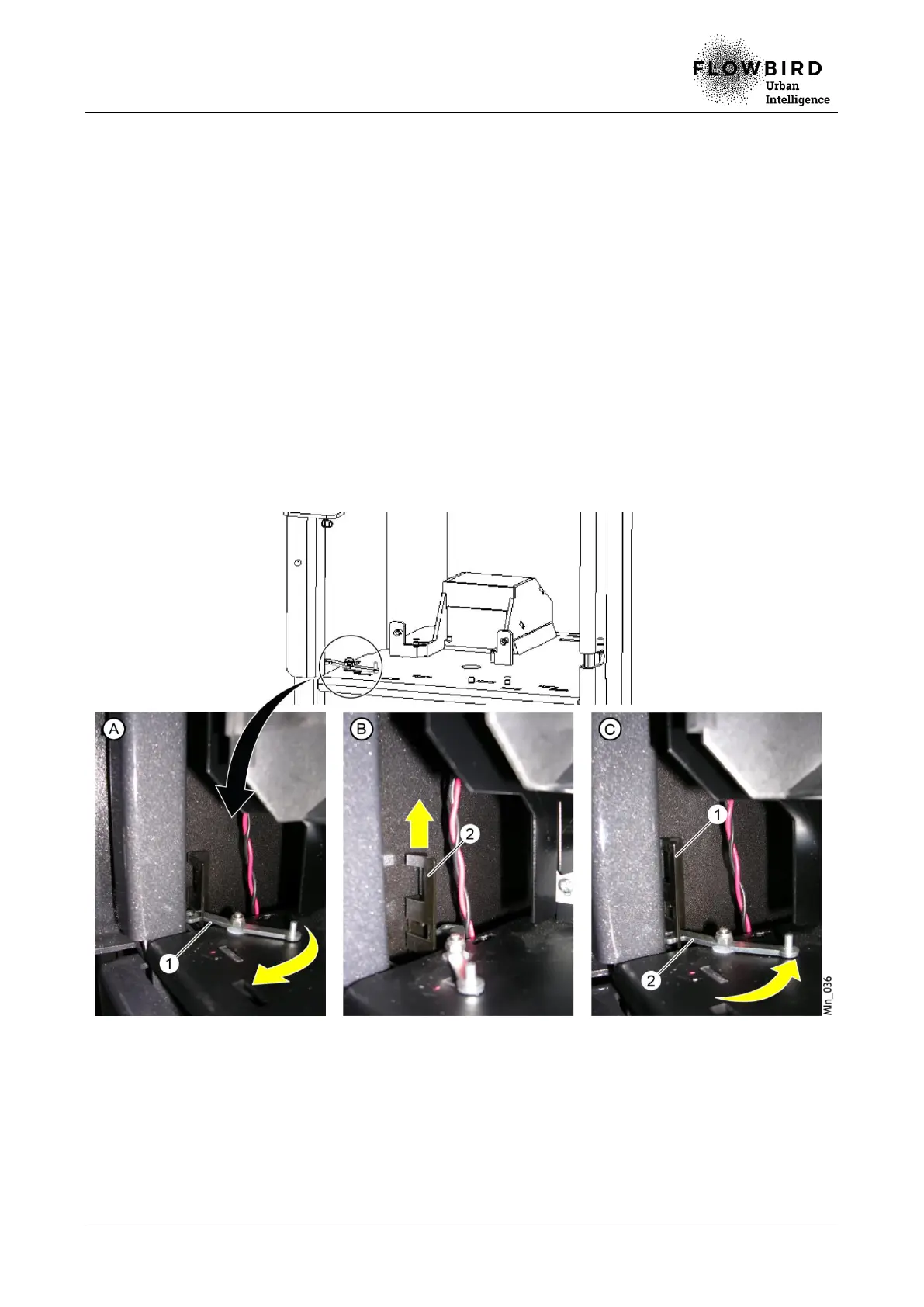

A. Remove the banknote reader While holding the rod (2) located against the
compartment wall, bring the lock (1) forward.
B. Lift the rod (2).
C. Block the rod while rotating the lock (1).
Replacing the collection trapdoor (1/2)
D. Press the blade (1) to unlock the 2 axes (2) then slide them to the right.
E. While holding the rod (3) located against the compartment wall, bring the lock (4)
forward.
F. Lower the rod (3).
G. Press the blade and slide to the left while holding the trapdoor.
