STRADA PAL – MAINTENANCE MANUAL
126/149
8.7.6 Replacing the coin collection sensor
8.7.6.1 Preliminary operations
A. Ask a collection operator to perform a first collection of the banknotes and the coins
to remove the banknote stacker and the coinbox.
B. Perform function 57 (SAO transfer) to forward the financial data to the Parkfolio
server.
C. Ask the collection operator to perform a second collection so that it unlocks the
collection compartment.
D. Open the maintenance door
E. Turn off the terminal
F. Disassemble the collection trapdoor
8.7.6.2 Replacement

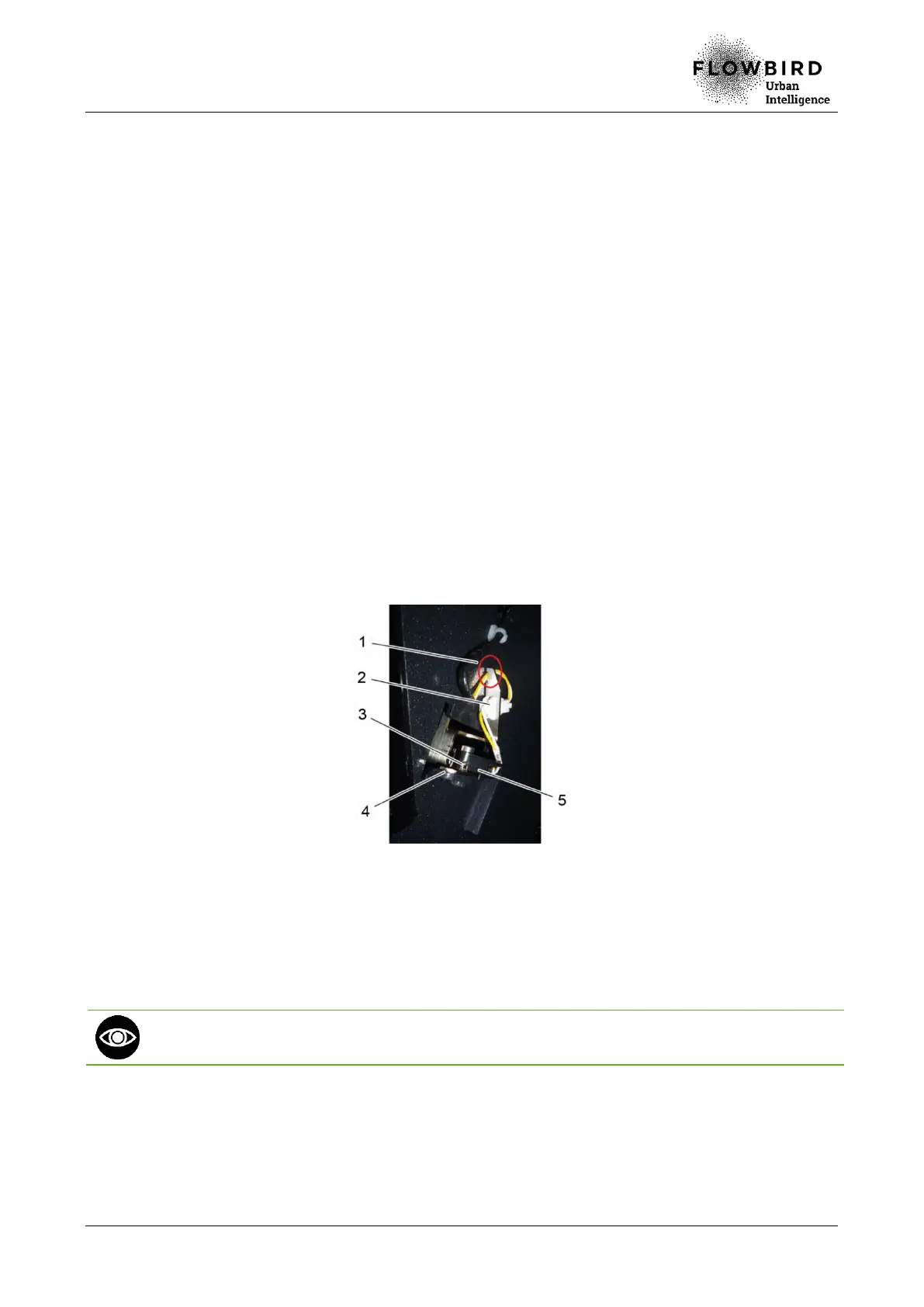

A. Remove the screw (4).
B. Unplug the coin collection sensor cable (2).
C. Remove the support.
Replacing the coin collection sensor
8.7.6.3 Installation
A. Install the spring (3) on the cam (5).
B. Repeat the previous steps in reverse.
Before tightening the screw (4), ensure that the cable goes through the slot (1).
8.7.6.4 End of procedure
A. Reassemble the collection trapdoor
B. Turn on the terminal
C. Close the maintenance door
