STRADA PAL – MAINTENANCE MANUAL
130/149

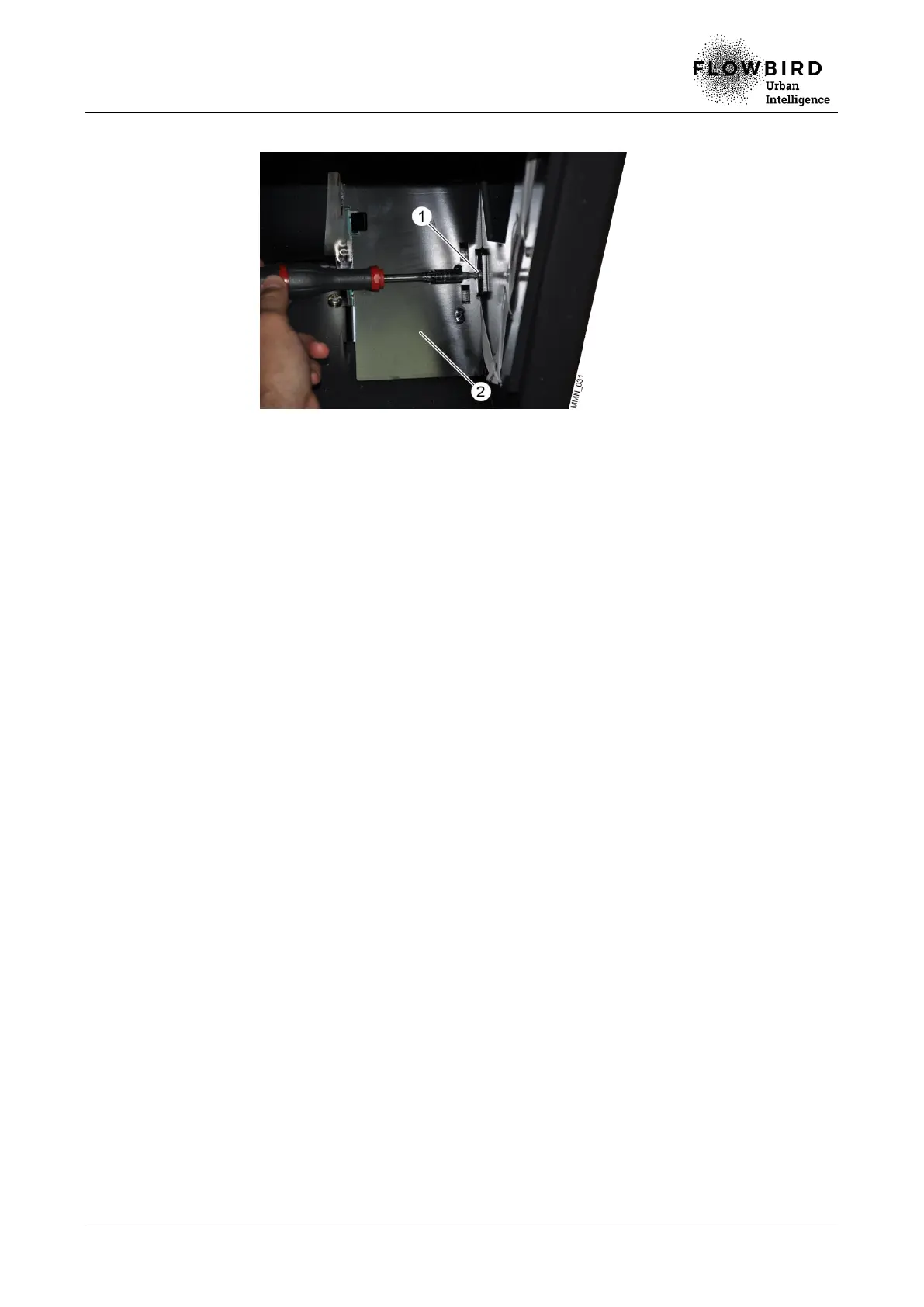

D. Remove the cover (2) of the e-lock assembly.
Replacing the collection trapdoor locking module
E. Remove the 2 clamping screws.
F. Unplug all the cables connected to the locking module.
G. Remove the collection trapdoor locking module.
8.7.9.3 Installation
A. Repeat the previous steps in reverse.
8.7.9.4 End of procedure
A. Reassemble the collection trapdoor
B. Turn on the terminal
C. Close the maintenance door
