8.7.9 Replacing the collection trapdoor locking module
8.7.9.1 Preliminary operations
A. Ask a collection operator to perform a first collection of the banknotes and the coins
to remove the banknote stacker and the coinbox.
B. Ask the collection operator to perform a second collection so that it unlocks the
collection compartment.
C. Turn off the terminal
D. Disassemble the collection trapdoor
8.7.9.2 Replacement

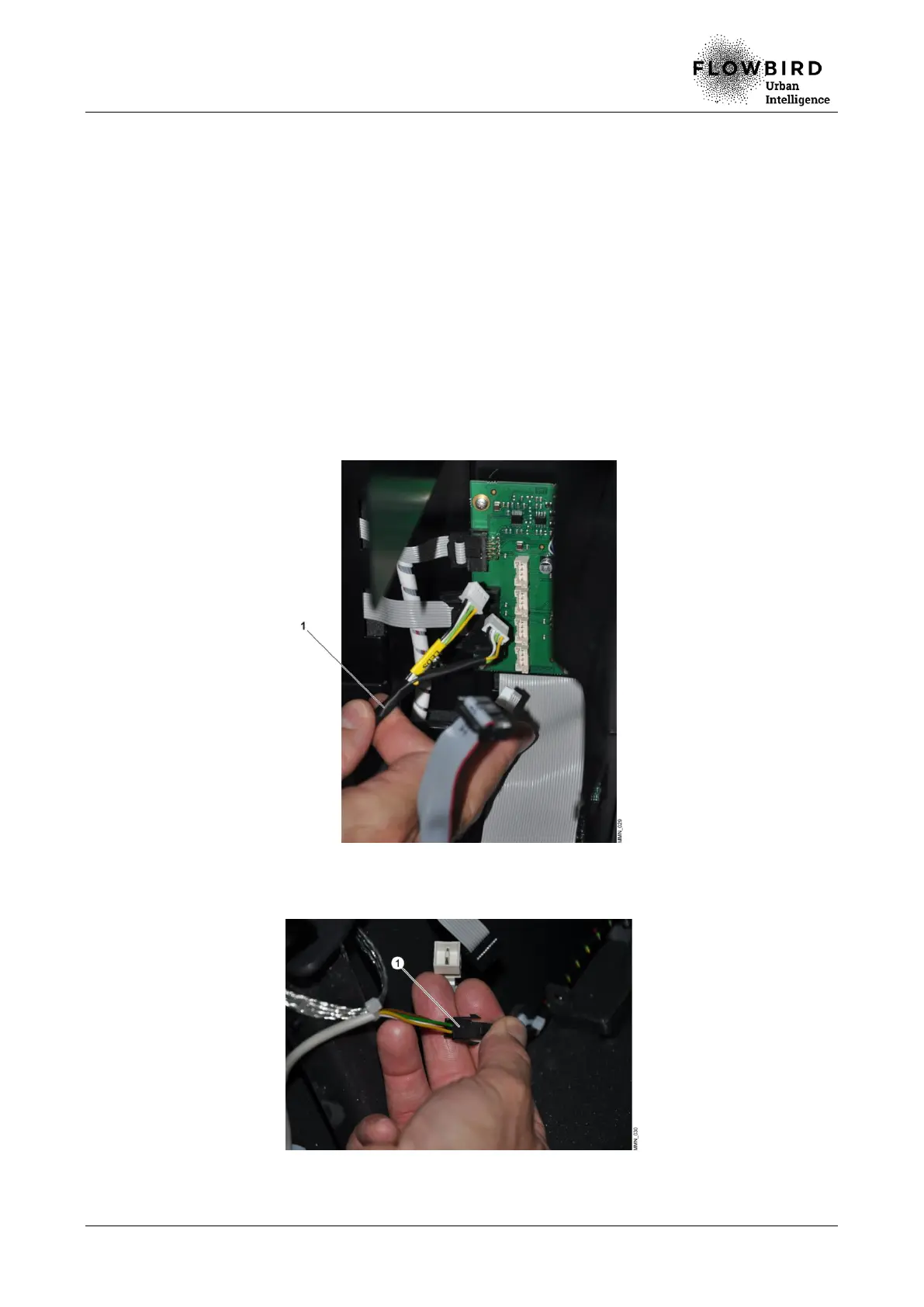

A. Unplug all the cables (1).
Replacing the collection trapdoor locking module
B. Unplug the collection key cable (1).
Replacing the collection trapdoor locking module
C. Remove the screw (1).
