8.7.8 Replacing the coinbox presence sensor
8.7.8.1 Preliminary operations
A. Ask a collection operator to perform a first collection of the banknotes and the coins
to remove the banknote stacker and the coinbox.
B. Perform function 57 (SAO transfer) to forward the financial data to the Parkfolio
server.
C. Ask the collection operator to perform a second collection so that it unlocks the
collection compartment.
D. Turn off the terminal
E. Disassemble the collection trapdoor
8.7.8.2 Replacement
A. Unplug the coin collection sensor cable (1).
B. Remove the clamping screw from the sensor holder (2).

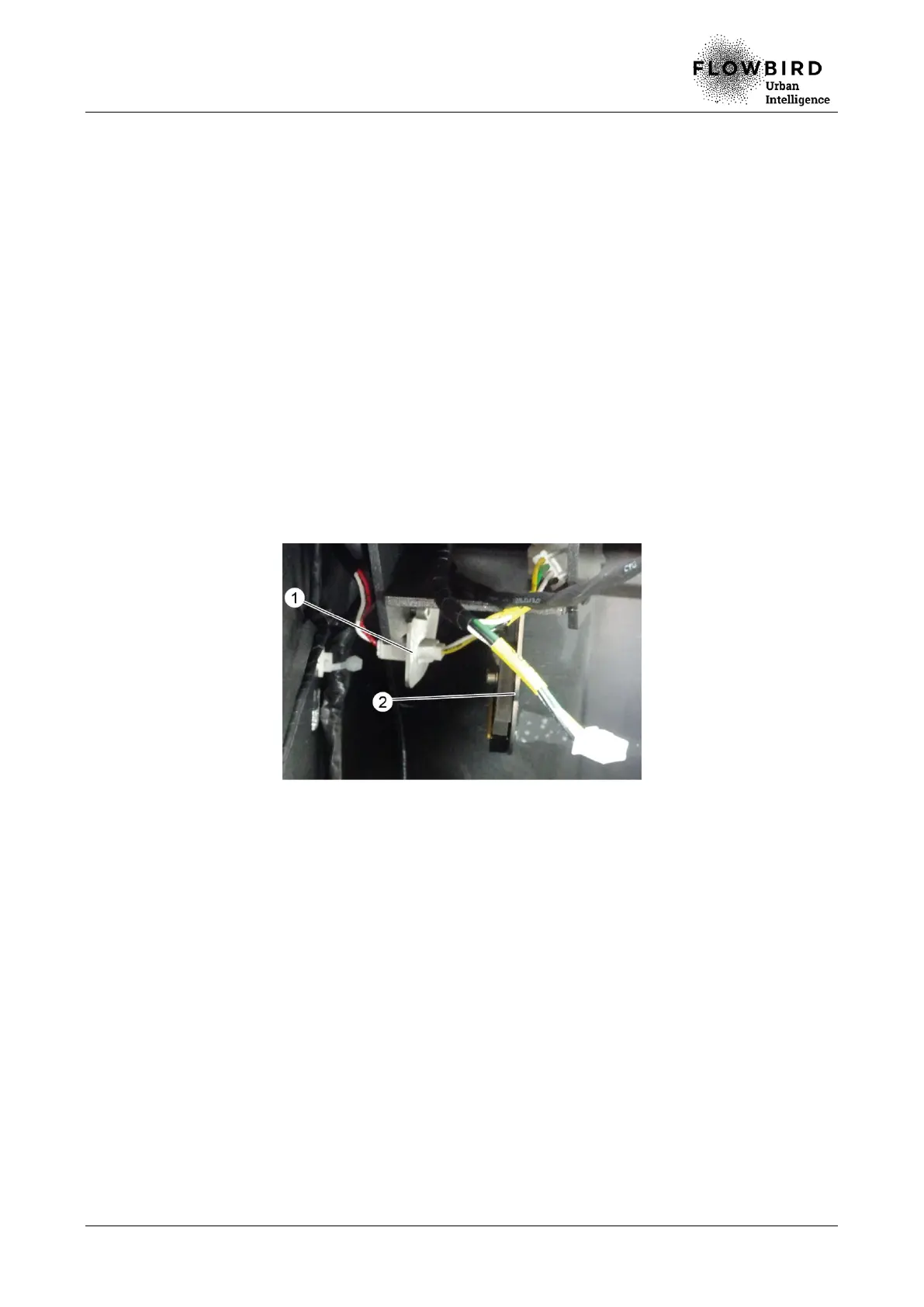

Replacing the coinbox presence sensor
8.7.8.3 Installation
A. Repeat the previous steps in reverse.
8.7.8.4 End of procedure
A. Reassemble the collection trapdoor
B. Turn on the terminal
C. Perform a function test.
D. Close the maintenance door
