STRADA PAL – MAINTENANCE MANUAL
58/149

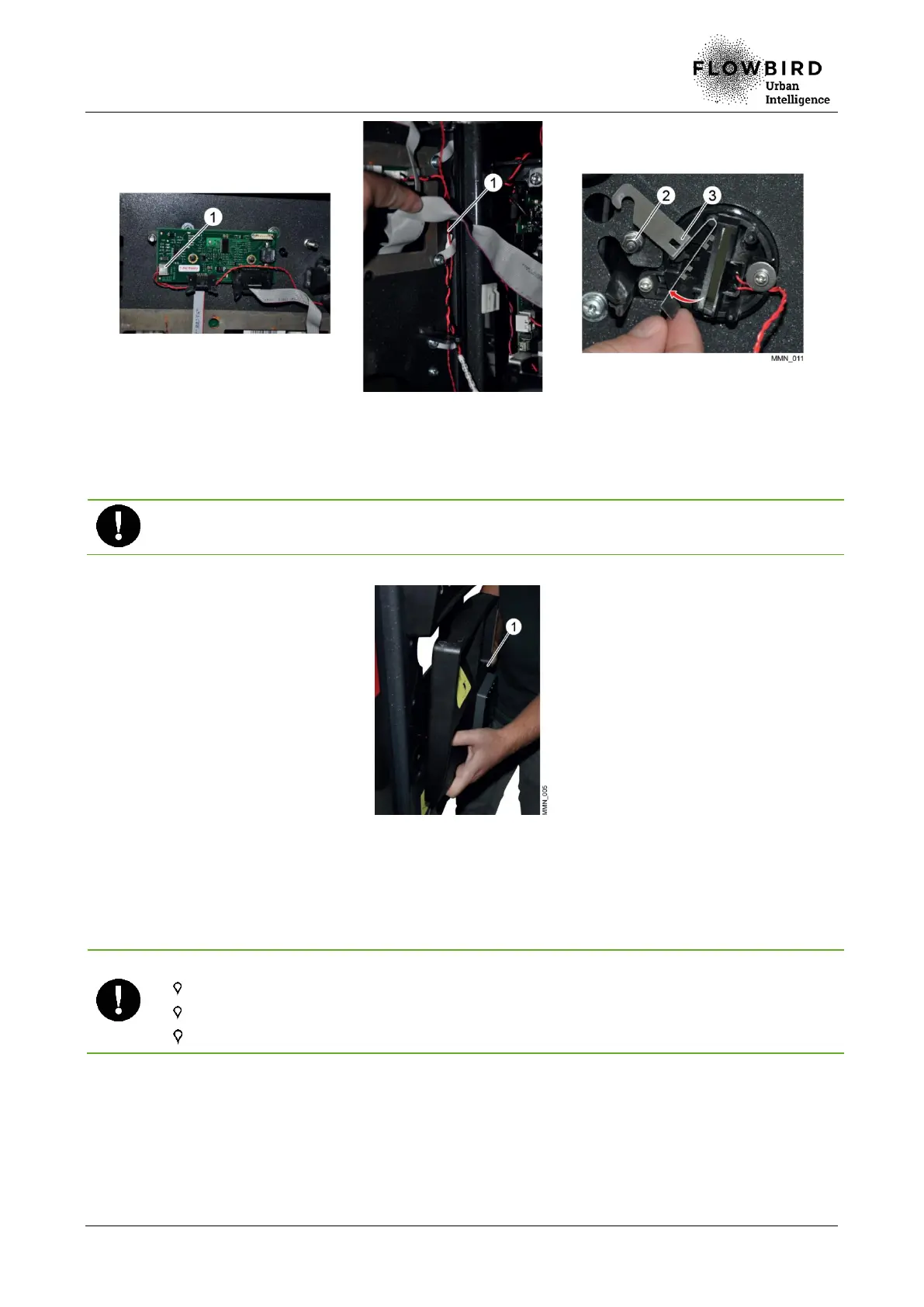

Replacing the lower front panel (3/4)
G. Remove the barcode reader
H. Remove the 11 screws and washers that hold the lower front panel (1).
Hold the lower front panel while removing the last screw.
I. Remove the lower front panel (1) and its cables.
Replacing the lower front panel (4/4)
8.2.7.3 Installation
A. Repeat the previous steps in reverse.
Warning:
Check the cable passage used by the strands (1) and the coin inlet strand (2).
Check the location of the antenna cables (3).
Tighten the tightening screw of the bank card keypad with a torque of 1.7 N.m.
