STRADA PAL – MAINTENANCE MANUAL
61/149
8.2.9 Replacing the coin bowl
8.2.9.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal

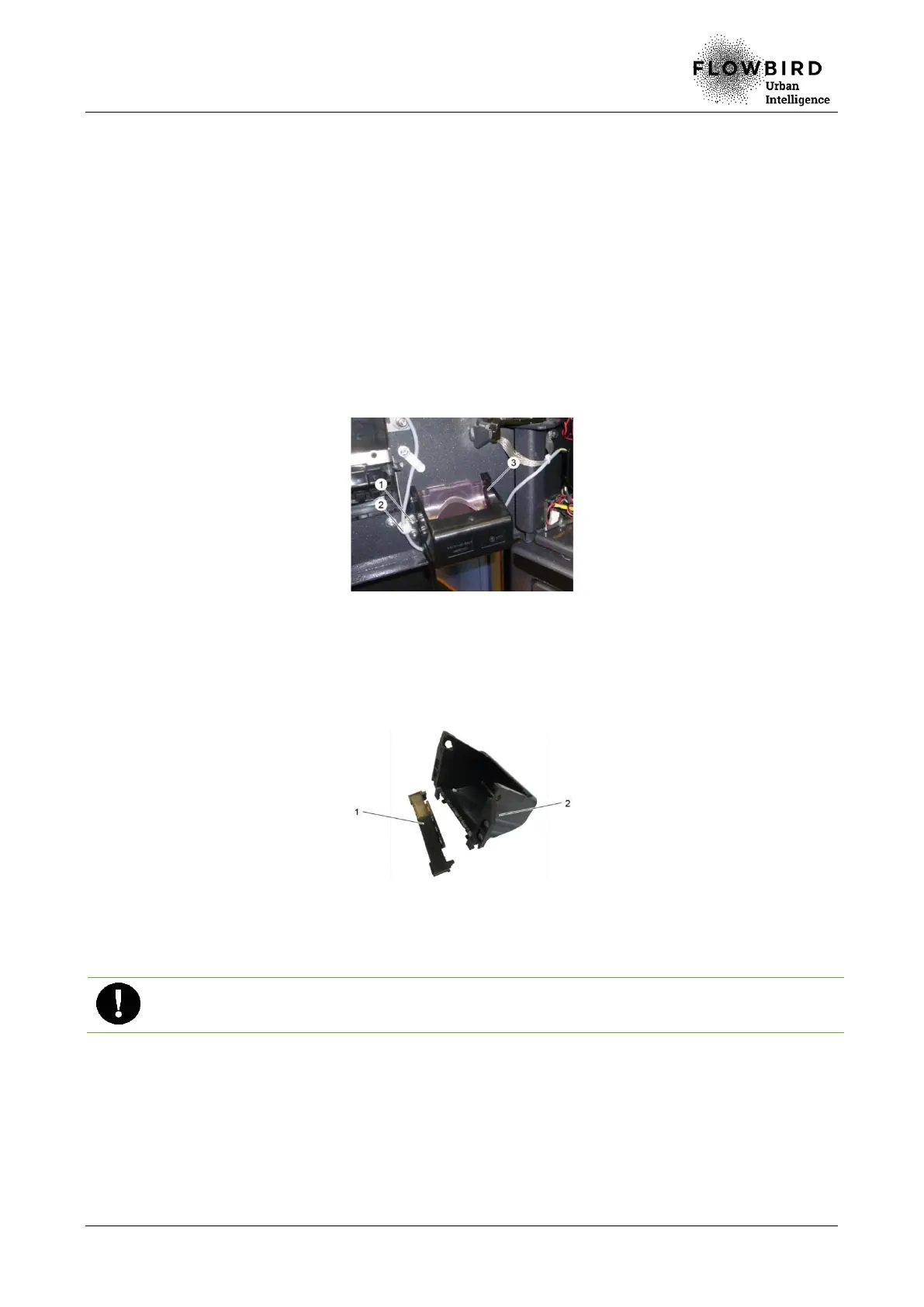

8.2.9.2 Replacement
A. Remove the 4 clamping nuts (1).
B. Remove the 2 cables guides (2).
C. Remove the coin bowl (3).
8.2.9.3 Installation
A. Remove the lower plastic part (1) of the new coin bowl (2) (for climatic pack option).
B. Repeat the previous steps in reverse, and pay attention to the positioning of the
coin bowl flap.
Hold tight the coin bowl against the door cutout before tightening the 4 nuts.
8.2.9.4 End of procedure
A. Turn on the terminal
B. Ensure that the maintenance door can be closed correctly.
C. Ensure that the coin bowl flap is well positioned.
D. Close the maintenance door
