STRADA PAL – MAINTENANCE MANUAL
84/149
8.3.8 Replacing the door-open detection sensor (maintenance door)
8.3.8.1 Preliminary operations
A. Open the maintenance door
B. Turn off the terminal
8.3.8.2 Replacement
A. Remove the ticket roll
B. Tilt the protective cover towards the end of the rack.

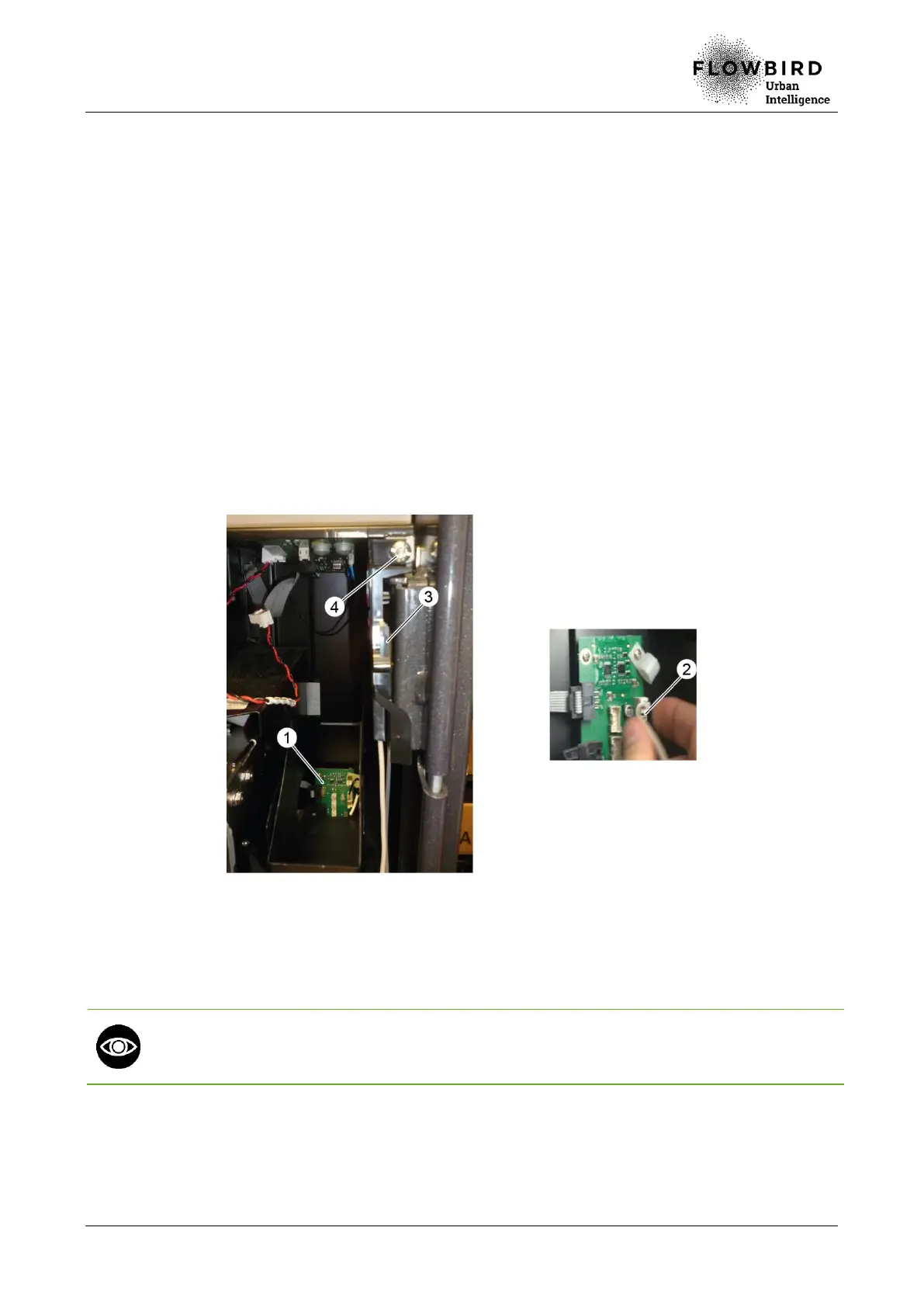

C. On the relay board (1), unplug the connection cable (2) of the door-open detection
sensor (3).
D. Loosen by 2 turns the clamping screw (4) of the door-open detection sensor.
E. Remove the door-open detection sensor by shifting it to the left then to the bottom.
Replacing the door-open detection sensor
8.3.8.3 Installation
A. Repeat the previous steps in reverse.
To install the new sensor, tilt it to the left then shift it the top. Once it is positioned
at the same level of the clamping screw, tilt it to the right and tighten the clamping
screw. Ensure that the lower part is well positioned in its location in the housing.
8.3.8.4 End of procedure
A. Turn on the terminal
B. Close the maintenance door
