Chapter 3: Operation
Disconnect the Hyperion Tissue Imager from Helios
Hyperion Imaging System User Guide
43

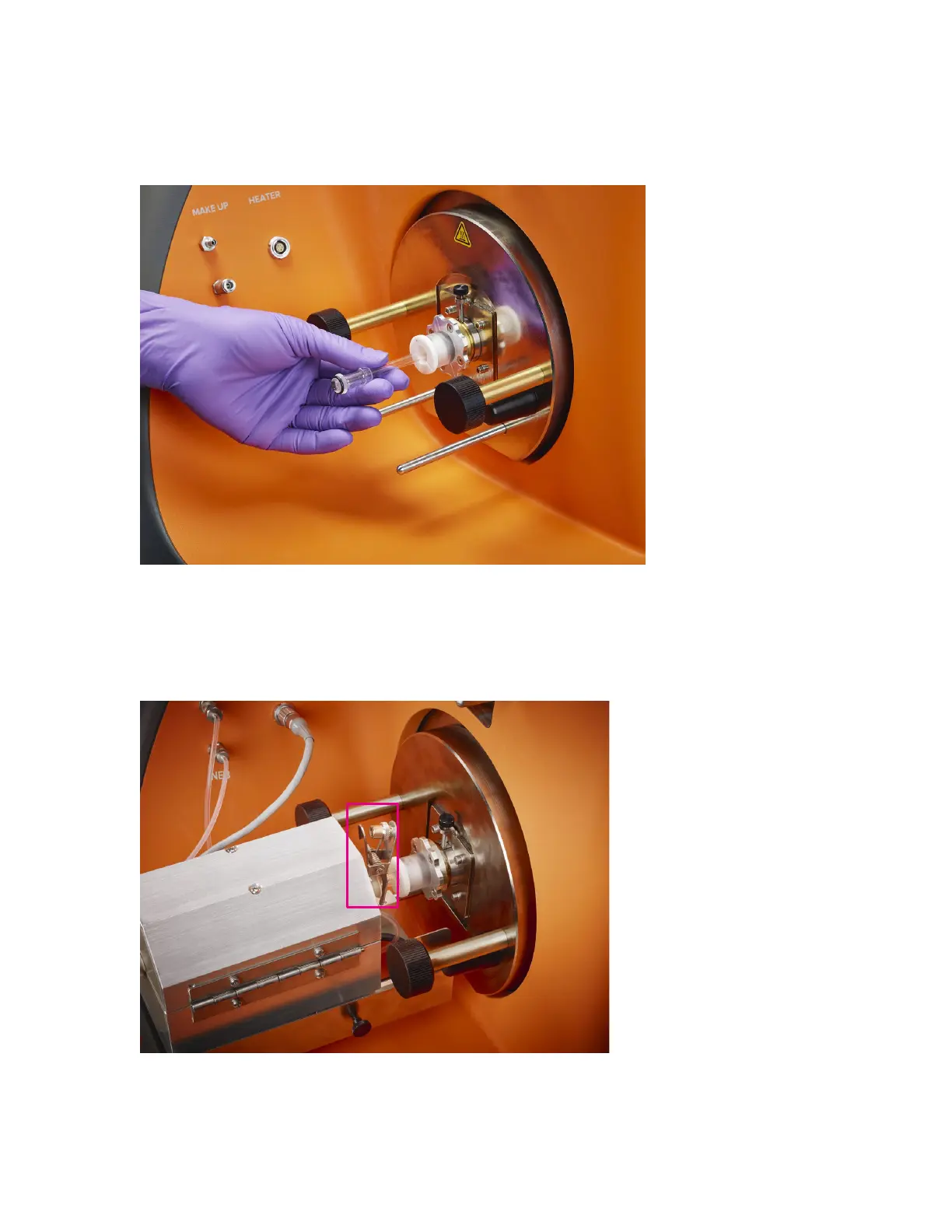

3 Insert the HT Injector (PN 107018) into the torch body and push in until it can go no
farther.
4 Reconnect the heater box to the torch assembly. Slide the heater box onto the support
pins towards the torch assembly so that the spray chamber ball joint connection meets
the injector.
5 Connect the ball joint clamp to secure the spray chamber to the Injector.
