Page 29

FW-E115-P-M_v0203_03_EN.docx

4.3.2 MOUNTING

The display inside the enclosure can be installed in four positions:

0°; 90°; 180°; 270°, so the enclosure can be installed in four positions.

The enclosure can be installed on a wall by using the mounting plate (accessory) or pipe mounted

with the bracket and hose clamps (accessory).

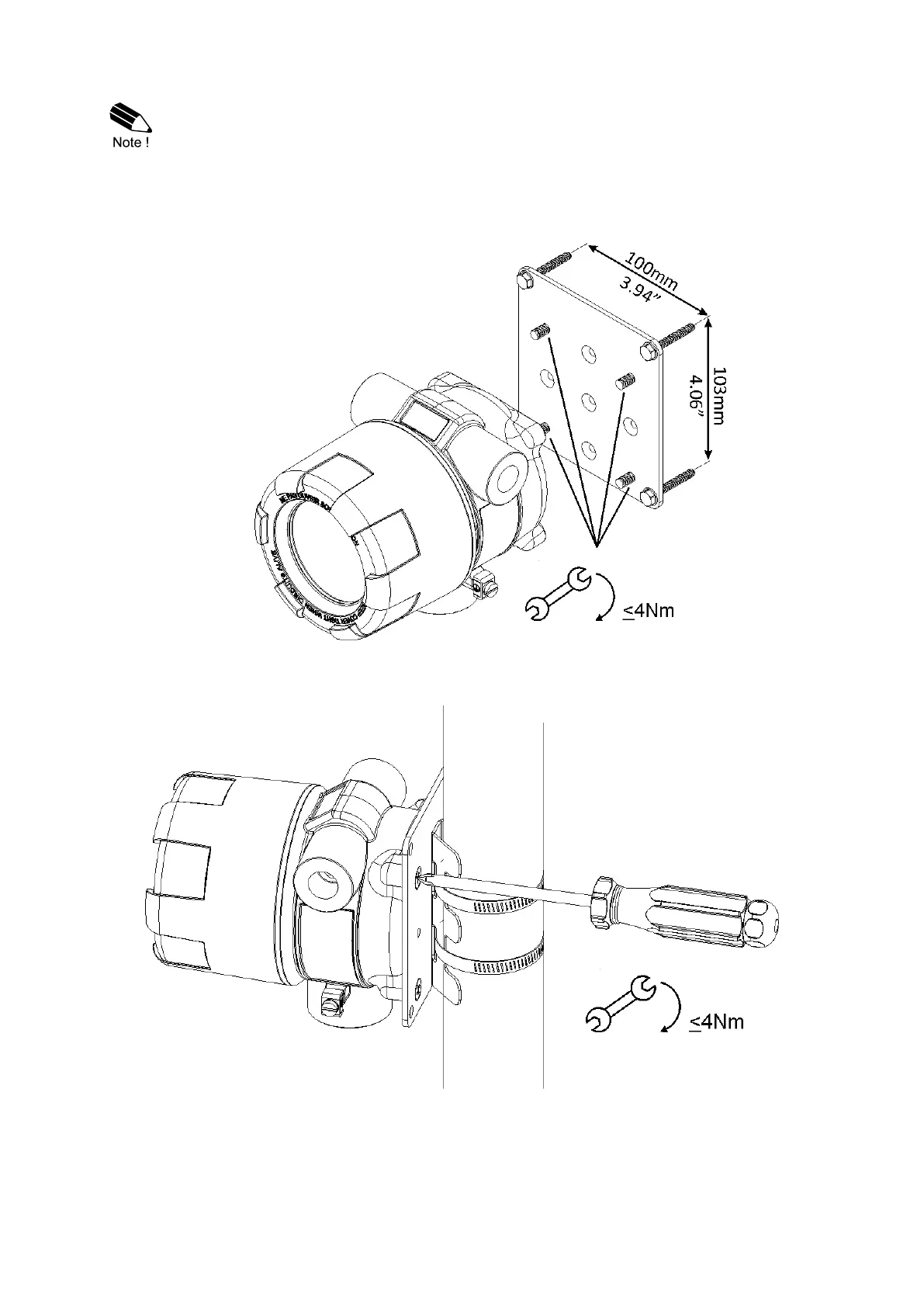

Fig. 10: Installation – Plate mounted

Fig. 11: Installation – Pipe mounted
