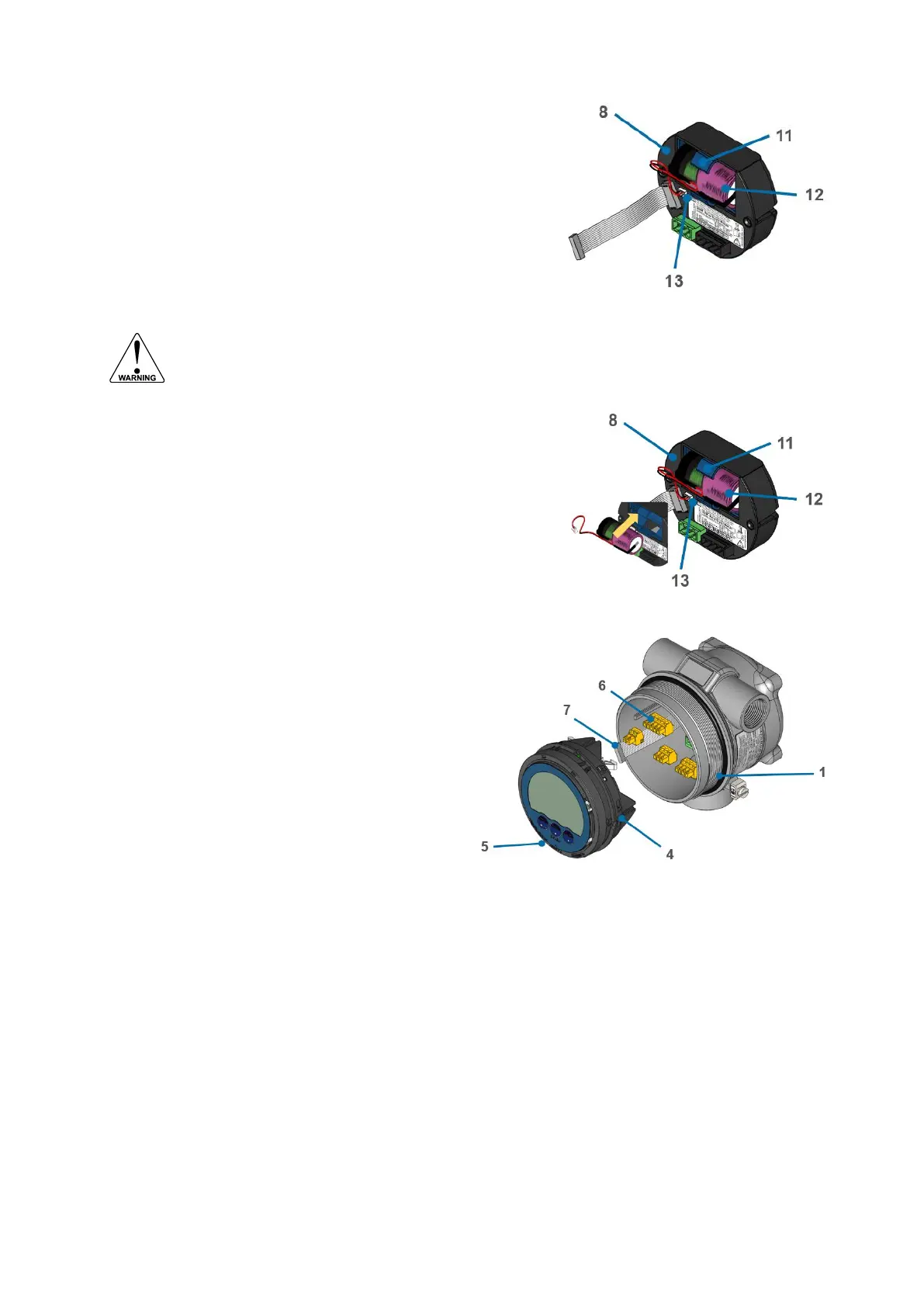

5.4.2 REMOVE THE BATTERY FROM THE SUPPLY MODULE (BSM OR RSM)
1. Disconnect the connector (13) from the
Supply Module (8).
2. Carefully, remove the battery (12) from the
battery holder (11).
3. As applicable discard or keep the
battery (12) and the Supply Module (8) in a
clean and safe location.
5.4.3 INSTALL THE BATTERY IN THE SUPPLY MODULE (BSM OR RSM)
Handle the battery with care. A mistreated battery can become unsafe. Unsafe batteries
can cause (serious) injury to persons.
1. Unpack the new battery (12).
2. Make sure, the new battery (12) shows no
signs of damage or overheating.
3. Hold the battery (12) in the correct position
for installation.
4. Carefully, install the battery (12) in the
battery holder (11).
5. Carefully, install the connector (13).
5.4.4 INSTALL THE MAIN ELECTRONICS MODULE (MEM)
1. Install the connectors (6, 7) to the
MEM (4).
2. Lock the flatcable connector (7) by hand
and note that the MEM (4) comes on.
3. Hold the MEM (4) in the correct position
for installation.
4. Mind the wiring and carefully move the
MEM (4) into the housing (1).
