Input and Channel Configuration
Introduction 3
3-3
Introduction
This chapter supplies instructions on how to wire inputs to the Input Module then
configure the associated channel.
Input Wiring
The 1586-2586 High Capacity Input Module
The 1586-2586 High Capacity Input Module (the Input Module) is used to wire inputs of
various types to the Product (see Figure 3-1). Each Input Module has 20 analog channels
(ChX01 through ChX20) that can be configured to measure temperature, resistance, and
dc volts and two low-burden current channels (ChX21 and ChX22) that measure
dc current without the use of an external shunt resistor.
Note
To expand the functionality of the Product, current sources can also be connected
to channels ChX01 through ChX20 by the use of an accessory shunt resistor. See
Chapter 6 for part number and ordering information.
3-Wire or
4-Wire Connection
2-Wire
Connection
Note: For 3-Wire connections, leave the H sense open.
3-Wire or 4-Wire Connection
2-Wire Connection
hcn012.eps

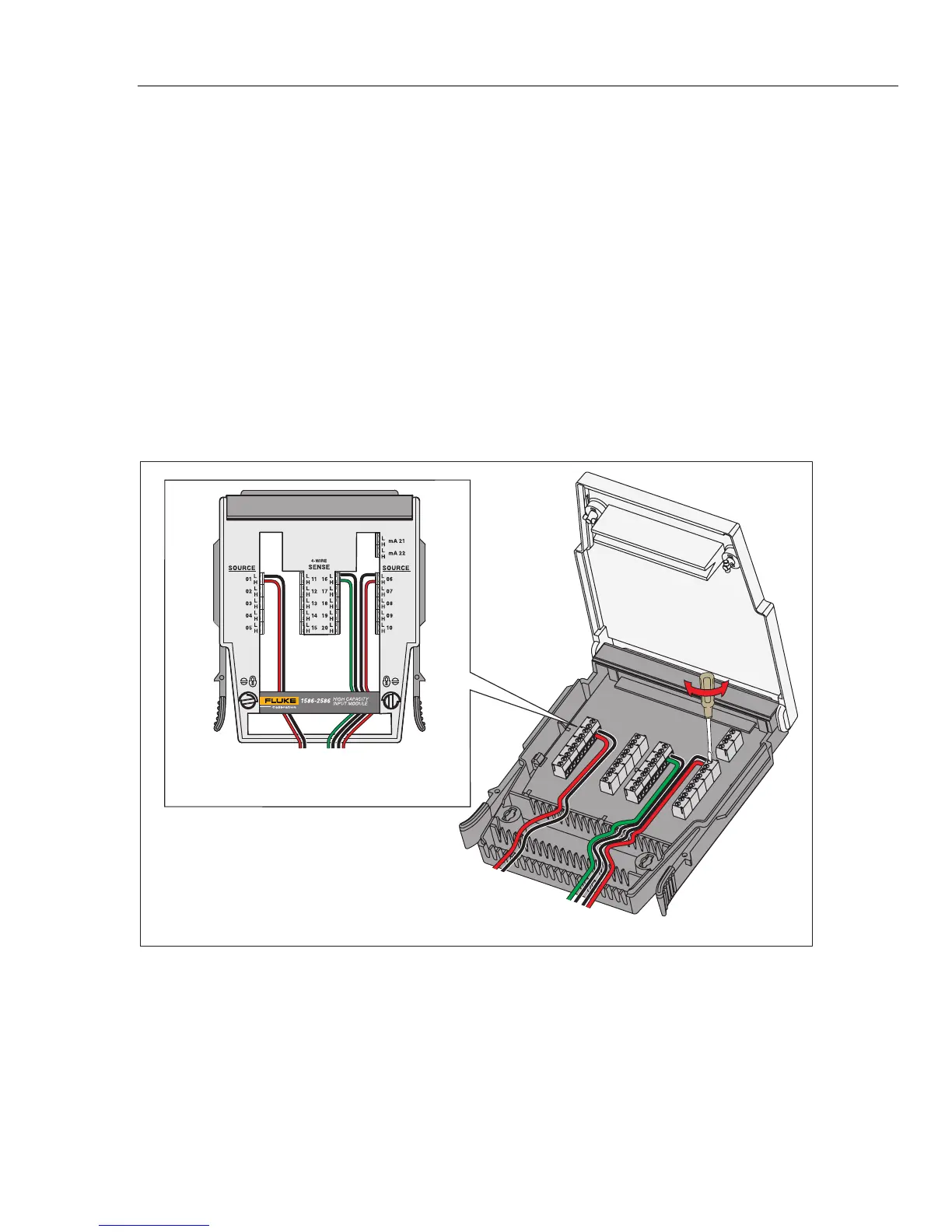

Figure 3-1. 2-Wire, 3-Wire, and 4-Wire Input Module Connections
