Resistance Channels
Refer to Table 3-5 to configure a resistance channel.

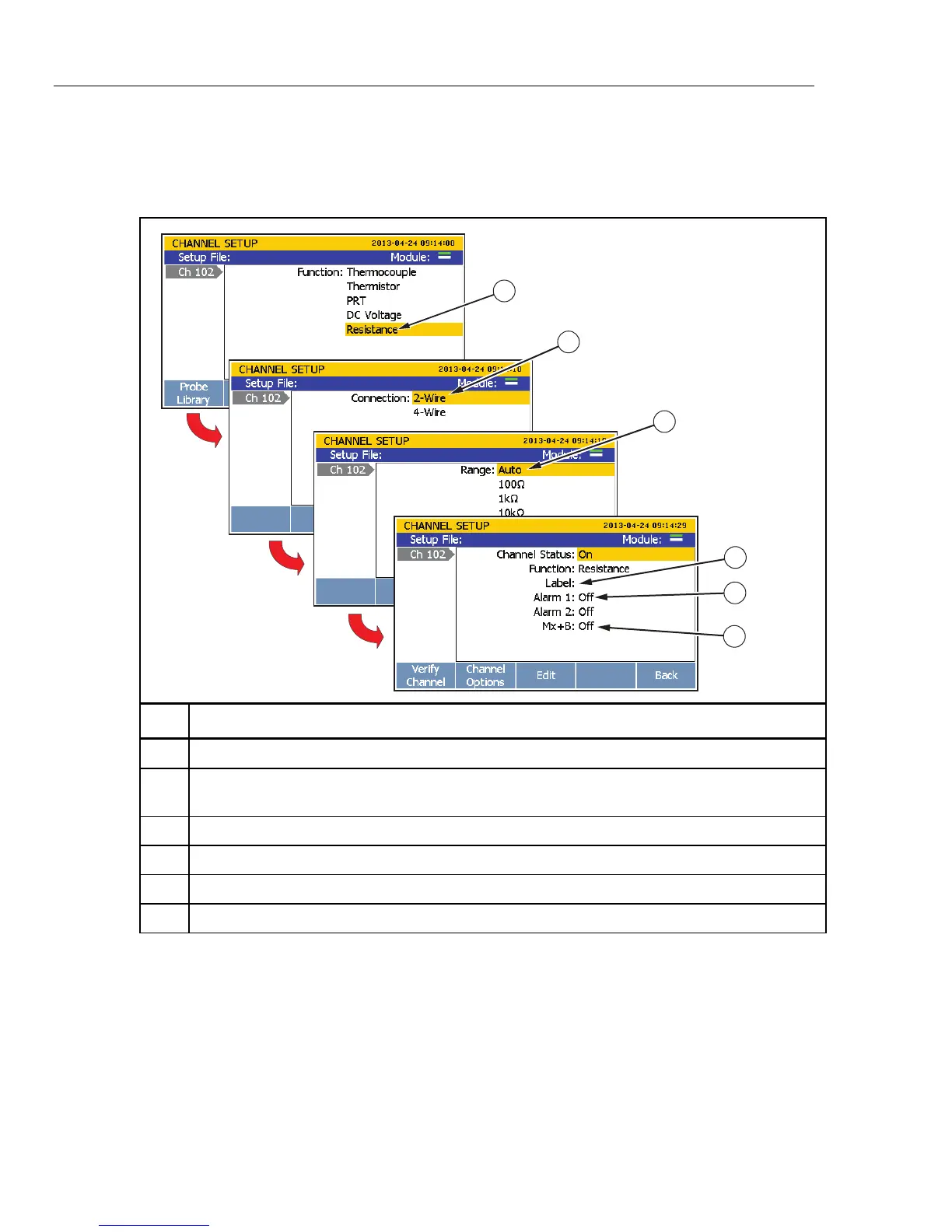

Table 3-5. Resistance Channel Configuration
1
2
3
4
5
6
hcn008.e
p
s
Item Function
 Resistance function selection.

Set up the channel for a 2-wire or 4-wire resistance measurement connection. See “Sense Input
Configuration” on page 3-6.
 Set the range to: Auto, 100 Ω, 1 kΩ, 10 kΩ, 100 kΩ, 1 MΩ or 10 MΩ. Ch001 can be set to 100 MΩ.
 Input a custom alpha-numeric label to help identify the channel (optional).
 Set an alarm for this channel (optional). See “HI and LO Channel Alarms” on page 3-31.
 Apply Mx+B scaling to the measurement (optional). See “Mx+B Scaling” on page 3-30.
