Fluke 1586A - Thermocouple Channels

Input and Channel Configuration
Channel Configuration 3
3-21
Thermocouple Channels
Refer to Table 3-6 to configure a thermocouple channel. Thermocouple types R and S
have optional correction polynomial coefficients to be entered. The correction equation is
as follows:
32
3210 tCtCtCCV +++=Δ
where t is the temperature in °C and ΔV is the correction in millivolts. If the correction is
not used, leave the coefficients set to 0.

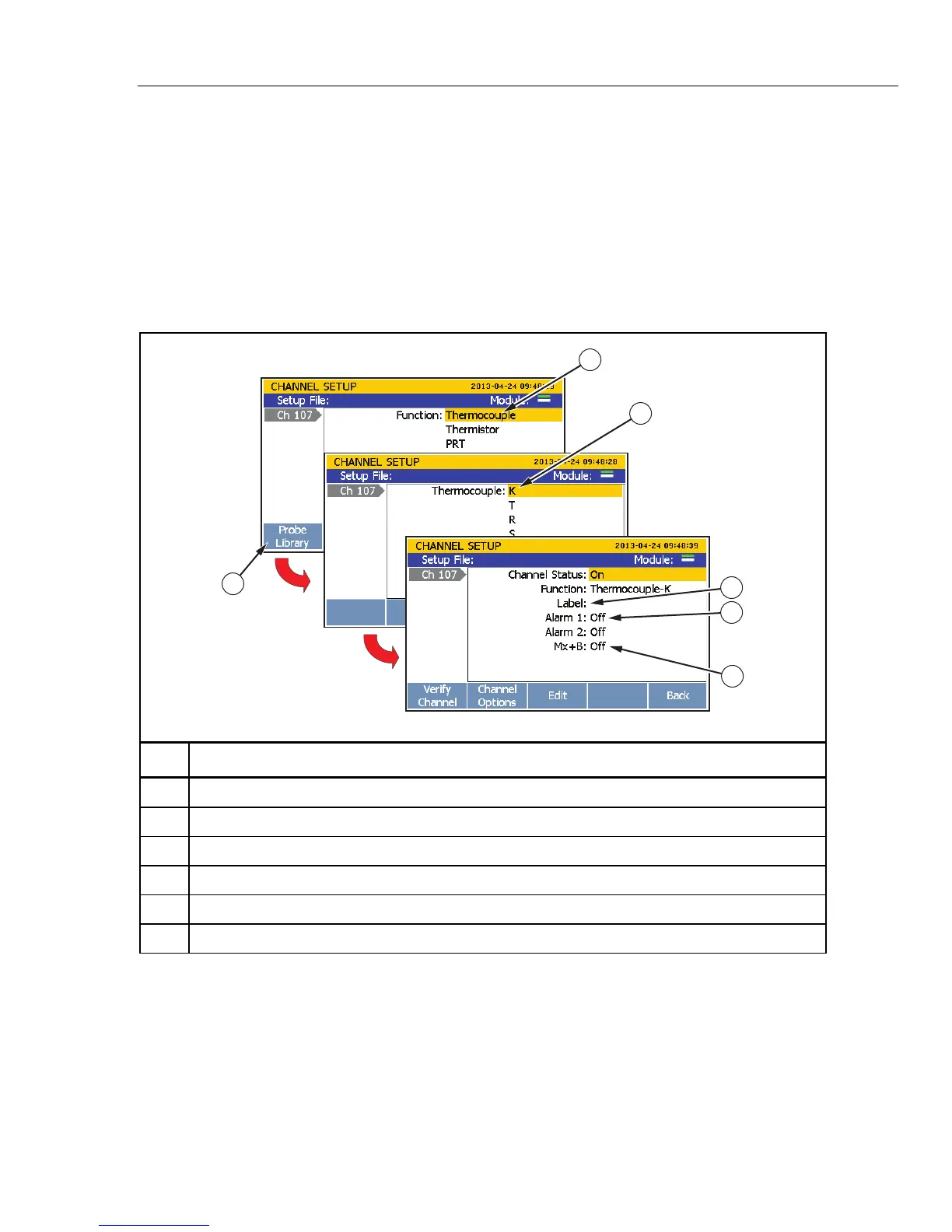

Table 3-6. Thermocouple Channel Configuration
1
2
3
4
5
6
hcn009.eps
Item Function
 Thermocouple function selection.
 Select the thermocouple type.
 Input a custom alpha-numeric label to help identify the channel (optional).
 Set an alarm for this channel (optional). See “HI and LO Channel Alarms” on page 3-31.
 Apply Mx+B scaling to the measurement (optional). See “Mx+B Scaling” on page 3-30.
 Load a thermocouple from the Probe Library. See “Probe Library” on page 3-34.
