Fluke 1586A - The 1586-2588 DAQ-STAQ Multiplexer Connector Module

1586A
Users Manual
3-4
The 1586-2588 DAQ-STAQ Multiplexer Connector Module
The 1586-2588 DAQ-STAQ Multiplexer Connector Module (the Multiplexer) is an
external, bench-top accessory that is used to quickly wire inputs of various types to the
Product (see Figure 3-2). Each Multiplexer has 20 analog channels (ChX01 through
ChX20) that can be configured to measure temperature, resistance, and dc volts.
2-Wire
3-Wire
4-Wire
Thermocouple
hcn040.eps

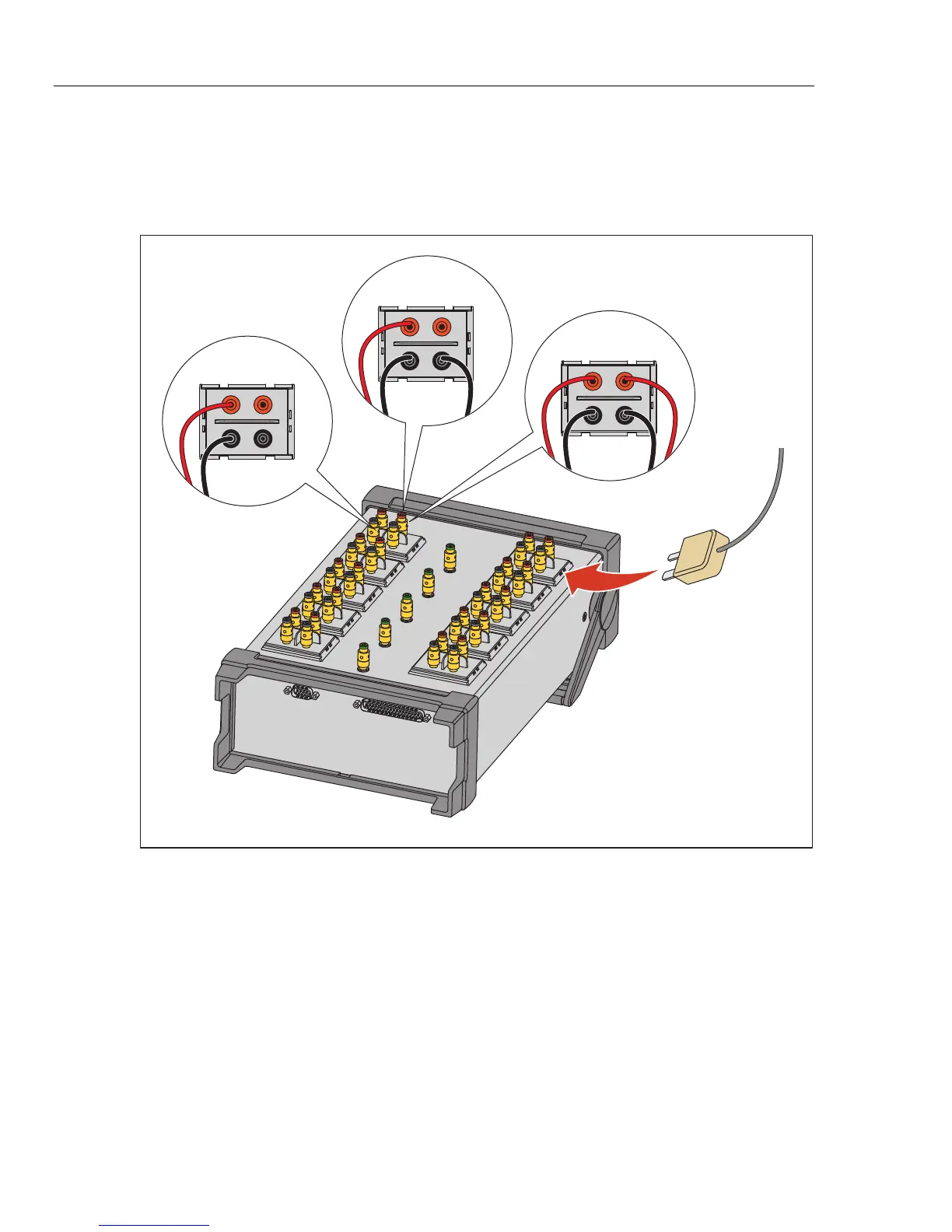

Figure 3-2. 2-Wire, 3-Wire, and 4-Wire Multiplexer Connections
