Input and Channel Configuration
Channel Configuration 3
3-11
01234567 012345
Slot: Channel 101 - 122
Slot: Channel 201 - 222
Rear View
Front View
1586A
T- D AQ PR E
C
1234567 8 123456
Input Module
Terminal Number
Channel: 106
Rear-Panel Slot
Channel 001
hcn026.eps

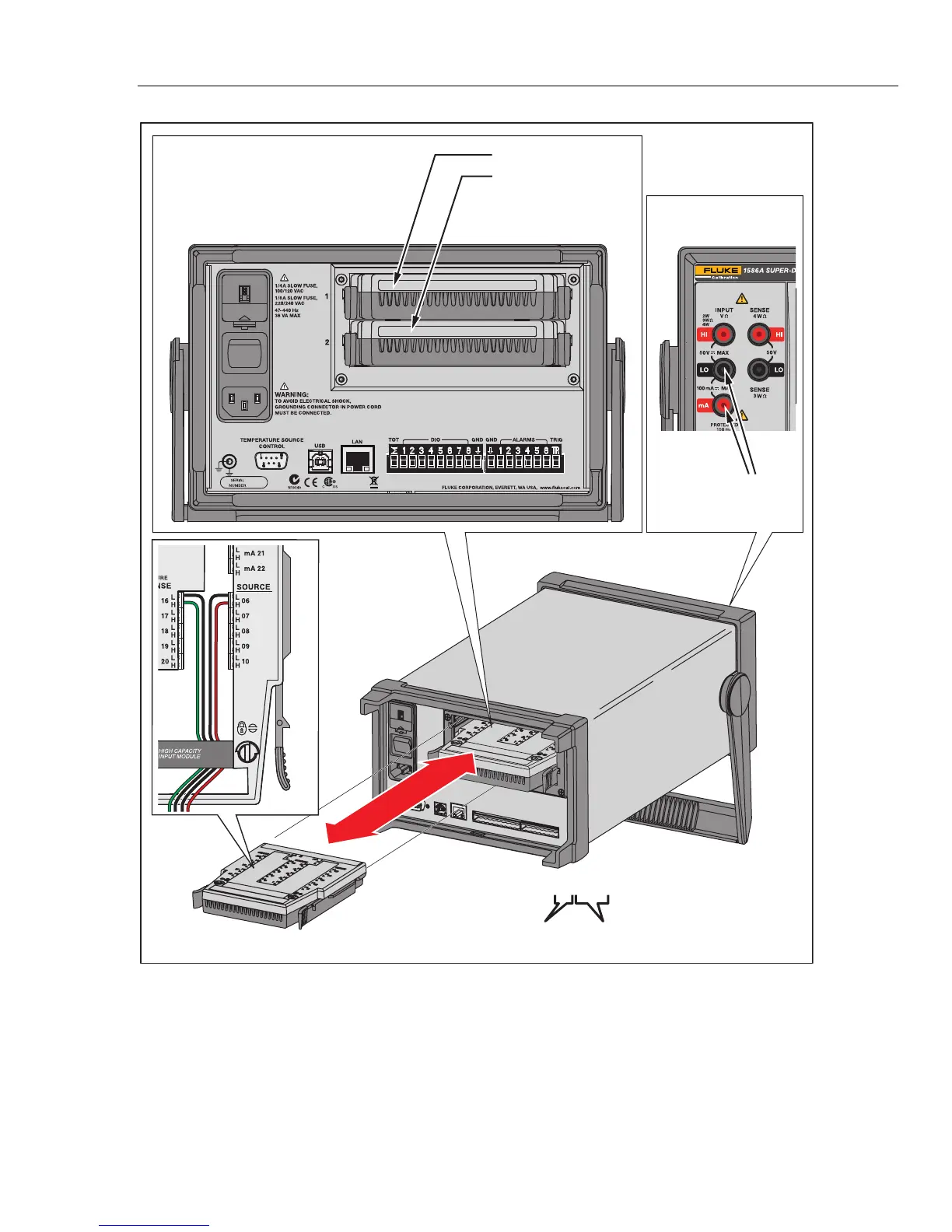

Figure 3-5. Example Channel Assignment
