1586A
Users Manual
3-32
5. Highlight High or Low then push .
6. Use the numeric keypad to input the limit (
Setpoint).
7. To turn on an alarm output:
a. Highlight
Output the then push .
b. Highlight an alarm output to assign to the channel then push .
Terminal
GND
1
2
3
4
5
6
TRIG
Function
Ground Terminal
Alarm Output 1
Alarm Output 2
Alarm Output 3
Alarm Output 4
Alarm Output 5
Alarm Output 6
External Trigger Input
hcn049.eps

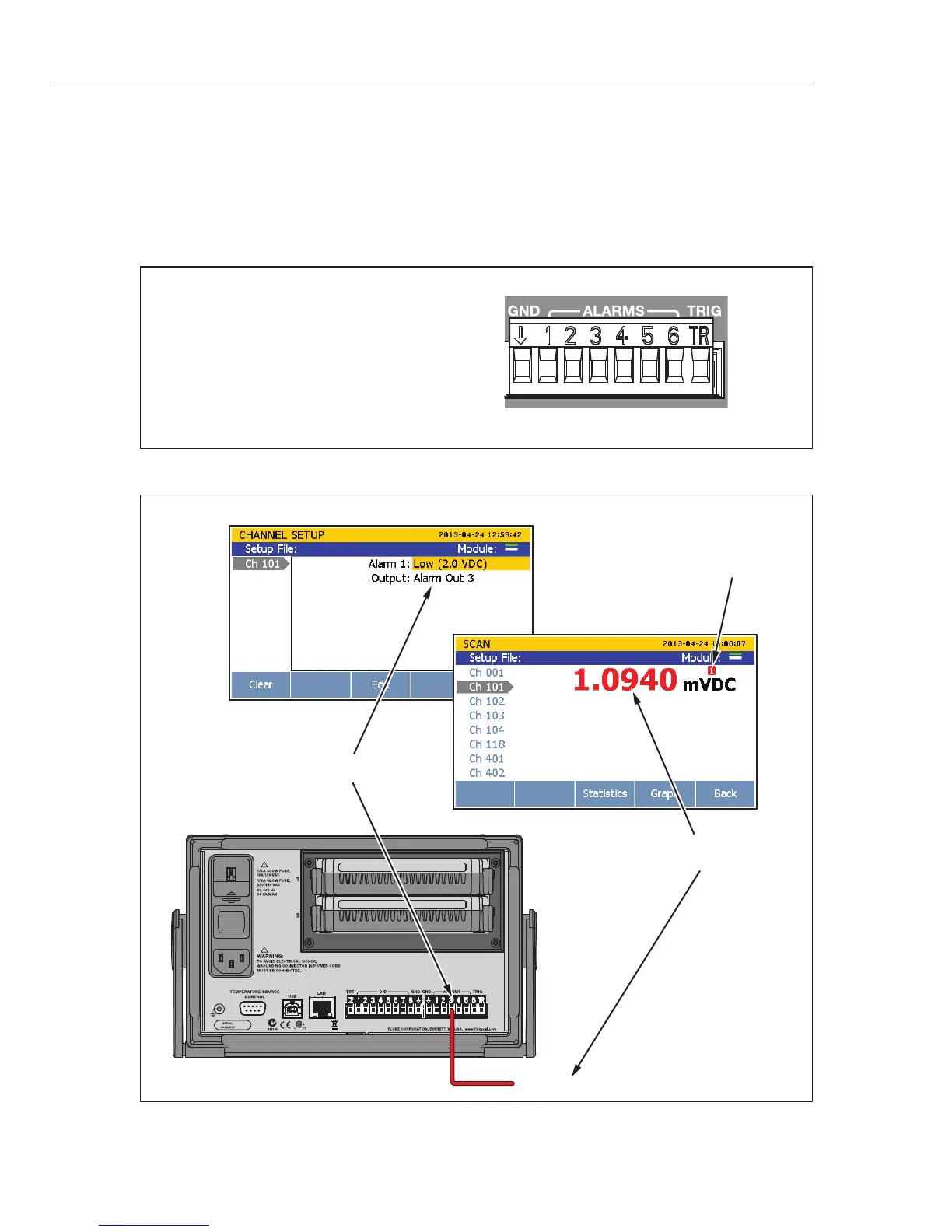

Figure 3-10. Rear-Panel Alarm Outputs
01234567 12345
6
12345678 123456
Alarm Setup
Lower-limit exceeded, alarm
output 3 outputs <0.7 V dc
Monitor Screen
Rear View
Alarm output 3 low limit set to 2 V dc
Alarm Indicator
= Low Condition (<0.7 V dc)
hcn041.eps
Figure 3-11. Alarm Output Example
