Fluke 2638A - Example Channel Assignment

Input and Channel Configuration
Channel Configuration 3
3-9
Slot: Channel 101 - 122
Slot: Channel 201 - 222
Slot: Channel 301 - 322
Channel 001
Rear View
Front View
Input Module
Terminal Number
Channel: 104
Rear-Panel Slot
hce014.eps

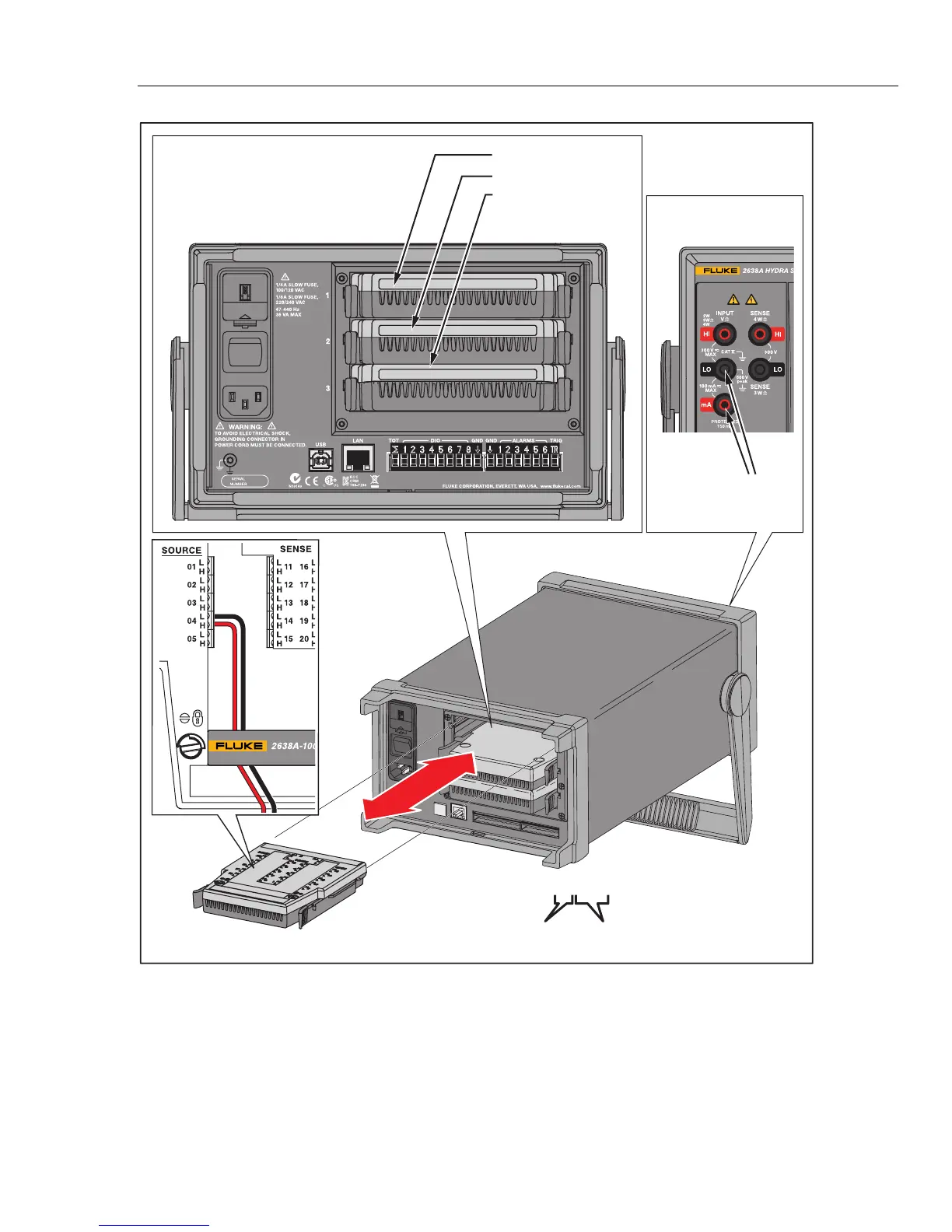

Figure 3-4. Example Channel Assignment
Note
Channels 201 to 222 and 301 to 322 and relay slots 2 and 3 are not
available on 2638A/05.
