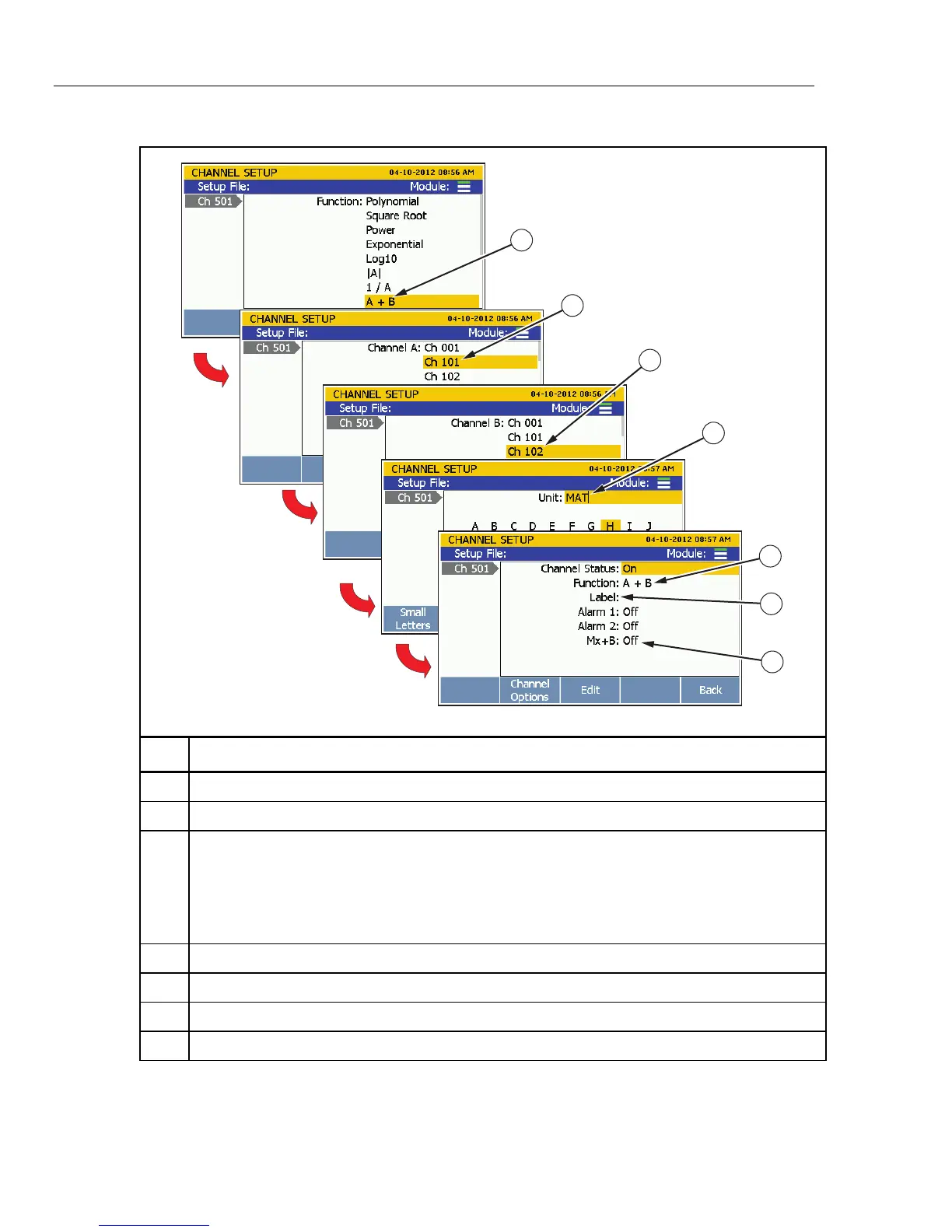

Table 3-12. Math Channel Configuration
1
2
3
4
5
6
7
hce043.eps
Item Function
 Math formula selection.
 Channel selection for the first base channel “A”.

Channel selection for the second base channel “B”.
Note
Only channels “A” and “B” are shown in the example because the sum math formula only
combines two channels. Some formulas have only one source channel while some others allow
more than two source channels.
 Set the unique unit to be associated with the measurement value.
 Input a custom alpha-numeric label to help identify the channel (optional).
 Set an alarm for this channel (optional). See “HI and LO Channel Alarms” on page 3-30.
 Apply Mx+B scaling to the measurement (optional). See “Mx+B Scaling” on page 3-29.
