Fluke 2638A - The Scan Menu

2638A
Users Manual
4-2
hcn038.eps

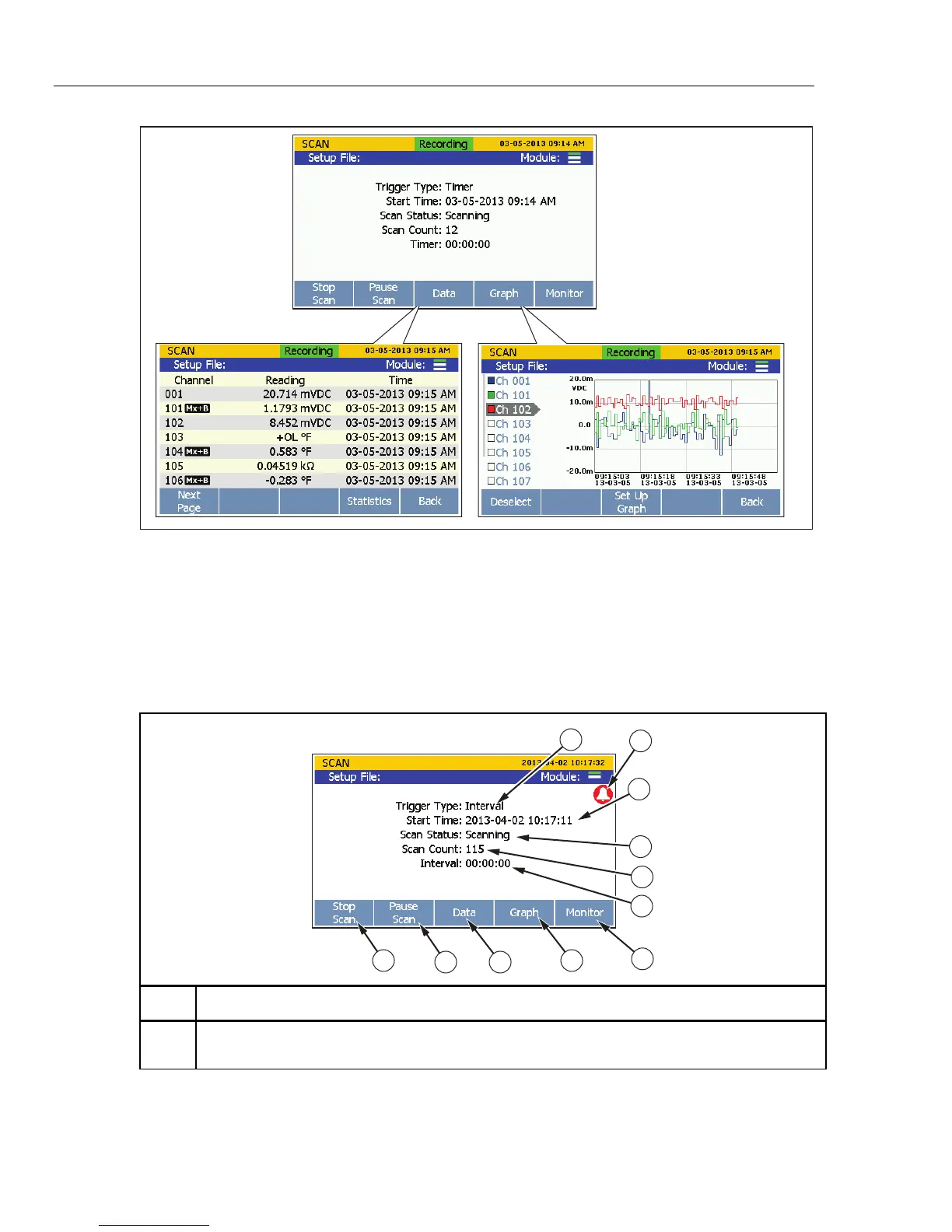

Figure 4-1. Scan Data
The Scan menu lets the user control the scan and view the scan data. The Scan menu also
shows important status indicators to quickly inform the user of the scan status and
progress of the scan. Table 4-1 shows the Scan menu and describes the status indicators
and functions that can be performed from this menu. To open the Scan menu, push 
on the front panel.
Table 4-1. The Scan Menu
1
5
4
3
6
7
8
910
11
2
hce055.e
p
s
Item Function

Shows the type of trigger configured in the Test Setup. The trigger type determines when a scan
starts and stops. See “Trigger Type” on page 4-6.
