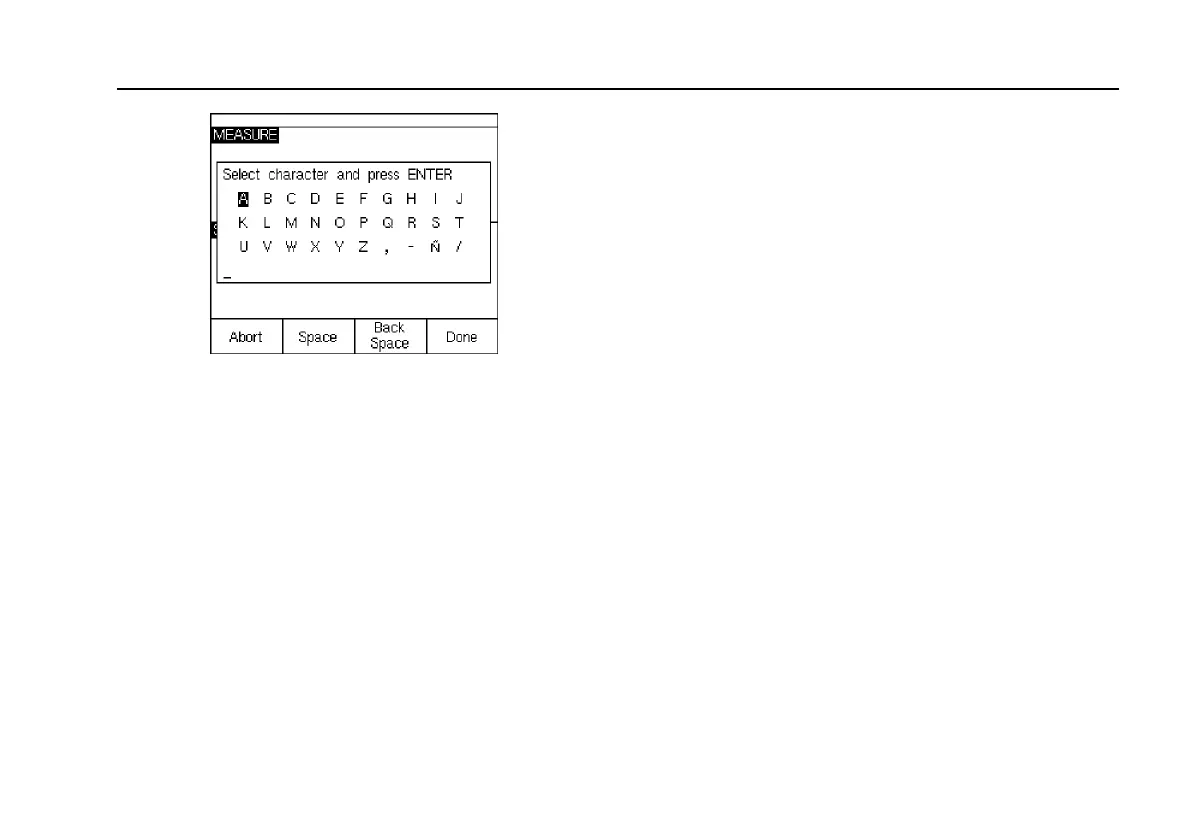

5. The ID string is shown at the bottom of the
boxed area. To erase a character, press the
Back Space softkey. To erase the whole string,
press c.
6. Press u, d, L, or R to select a character, then
press e. Use the numeric keypad if you
want to enter a number.
7. Repeat step 6 until you are satisfied with the ID
string appearing in the window.
8. Press the Done softkey.
9. Press the Done softkey or s to exit s
mode.
Using Measure Mode
NOTE
To achieve best measurement noise and
accuracy performance, do not use the
battery eliminator, and tie all three common
jacks together.
The operating mode (i.e., MEASURE, SOURCE) is
shown in a reverse-video bar on the display. If the
calibrator is not in MEASURE mode, press M until
MEASURE is shown. You must be in MEASURE
mode to change any of the MEASURE parameters.
Measurement Ranges
The calibrator normally changes to the appropriate
measurement range automatically. The lower right
side of the display shows either “Range” or “Auto
Range” depending on the range status. Auto Range
switch points are shown in the Specifications at the
end of this manual. When you press the R key, the
range is locked. Press it again to cycle to and lock on
the next higher range. Press it and hold it for two
seconds to revert to Auto Range.

Fluke 702 Specifications

General

DC Current Range	0 to 24 mA
Accuracy	0.05% of full scale
Pressure Units	inH2O, psi, bar, mBar, kPa, kgcm2, cmH2O
Display	LCD
Loop Power	24 V DC
Operating Temperature	-10 °C to 55 °C
Storage Temperature	-40 °C to 60 °C
Warranty	3 years
