Fluke 8050A - Test Points

TEST POINT
2
3 or CR 12 Cathode
4
5
6
7

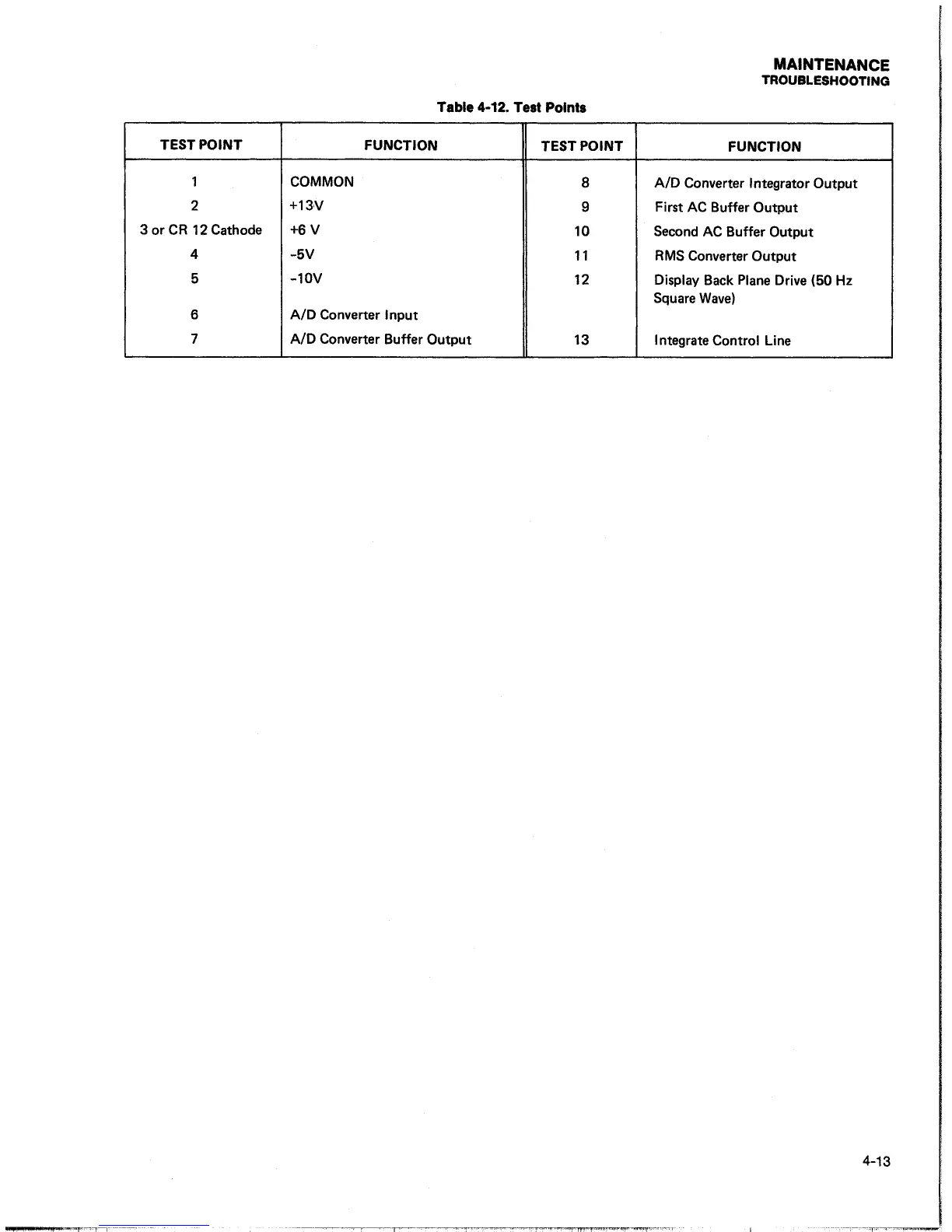

Table 4-12. Test Points
COMMON
+13·V
+6V
-5V
-10V
FUNCTION
A/D Converter Input
A/D Converter Buffer Output
----.---------,,-----~
TEST POINT
8
9
10
11
12
13
MAINTENANCE
TROUBLESHOOTING
FUNCTION
A/D Converter Integrator Output
First AC Buffer Output
Second AC Buffer Output
RMS Converter Output
Display Back Plane Drive (50 Hz
Square
Wave)
Integrate Control Line
4-13
