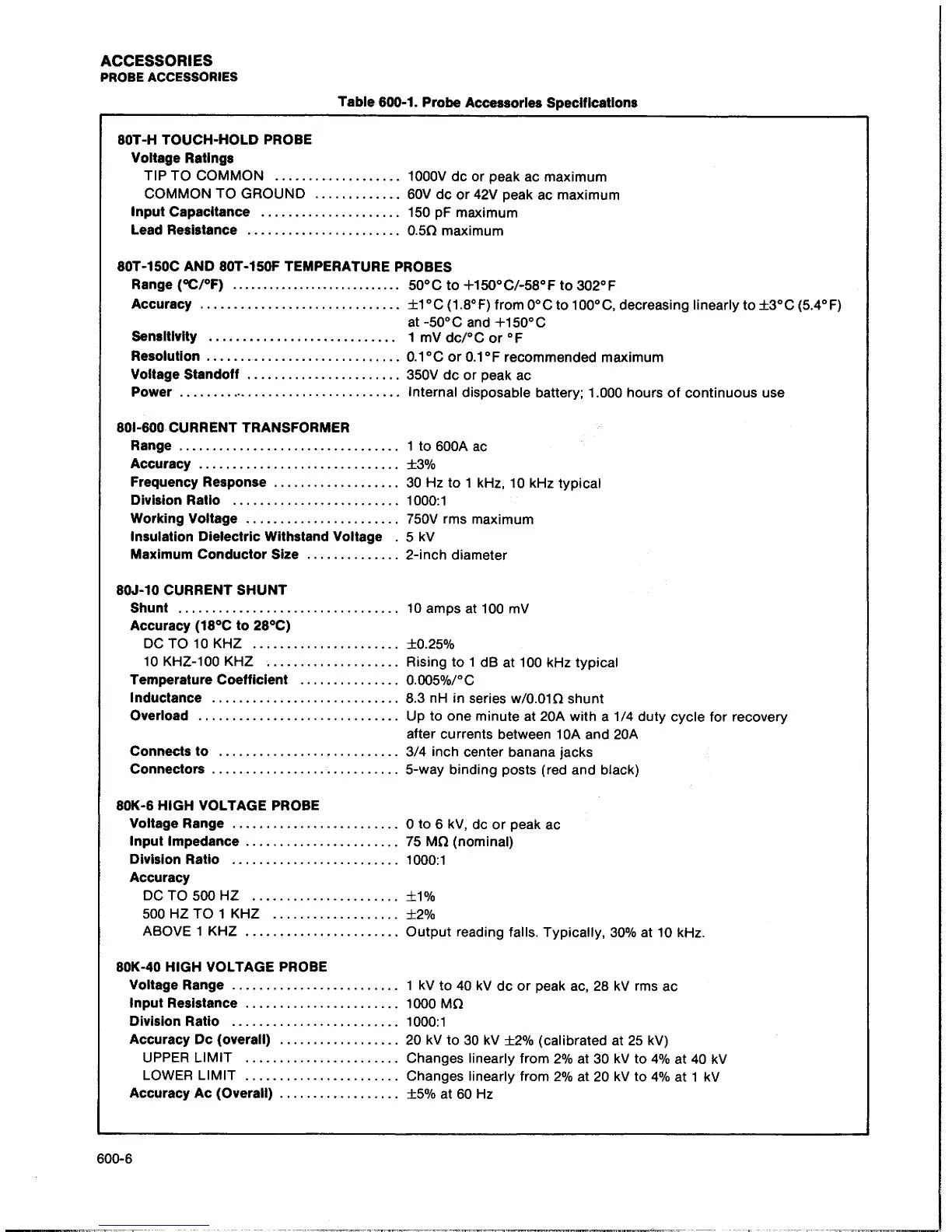

Fluke 8050A - Probe Accessories Specifications

ACCESSORIES
PROBE
ACCESSORIES
80T-H TOUCH-HOLD PROBE
Voltage Ratings
Table
600-1.
Probe
Accessories Specifications
TIP TO COMMON
...................
1000V
de
or
peak ac maximum
COMMON
TO
GROUND
.............
60V
de
or
42V peak ac maximum
Input
Capacitance
.....................
150 pF maximum
Lead Resistance
.......................
0.50
maximum
80T-150C
AND
80T-150F TEMPERATURE
PROBES
Range ("C/°F)
............................
50°C
to
+150°C/-58°F
to
302°F
Accuracy
..............................
±1°C
(1.8°F)
from
0°C
to
100°C,
decreasing
linearly to
±3°C
(5.4°F)
at
-50°C
and
+150°C
Sensitivity . . .
• •
.
•
. . •
.
. . . . . . . . . . . .
•
. . . . 1 mV
dc/°
C
or
°
F
Resolution
.............................
0.1°C
or
0.1°F
recommended
maximum
Voltage Standoff . . . . . . . . . . . . . . . . . . . . . . . 350V de
or
peak ac
Power
..................................
Internal disposable
battery;
1.000
hours
of
continuous use
801-600
CURRENT
TRANSFORMER
Range .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 to 600A ac
Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±3%
Frequency Response
...................
30
Hz to 1 kHz,
10
kHz
typical
Division Ratio
.........................
1000:1
Working
Voltage
.
. . . . . . . . . . . . . . . . . . . . . . 750V rms maximum
Insulation Dielectric
Withstand
Voltage
.
5
kV
Maximum
Conductor
Size
..............
2-inch diameter
SOJ-10
CURRENT
SHUNT
Shunt
.
..
. .
..
. . . . . .
..
. . . . . . . . . . . . . . . . . .
10
amps at
100
mV
Accuracy (18°C
to
28°C)
DC
TO 10 KHZ
.
. . . . . . . . . . . . . . . . . . . . . ±0.25%
10
KHZ-100 KHZ
....................
Rising to 1 dB at 100
kHz typical
Temperature Coefficient
...............
0.005%/°C
Inductance
............................
8.3 nH in series
w/0.010
shunt
Overload
..............................
Up to one minute at 20A with a 1/4 duty cycle for recovery
after currents between 1
QA
and 20A
Connects
to
...........................
3/4 inch center banana jacks
Connectors
............................
5-way binding posts (red and black)
SOK-6
HIGH
VOLTAGE
PROBE
Voltage Range
.........................
0
to 6
kV,
de
or
peak ac
Input
Impedance
.......................
75
MO (nominal)
Division Ratio
.........................
1000:1
Accuracy
DC
TO 500 HZ
......................
±1%
500 HZ
TO
1
KHZ
. . . . . . . . . . . . . . . . . . . ±2%
ABOVE
1
KHZ
.......................
Output
reading
falls.
Typically,
30%
at
10
kHz.
SOK-40
HIGH VOLTAGE PROBE
Voltage Range . . . . . . . . . . . . . . . . . . . . . . . . . 1
kV
to 40
kV
de
or
peak ac, 28
kV
rms ac
Input
Resistance
.......................
1000 MO
Division Ratio
.........................
1000:1
Accuracy De
(overall)
..................
20
kV
to 30
kV
±2%
(calibrated at
25
kV)
UPPER LIMIT
.......................
Changes
linearly from
2%
at 30
kV
to
4%
at
40
kV
LOWER LIMIT
.......................
Changes
linearly
from
2%
at
20
kV
to
4%
at 1
kV
Accuracy
Ac
(Overall)
.
. . . . . . . . . . . . . . . . . ±5% at
60
Hz
600-6
