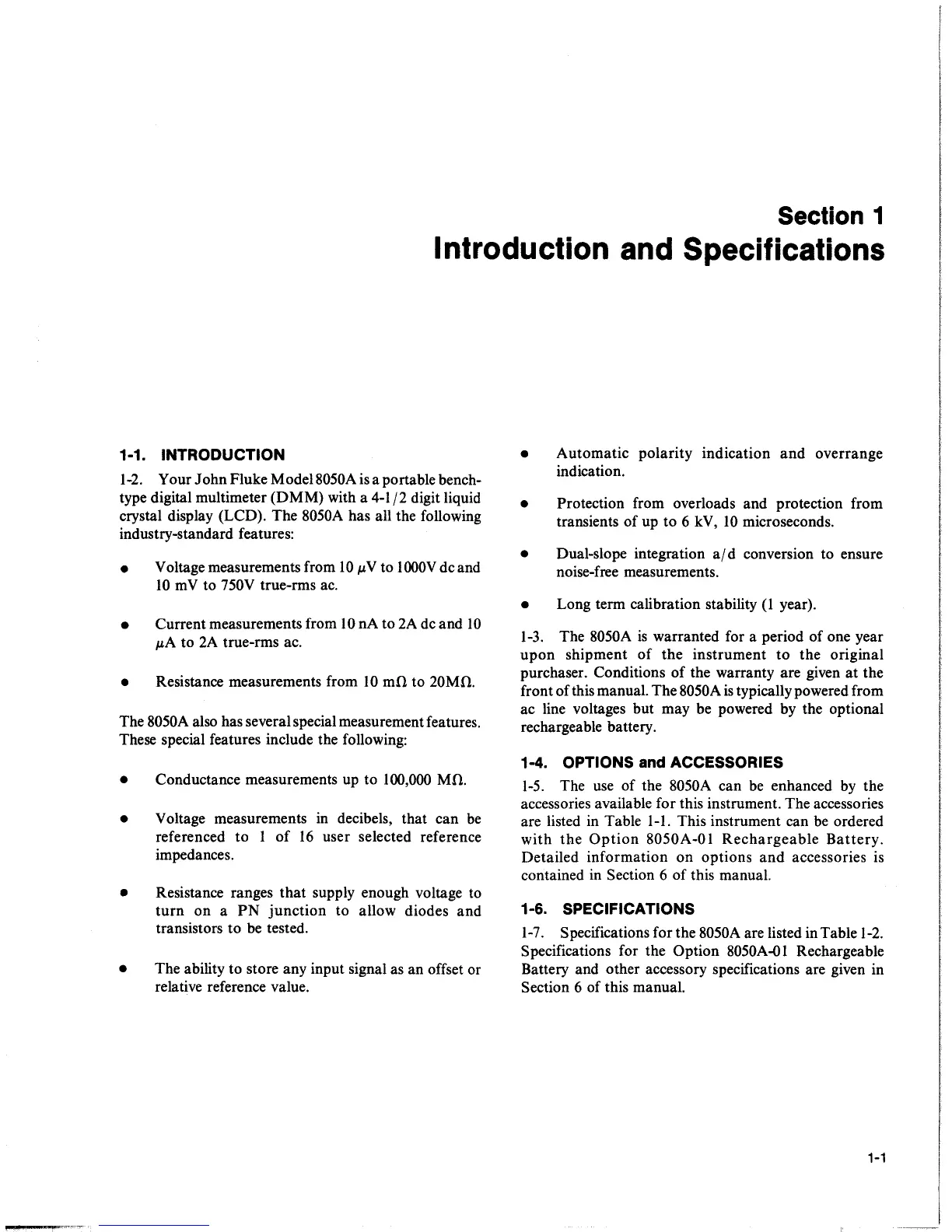

Section 1
Introduction and Specifications
1-1. INTRODUCTION
1-2.
Your John Fluke Model 8050A is a portable bench-
type digital multimeter
(D
MM) with a 4-1/2 digit liquid
crystal display (LCD). The 8050A has all the following
industry-standard features:
•
Voltage measurements from
10
µV
to
IOOOV
de and
IO
mV
to 750V true-rms
ac.
• Current measurements from I 0 nA to
2A
de and I 0
µA
to
2A
true-rms ac.
• Resistance measurements from
IO
mil
to 20MO.
The 8050A also has several special measurement features.
These special features include the following:
•
•
•
•
Conductance measurements up to 100,000 MO .
Voltage measurements
in
decibels, that can be
referenced to I
of
16
user selected reference
impedances.
Resistance ranges that supply enough voltage to
turn
on a
PN
junction
to allow diodes
and
transistors to be tested.
The ability to store any input signal as an offset or
relative reference value.
•
•
•
Automatic polarity indication
and
overrange
indication.
Protection from overloads and protection from
transients
of
up to 6 kV,
IO
microseconds.
Dual-slope integration
a/
d conversion to ensure
noise-free measurements .
• Long term calibration stability (I year).
1-3.
The 8050A
is
warranted for a period of one year
upon
shipment
of
the instrument to the original
purchaser. Conditions
of
the warranty are given
at
the
front
of
this manual. The 8050A
is
typically powered from
ac line voltages but may be powered by the optional
rechargeable battery.
1-4. OPTIONS
and
ACCESSORIES
l-5. The use
of
the 8050A can
be
enhanced
by
the
accessories available for this instrument. The accessories
are listed in Table
1-1.
This instrument can
be
ordered
with
the
Option
8050A-O l
Rechargeable
Battery.
Detailed information on options
and
accessories is
contained
in
Section 6
of
this manual.
1-6. SPECIFICATIONS
1-
7.
Specifications for the 8050A are listed in Table
1-2.
Specifications for the Option
8050A-Ol
Rechargeable
Battery and other accessory specifications are given in
Section 6
of
this manual.
1-1
