Fluke QED 6 - Measuring Charge Time (Models M and H)

Operation
Measuring Charge Time (Models M and H)
2
2-21
4. Set the range switch appropriately, as follows:
• Select the 1000 joule high range for defibrillator outputs over 100
joules or for an unknown defibrillator output power.
• Select the 100 joule low range for outputs under 100 joules.
5. Simultaneously press the two defibrillator paddles onto the contact
electrode plates on the front of the Analyzer.
6. Initiate a discharge from the defibrillator.
7. Observe the LCD on the Analyzer and record the defibrillator voltage and
current.
Note
The LCD continues to display the reading until the next defibrillator
pulse is fired.
Measuring Charge Time (Models M and H)
To measure the charge time of Models M and H:
1. From Main Menu 1, press more to access Main Menu 2. The following
displays:

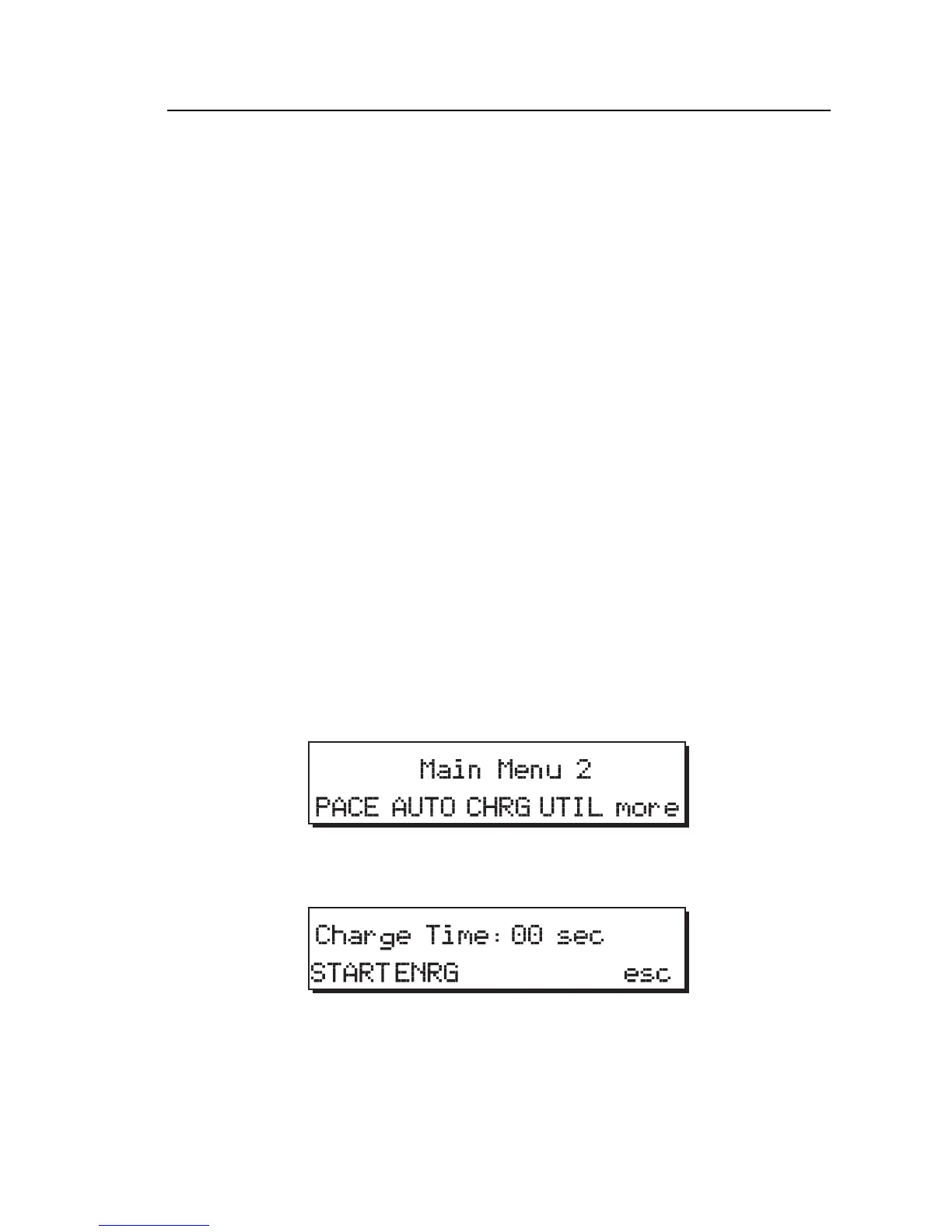

fcf026.eps
2. From Main Menu 2, press the CHRG softkey to display the following:
fcf027.eps
3. Set the range switch appropriately, as follows:
• Select the 1000 joule high range for defibrillator outputs over 100
joules or for an unknown defibrillator output power.
• Select the 100 joule low range for outputs under 100 joules.
