Flymaster GPS M User Manual v. 1.0
Compass
The Compass element show all the data provided by the GPS M built in magnetic compass.
The compass includes an red top arrow which is always aligned with the GPS M . If the
GPS M is turned the cardinal points will also turn in order the arrow tip points the right
cardinal point.

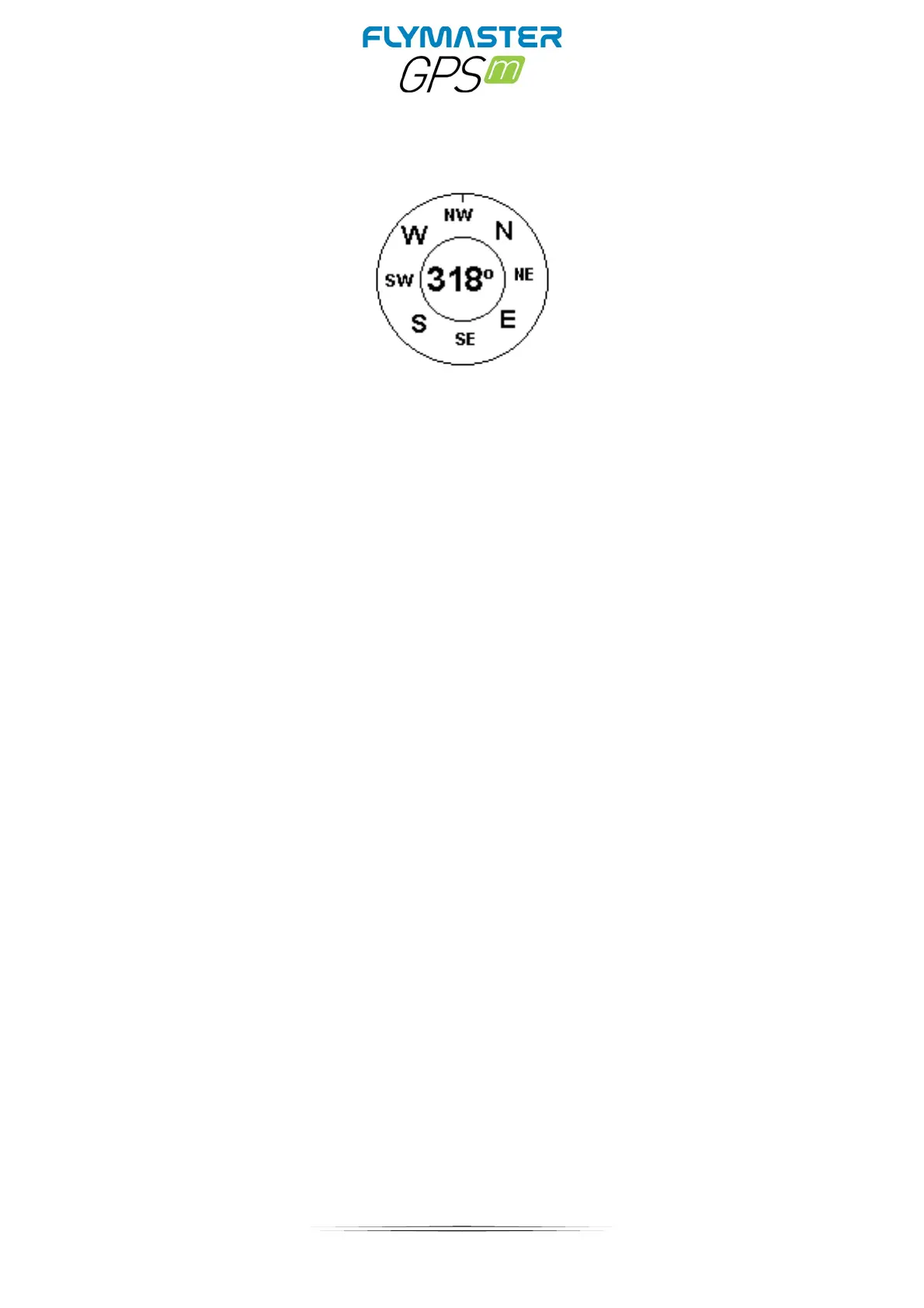

In the example of Figure the GPS M is pointing NW. The direction is represented by the
arrow, and also indicated numerical (318°degrees).
