5
1 Function Keys
Eight keys select the device’s operating mode, recall submenus and access system settings.
See page 10 for additional information.
• Headphone allows source selection for the local headphone output
• Sum switches the selection mode for multiple sources from inter-cancel to summed;
applies for both headphones and speakers
• Spill allows a source to be expanded to show its individual component channels
• Mode changes the current mode of the device. Options are: Monitors, Mic Pre and Global
Settings
• Mute allows the active speaker channels the be muted or un-muted individually
• Solo solos or un-solos individual speaker channels
• Outputs accesses the speaker output configuration menu
• A/B toggles between two predefined output configurations
2 Screen 1
TFT screen for function keys 1-4, with 12 soft-buttons for controlling
audio inputs, talkback selection and device settings. See page 10.
3 Screen 2
TFT screen for function keys 5-8, with 12 soft-buttons for managing
audio outputs and speaker configuration. See page 12.
4 Built-In Talkback Mic
Audio input to the talkback matrix. Alternatively, an external balanced mic can be connected
to the rear panel XLR. See page 8.

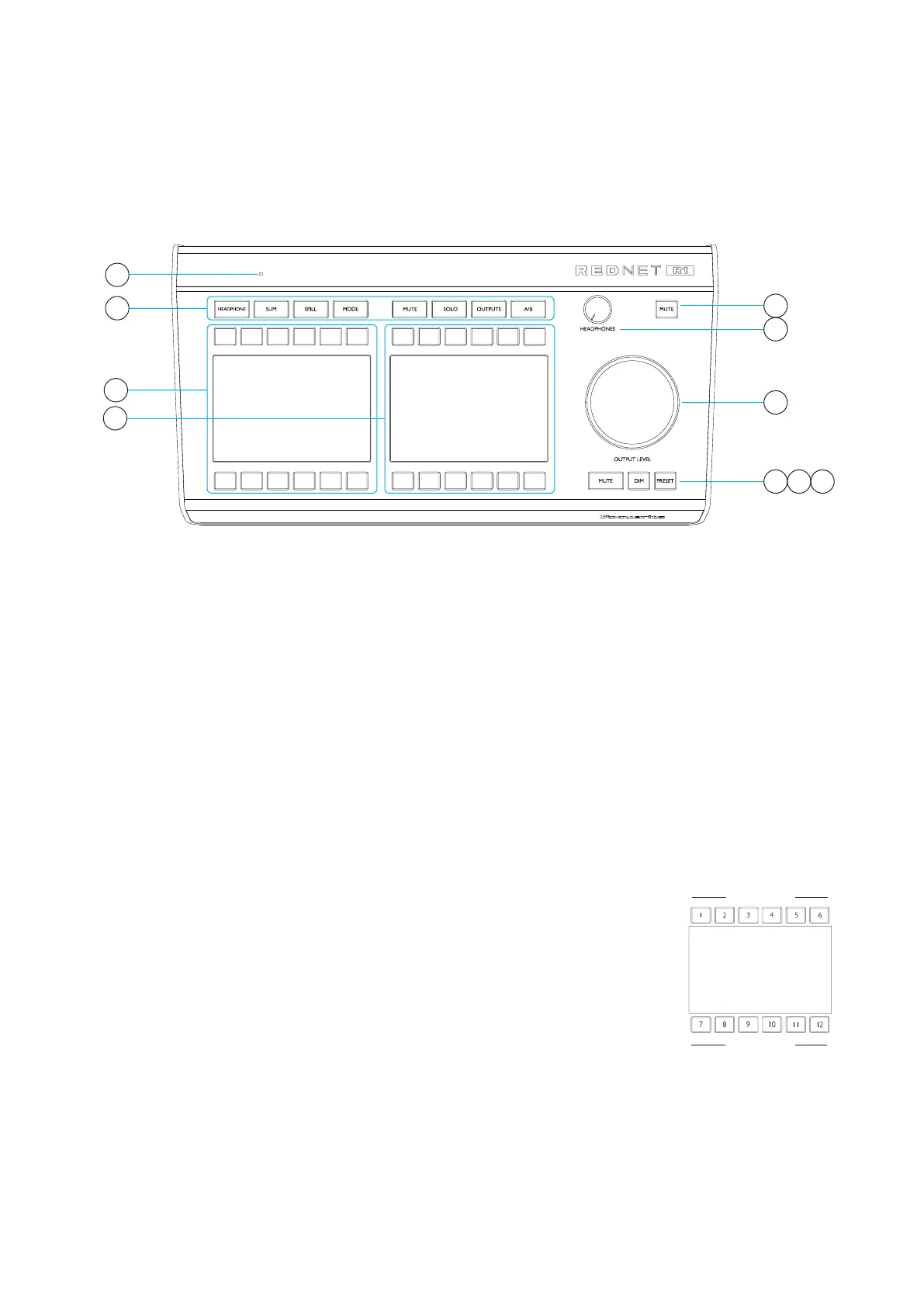

REDNET R1 CONTROLS AND CONNECTIONS
Top Panel
1
2
3
4
5
6
7
8 9
10
TFT
Soft-buttons
Soft-buttons
