7
To store a preset level:
• Press the Preset switch

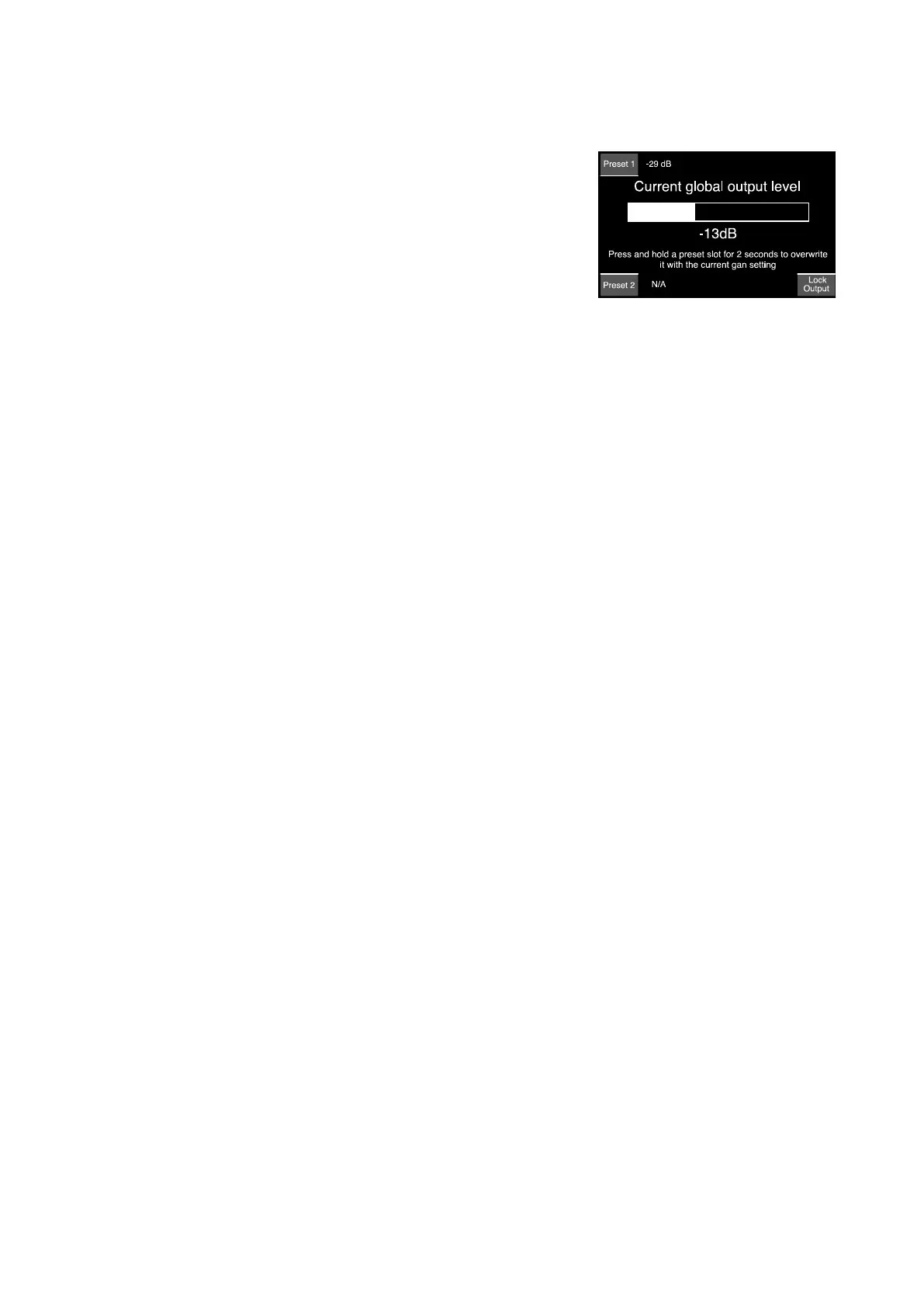

• Screen 2 displays current level and the stored values
for presets 1 & 2. N/A indicates that a preset value has not
previously been stored
• Rotate the Output Encoder to obtain the new required
monitor level
• Press-and-hold either Preset 1 or Preset 2 for two
seconds to assign the new value
To activate the preset value:
• Press the required Preset button
°
The Preset flag will illuminate indicating that the monitors are now set to that value
°
The Lock Output flag will illuminate to show that the Output Encoder is locked
°
Preset switch will change to red
To unlock or change preset:
• Unlock by pressing Lock Output (soft-button 12) which disengages the Preset but retains
the current level
To exit the menu select one of the highlighted switches (Preset will take you back to the previous
page).
Preset Switch . . .
To Next Page
