Folger Tech FT-5 - Assemble the Frame

FT-5 User Manual Page 17

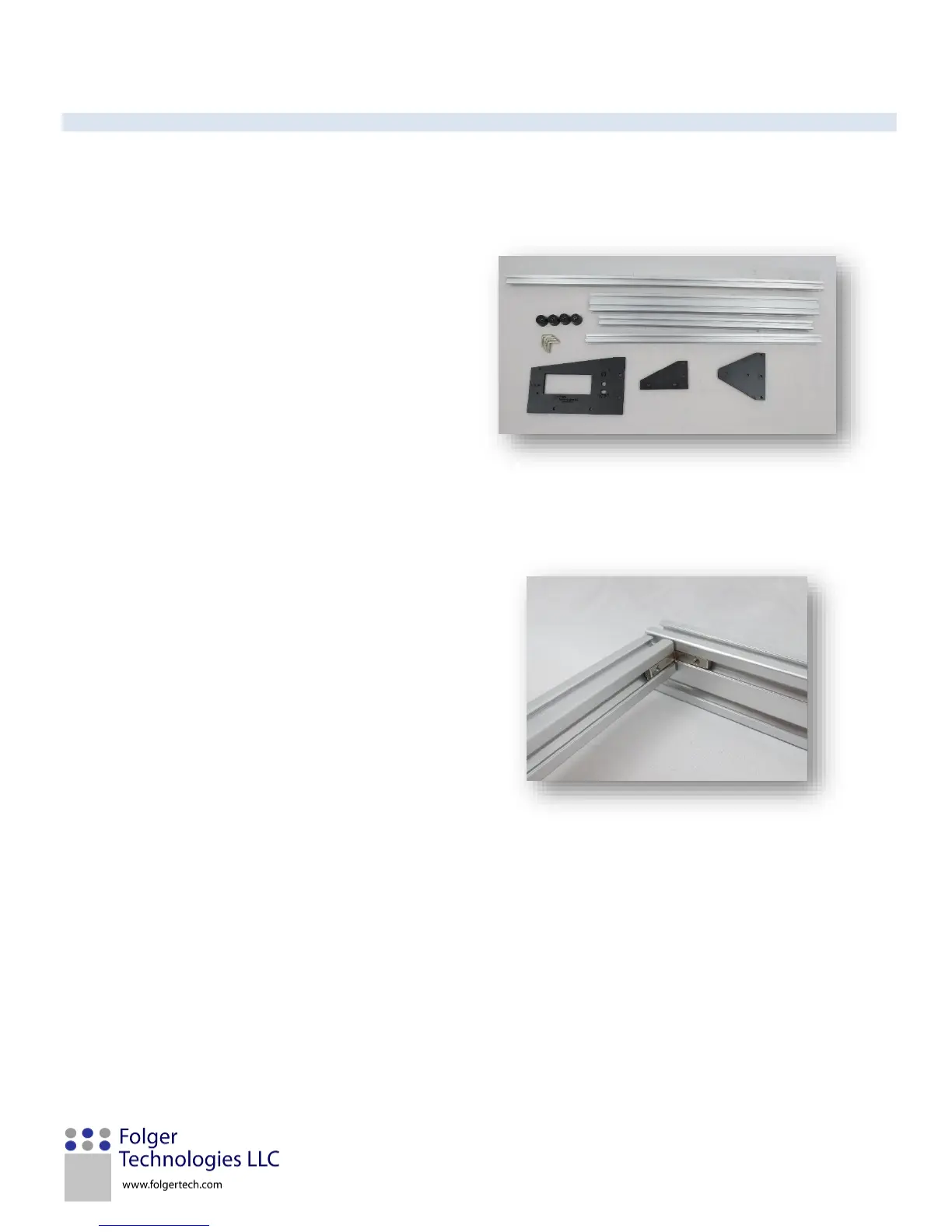

1) ASSEMBLE THE FRAME
In this section, the frame of the FT-5 printer will be assembled.
You will need:
Item ID
Quantity
Description
1
4
700mm 2020 Beam
4
2
500mm 2040 Beam
2
6
500mm 2020 Beam
3
4
460mm 2020 Beam
12
4
Rubber Feet
N
4
L Bracket
FT25
1
LCD Panel
FT1
13
Corner (4 Bolt)
FT2
8
Corner (5 Bolt)
Z
96
M5x10mm Screw
Y
96
M5 T-nut
AH
8
M4 Set Screw
1. Place the 500mm 2040 beam down on the
table (standing up). Insert the L bracket so it
slides into the upper slot. Insert a 500mm
2020 beam into the other end of the L bracket.
Insert two M4 Set screws into the L bracket
and lock the corner in place.
