Folger Tech FT-5 - Endstops and Belts

FT-5 User Manual Page 43
10) ENDSTOP S AND BELTS
In this section, the GT2 belts will be mounted
You will need:
Item ID
Quantity
Description
14
2
20T 5mm Bore Pulley
17
2
Idler Pulley
31
1 meter
Cable Chain
A
7
M3 Nylock
G
5
M3x12mm Screw
I
3
M3x20mm Screw
Z
9
M5x10
Y
9
M5 T-nut
AC
6
Zip Ties
18
4 meter
GT2 Belt
FT3
1
Idler (4 Bolts Right)
FT6
1
Y endstop Mount
FT26
1
Idler (4 Bolts Left)

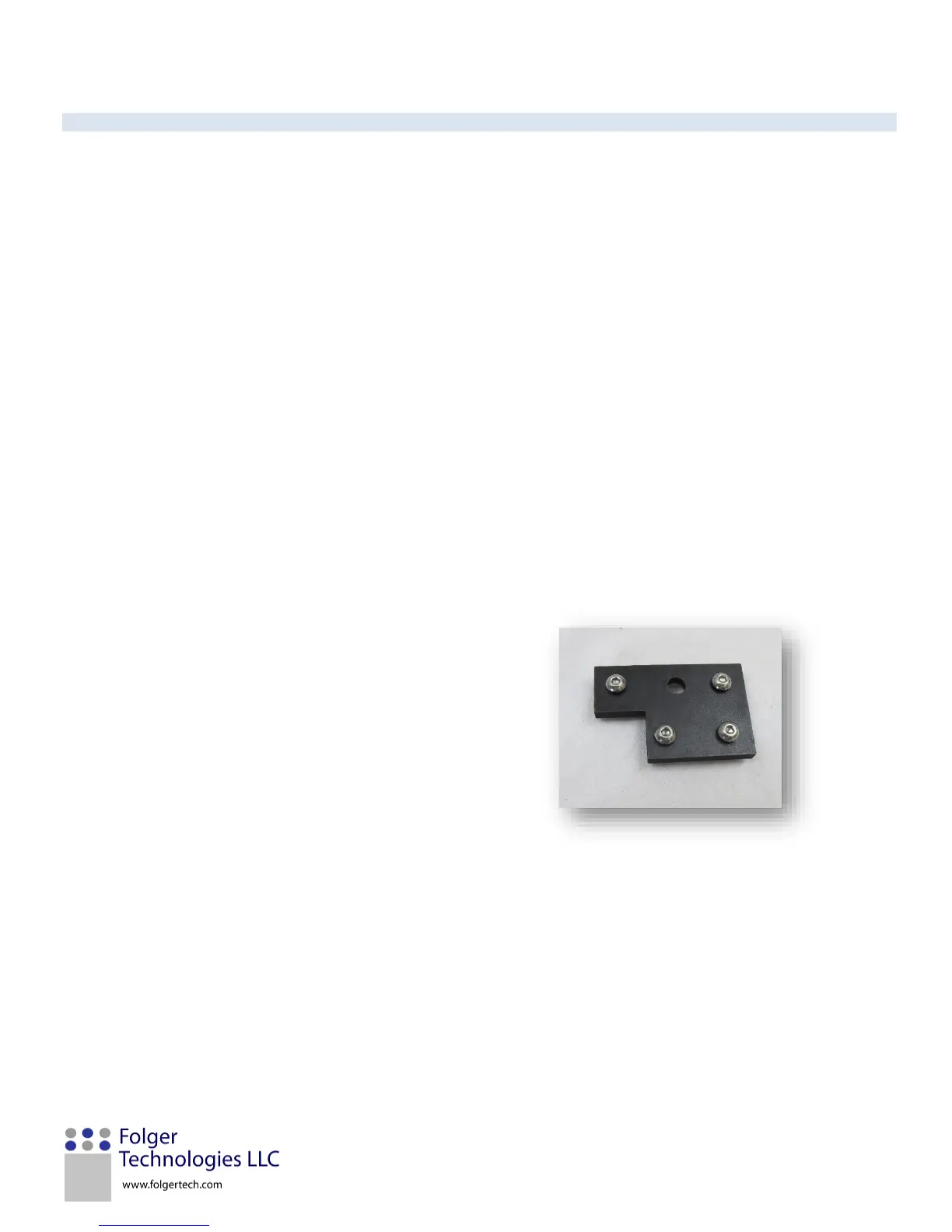

18. Take FT3 and insert four M5x10mm screws and
finish them off using four M5 T-nuts. Repeat
this for the other FT26. They should be mirror
of each other.
