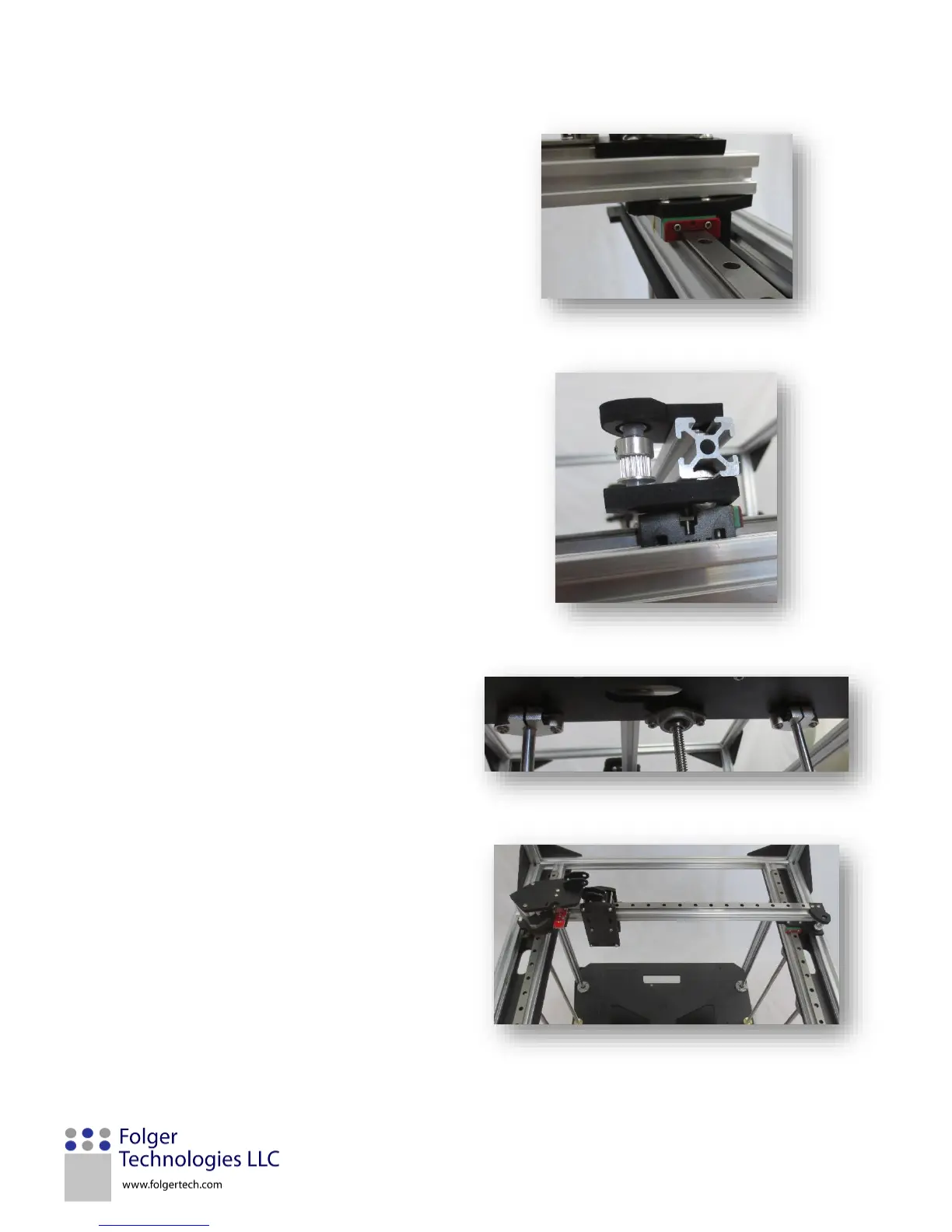

14. Take the gantry assembly and place it into the
fame on top of the two upper panels. Clip the
kapton tape off each rail. You will need to
adjust the position of the slides to get it to fit.
15. You may need to adjust the gap between each
rail. Loosen the two M5 screws on either the X
motor mount or the idler.
16. When the two 2020 beams are seated on all of
the T-nuts, tighten the T-nuts and lock them in
place.
17. Make sure the gantry moves smoothly. You
may need to adjust the Y rails on the 2020
beams to make sure they are parallel to each
other.
