Folger Tech FT-5 - Gantry Assembly

FT-5 User Manual Page 33

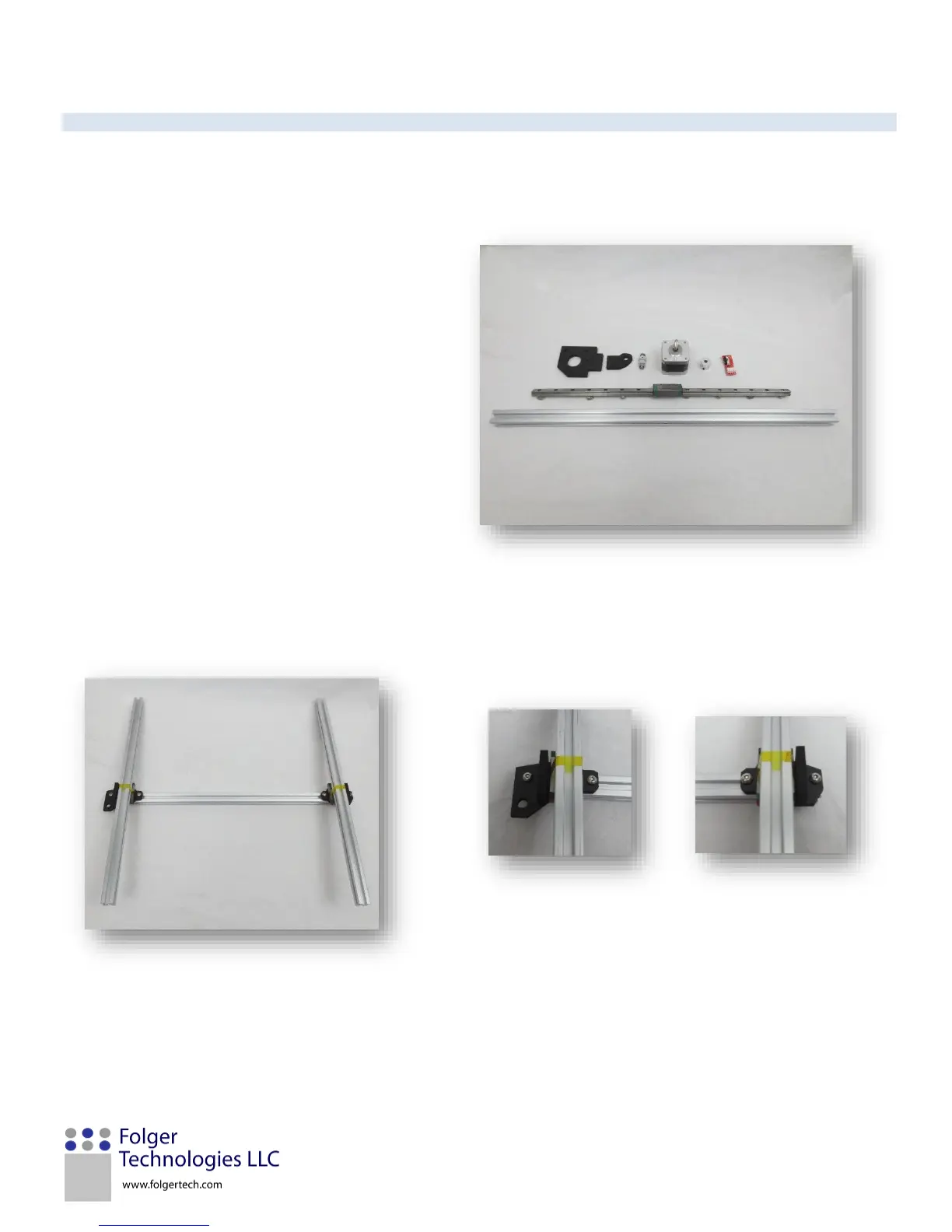

8) GANTRY ASSEMBLY
In this section, the extruder will be assembled.
You will need:
Item ID
Quantity
Description
8
1
Medium Motor
14
1
20T 5mm Bore Pulley
17
1
Idler Pulley
37
1
Endstop
2
1
500mm 2020 Beam
1
Slider Rail (Phase 7)
F
5
M3x10mm Screw
H
2
M3x16mm Screw
B
1
M3 T-nut
A
1
M3 Nylock
Z
4
M5x10mm Screw
Y
4
M5 T-nut
FT8
1
Motor/Right/Middle
FT4
1
Idler (2 Bolt)
1. Lay the 500mm rail flat on the table. The Y belt
should be on the outside.
2. Tighten the M5 screws to lock them onto the
500mm beam. The ends should be flush with
the laser cut parts. This will be adjusted later
to fit into the frame.
