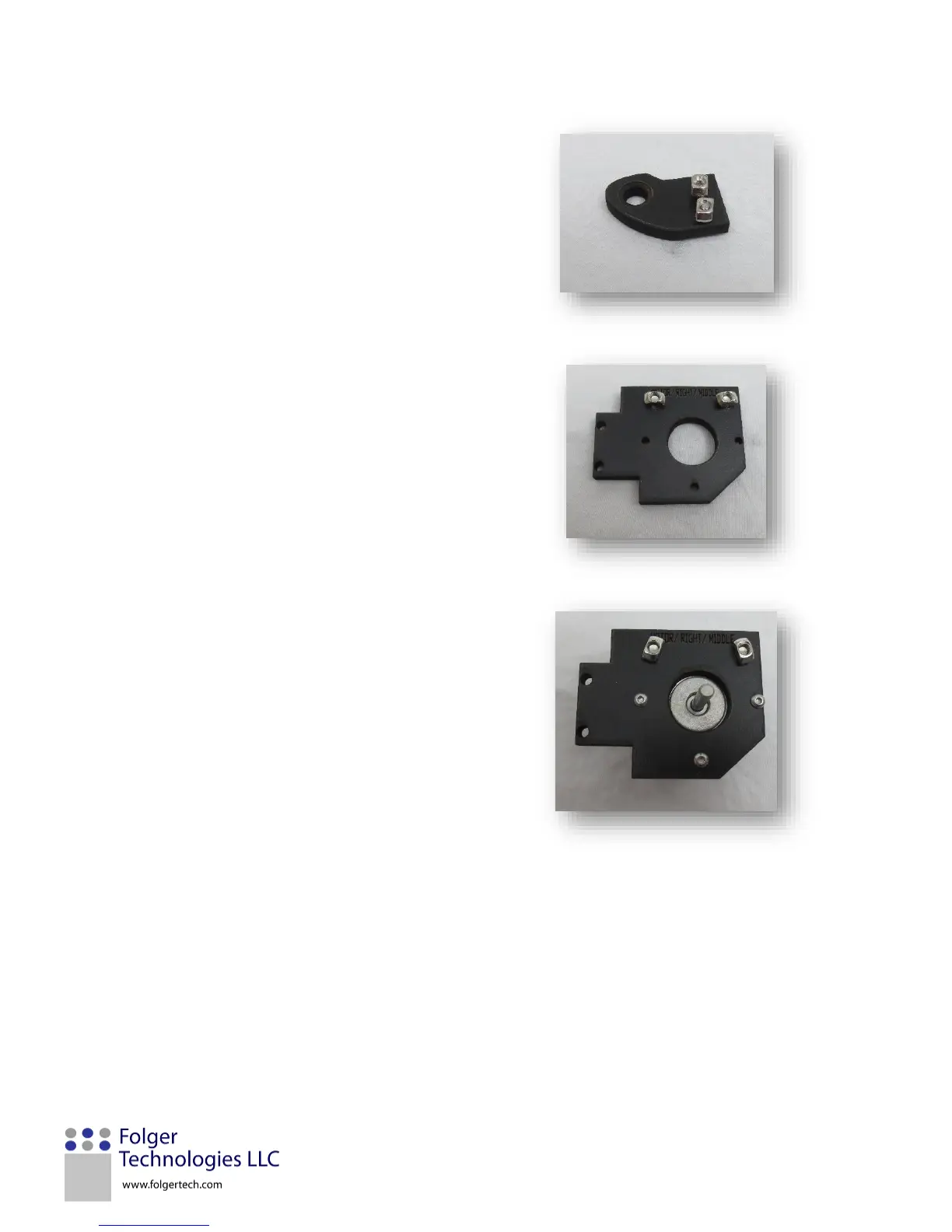

3. Take the FT4 Idler (2 bolt) and insert two
M3x10mm screws through and finish them off
with two M3 T-nuts. Note: The countersunk
side of the hole should be on the same side as
the T-nuts.
4. Take the motor/right/middle and insert two
M5x10mm screws through and finish them off
with two M5 T-nuts. The lettering should be
on the same side as the T-nuts.
5. Place the stepper motor under the
motor/right/middle. Use three M3x10mm
screws to lock the motor in place.
