2) ASSEMBLE THE BASE PLATE
In this section, base panel will be assembled.
You will need:
Item ID
Quantity
Description
8
2
Medium Motor
9
4
SHF8
10
2
KPL8
21
1
Fan (Extruder Sub Kit)
FT23
1
Bottom Panel
A
4
M3 Nylock
C
8
M3 Washer
F
8
M3x10mm Screw
I
4
M3x20mm Screw
S
12
M4 Nylock
V
4
M4x16mm Screw
W
8
M4x20mm Screw

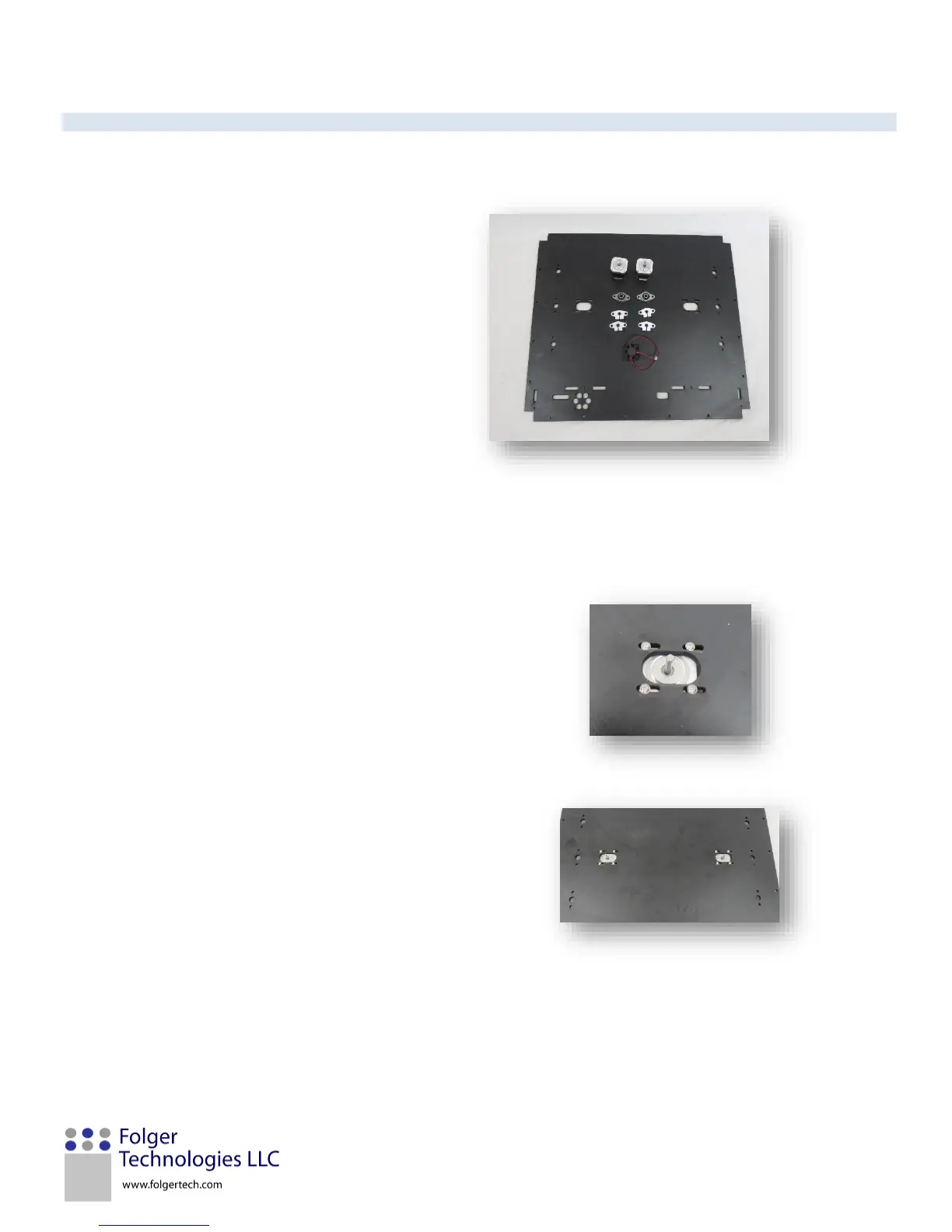

1. Insert the stepper motor through one of the
two stepper mounting holes on the Bottom
Panel (the top side has the fan hole in the lower
left). Secure the motor in place using four
M3x10mm screws and four M3 washers. The
motor wire connector should point towards the
flower fan opening.
2. Repeat the last step for the second stepper
motor.
