Folger Tech FT-5 - Hotend Assembly

FT-5 User Manual Page 37
9) HOTEND

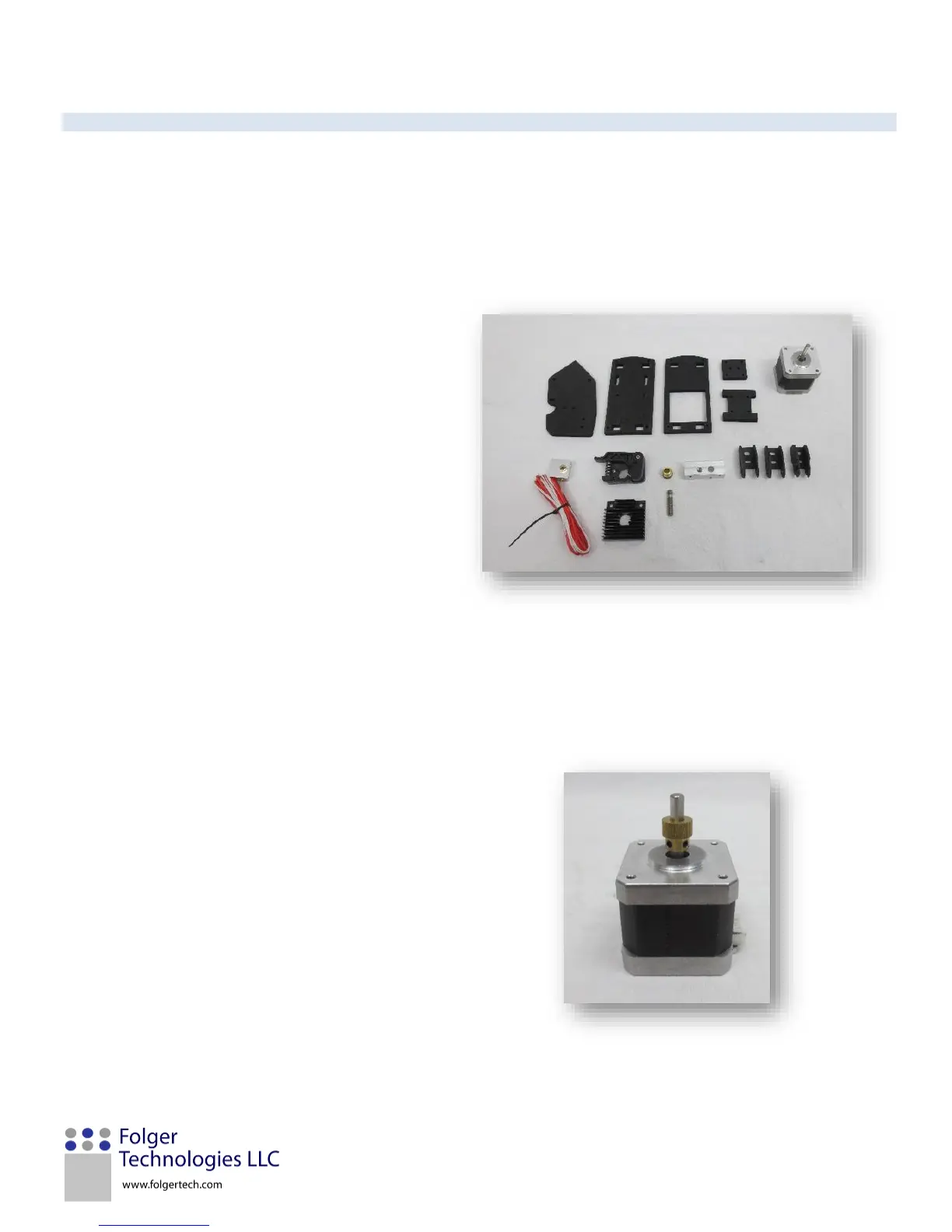

In this section, the remaining mechanical components will be mounted to the printer.
You will need:
Item ID
Quantity
Description
8
1
Medium Motor
24
1
3D Hotend
23
1
M6 PTFE Tube
22
1
Al Upper Block
20
1
Heat Sink Fin
19
1
MK9
32
2
Female Cable Chain Ends
33
1
Male Cable Chain Ends
A
10
M3 Nylock
G
6
M3x12mm Screw
H
4
M3x16mm Screw
K
6
M3x40mm Screw
L
4
M3x45mm Screw
FT9
1
Motor/Right/Top
FT11
1
Extruder Front Plate
FT12
1
Extruder Back Plate
FT27
1
Extruder (H)
FT13
1
Extruder Chain Mount
FT14
1
Extruder (H no holes)
1. Take the stepper motor and slide the brass
drive gear onto the shaft of the motor. Leave a
1 mm gap between the stepper motor and the
drive gear. Tighten the set screws on the drive
gear.
