Folger Tech FT-5 - Mounting Bed

FT-5 User Manual Page 27
6) MOUNTING BED
In this section, the bed plate will be mounted to the frame.
You will need:
Item ID
Quantity
Description
1
Bed Plate (phase 5)
6
4
500mm M8 PCR
7
2
500mm M8 Leadscrew
15
2
20T 8mm Bore Pulley
14
2
20T 5mm Bore Pulley
16
2
GT2 188 Belt Loop

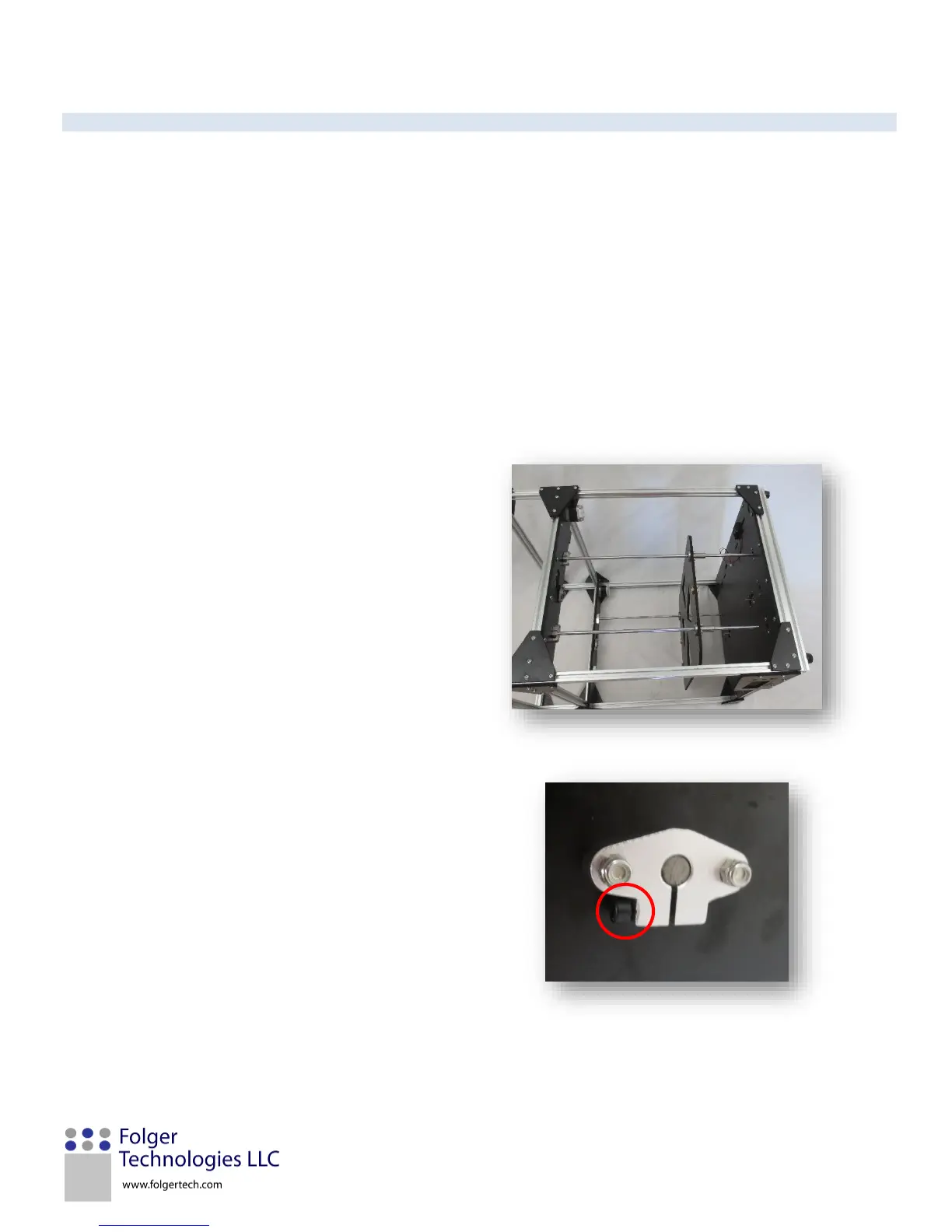

1. Insert the four M8 PCR through the SHF8 on
the bottom of the frame and through the
LM8FLUU on the bed.
2. Slide the M8 PCR all the way through until the
bottom of the rod is flush with the SHF8 on the
bottom panel. The top of the chrome rod
should slide into the upper SHF8. Tighten the
screw on the SHF8 to lock the chrome rod in
place. Repeat this for the other three M8 PCR.
