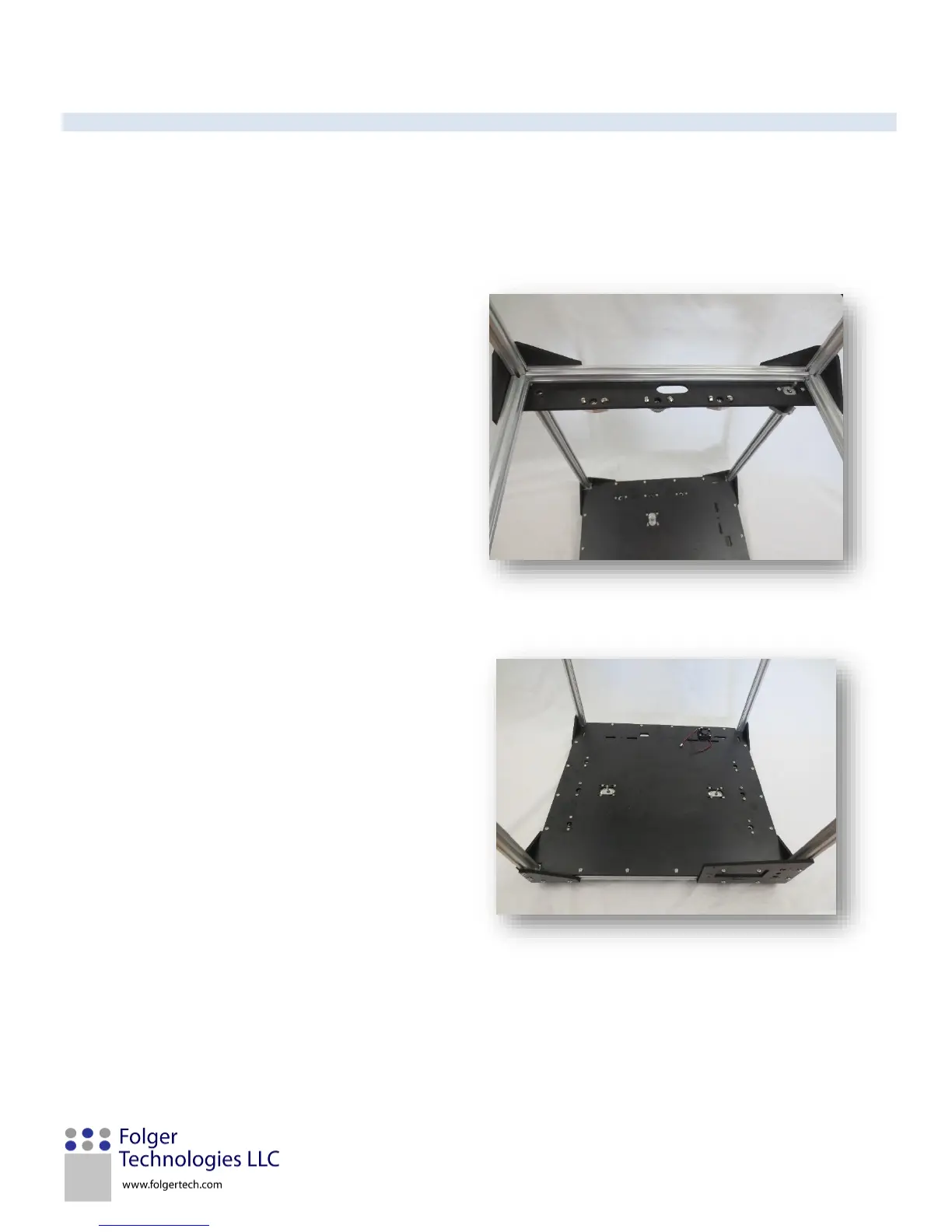

4) INSTALL BASE AND TOP PLATE
In this section, the base panel and upper panels will be mounted to the frame
You will need:
1. Flip the machine with the top on the table.
Insert the left Upper Panel (FT18) under the
center of the frame. All of the outside T-nuts
should line up and lock in place.
2. Repeat step 2 on right Upper Panel (FT17)
3. Flip the machine back over and with the LCD
corner facing forward, slide the base plate
inside the frame and lay it down on the
bottom. The 40mm fan should be in the back.
Line up all the T-nuts and lock them into place.
To Next Page
