Folger Tech FT-5 - Assemble Y Gantry Rails

FT-5 User Manual Page 30

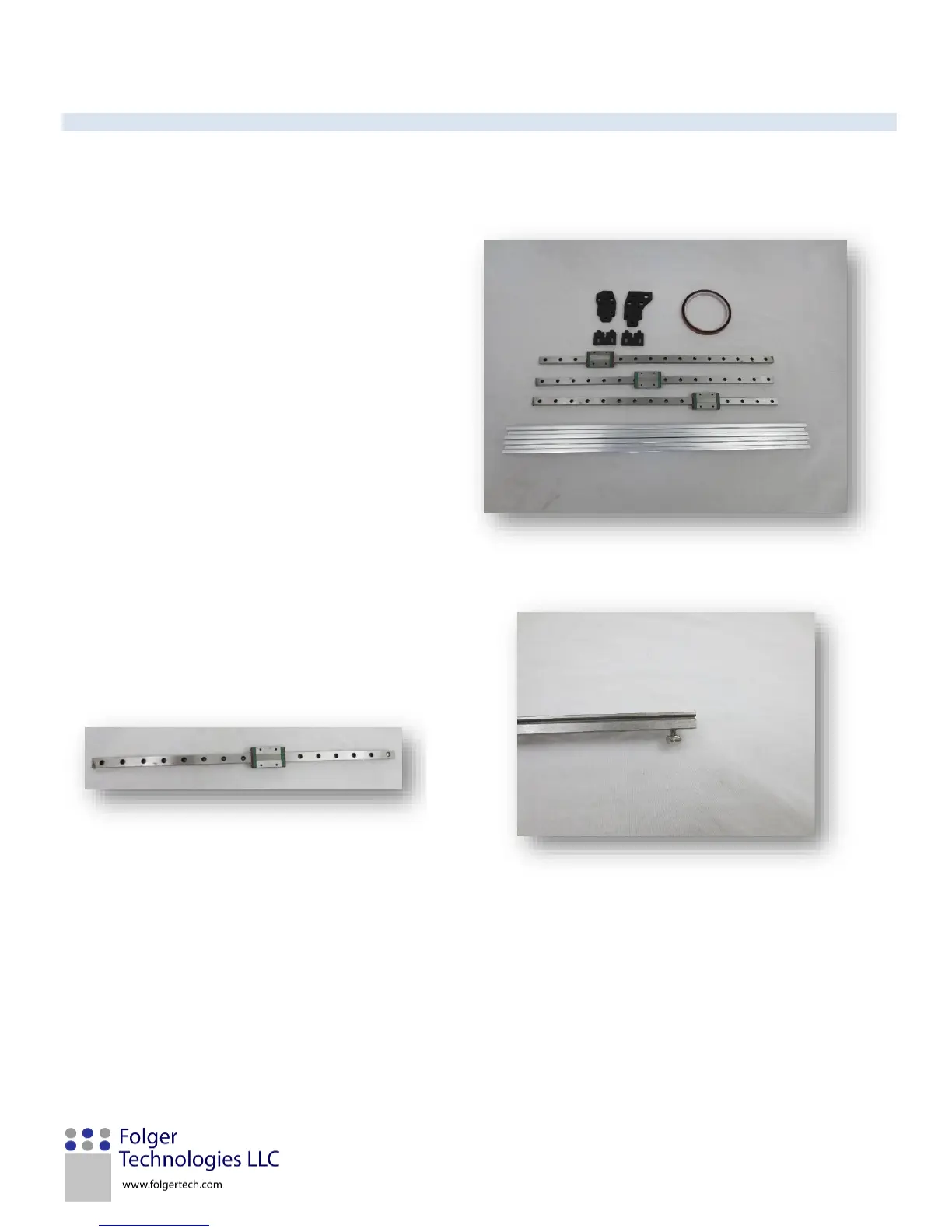

7) ASSEMBLE Y GANTRY RAILS
In this section, Y gantry rails will be assembled. It is important that the slides on the rails do not fall off.
You will need:
Item ID
Quantity
Description
5
3
Slider Rail
2
2
460mm 2020 Beam
39
1
Kapton Tape
E
32
M3x8mm Screw
B
24
M3 T-nut
D
2
M3 Square nut
H
2
M3x16mm Screw
Z
4
M5x10mm Screw
Y
4
M5 T-nut
FT5
2
Y-Belt
FT10
1
Idler (7 Bolt)
FT7
1
Motor Right
1. Take one of the slider rail, insert a M3x8mm
screw into every other hole on the rail. Finish
off each one with a M3 T-nut.
2. Repeat step one for the remaining two slider
rail.
