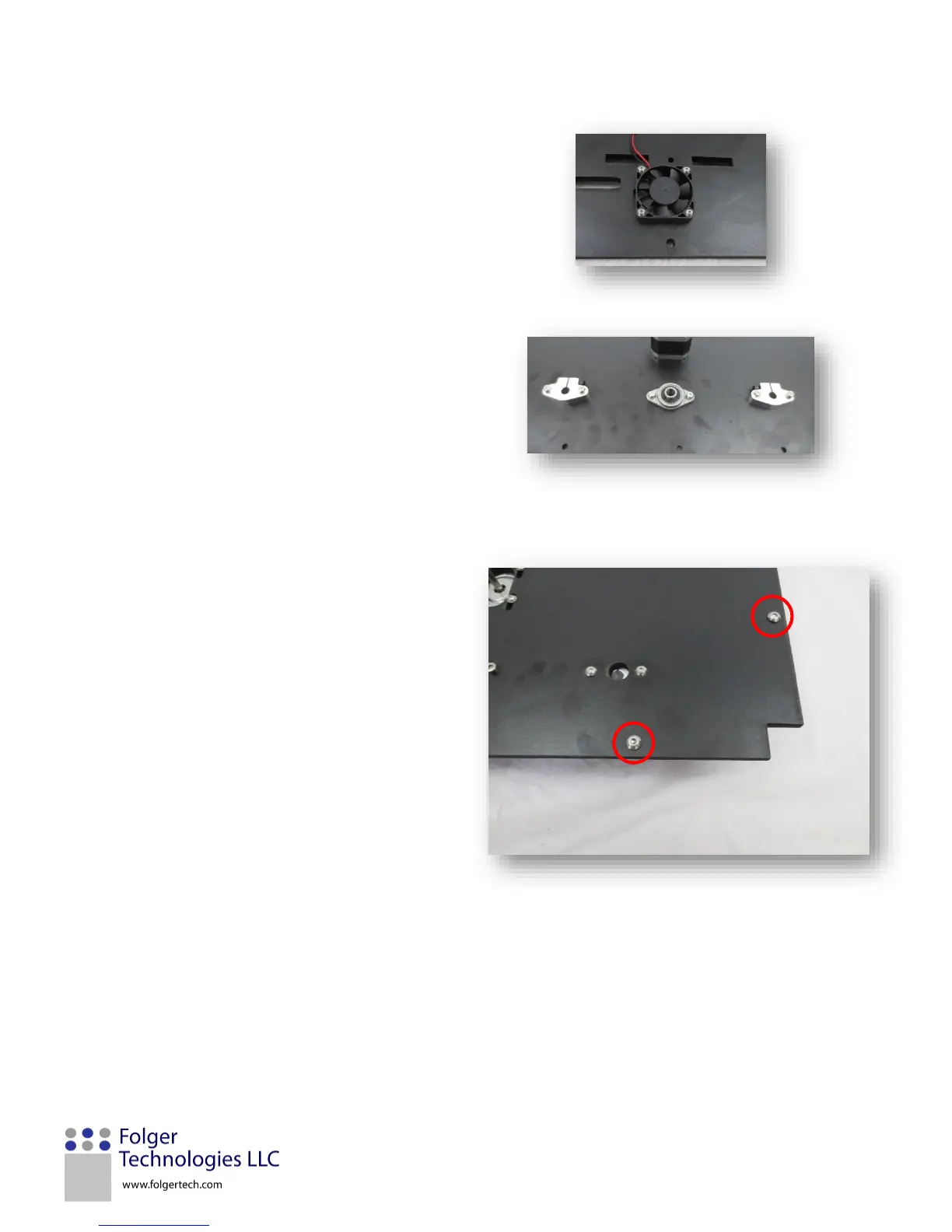

3. Place the fan on the top side over the fan
opening. Secure it in place using four
M3x20mm screws and four M3 Nylock nuts.
4. Take two SHF8 and one KFL8 and place them on
the underside of the Bottom Panel. Secure the
two SHF8 in place using two M4x20mm screws
and M4 Nylocks. The KFL8 is secured in place
using two M4x16mm screws and two M4
Nylocks.
5. Repeat step 4 for the other side of the base
plate.
6. With the face of the Bottom Panel pointing up,
insert 18 M5 x 10mm screws and finish them off
using 18 M5 T-nuts.
