FT-5 User Manual Page 32

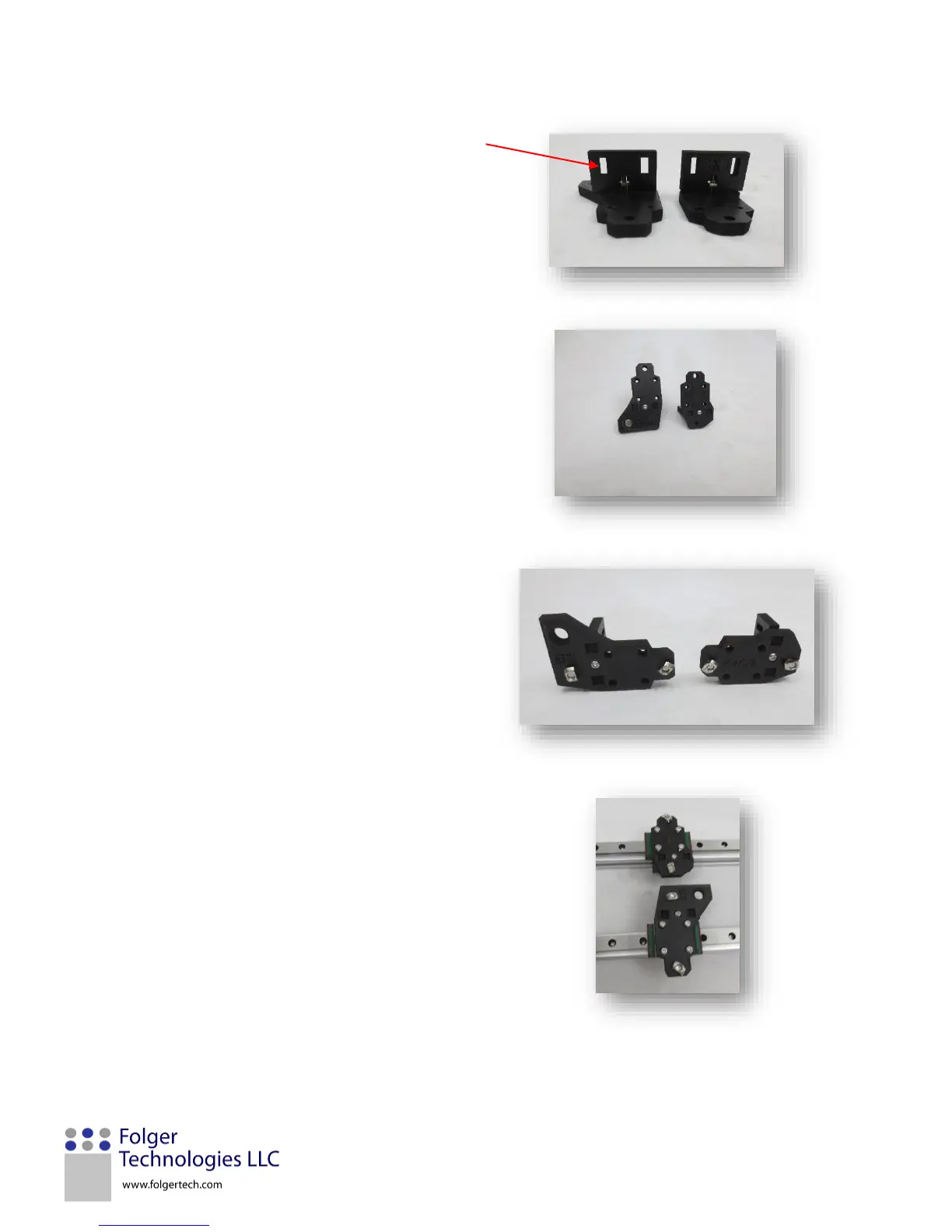

6. Take the FT10, FT7 and slide the FT5 into the
two gantry mounts. Insert a M3 square nut
into each one and screw in a M3x16mm screw.
This will lock the two parts together.
7. Insert two M5x10mm screws into each one
and finish them off with two M5 T-nuts.
8. Position the two rails parallel to each other.
Set the two laser cut assemblies on top of each
slider so that the Y belt holders are on the
inside. Secure each one down using four
M3x8mm screws.
Y Belt Holders
