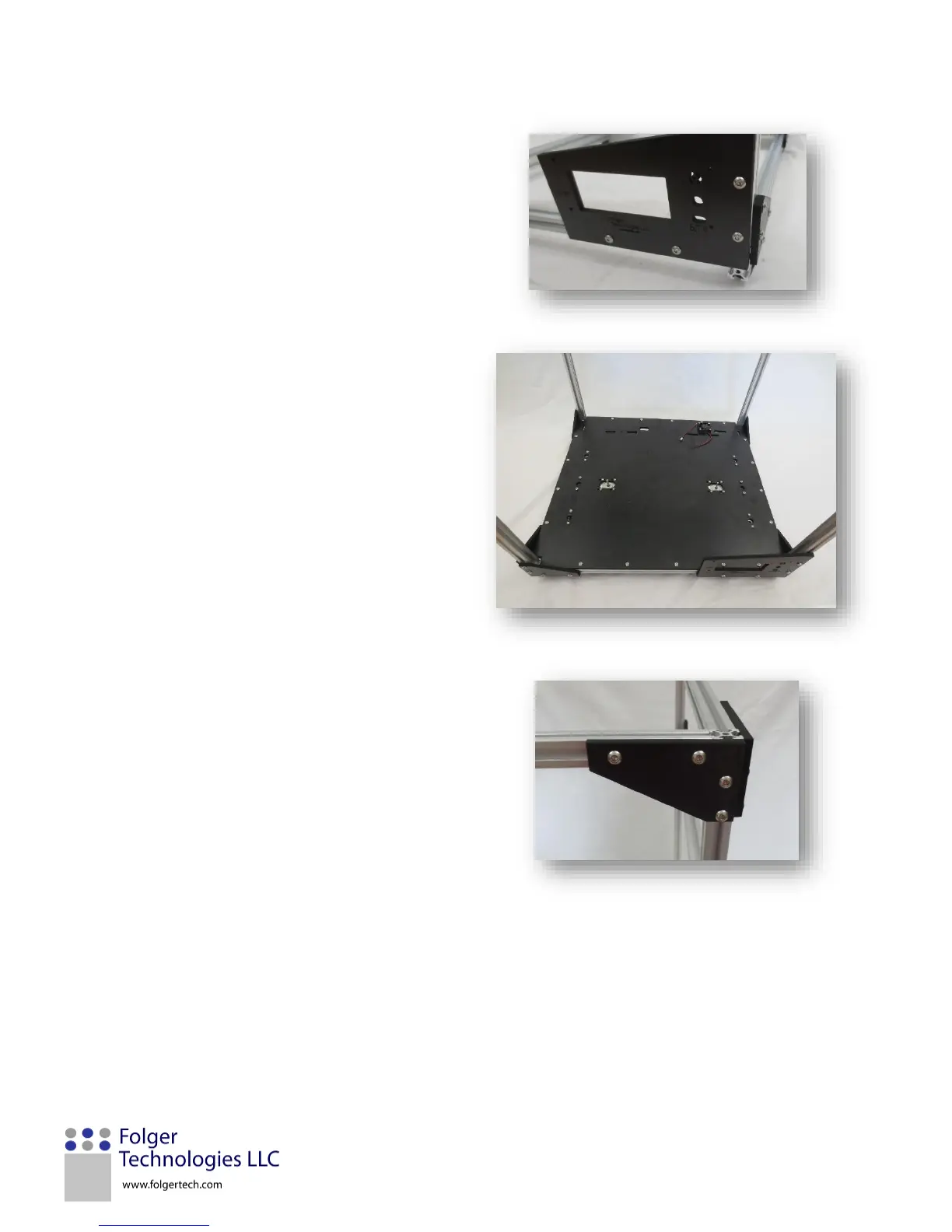

7. The LCD Panel (FT25) attaches to one of the
single AL beams and that side is now the front
of the machine. Using the same process as
steps 3-6, attach three more corners on the
frame. NOTE: The opposite side of the LCD
Panel and left corner, the BACK, has no
corner pieces on it and will be covered with
the back electronics box panel later in this
guide.
8. Using the same process before, add the top of
the frame. Note that the sides use 460mm
2020 beams and the front uses 500mm 2020
beams.
