FT-5 User Manual Page 48

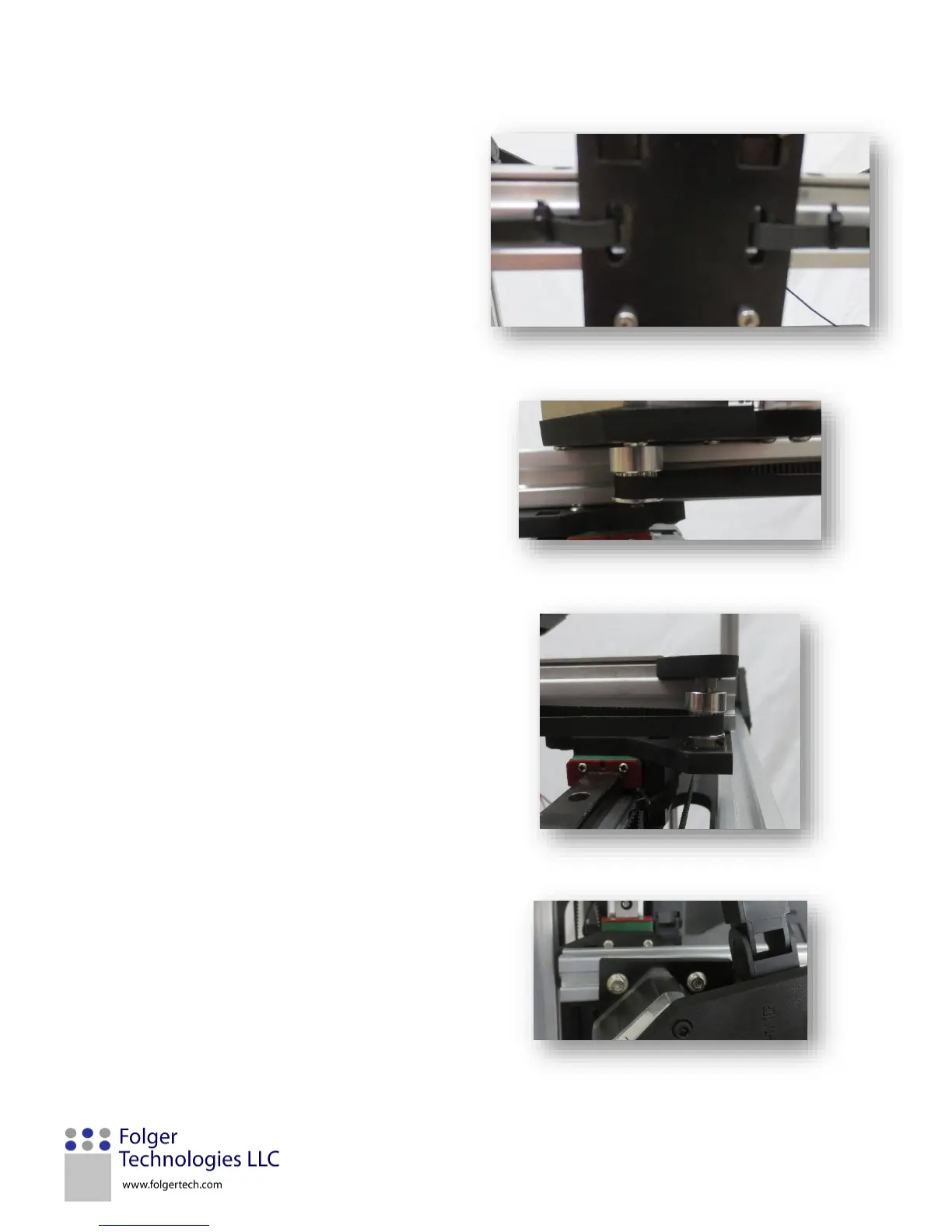

34. Take a one-meter length of GT2 Belt and loop
one end of the belt through one end of the
extruder back plate. Secure it with a zip tie.
35. Loop around the stepper motor pulley.
36. Loop around the idler pulley. Finish it off by
looping through the other end of the extruder
back plate. Use a zip tie to secure it in place and
trim the excess.
37. Loosen the two M5 screws and pull the motor
so that the belt is tight. Tighten these back
down when the belt is tight.
