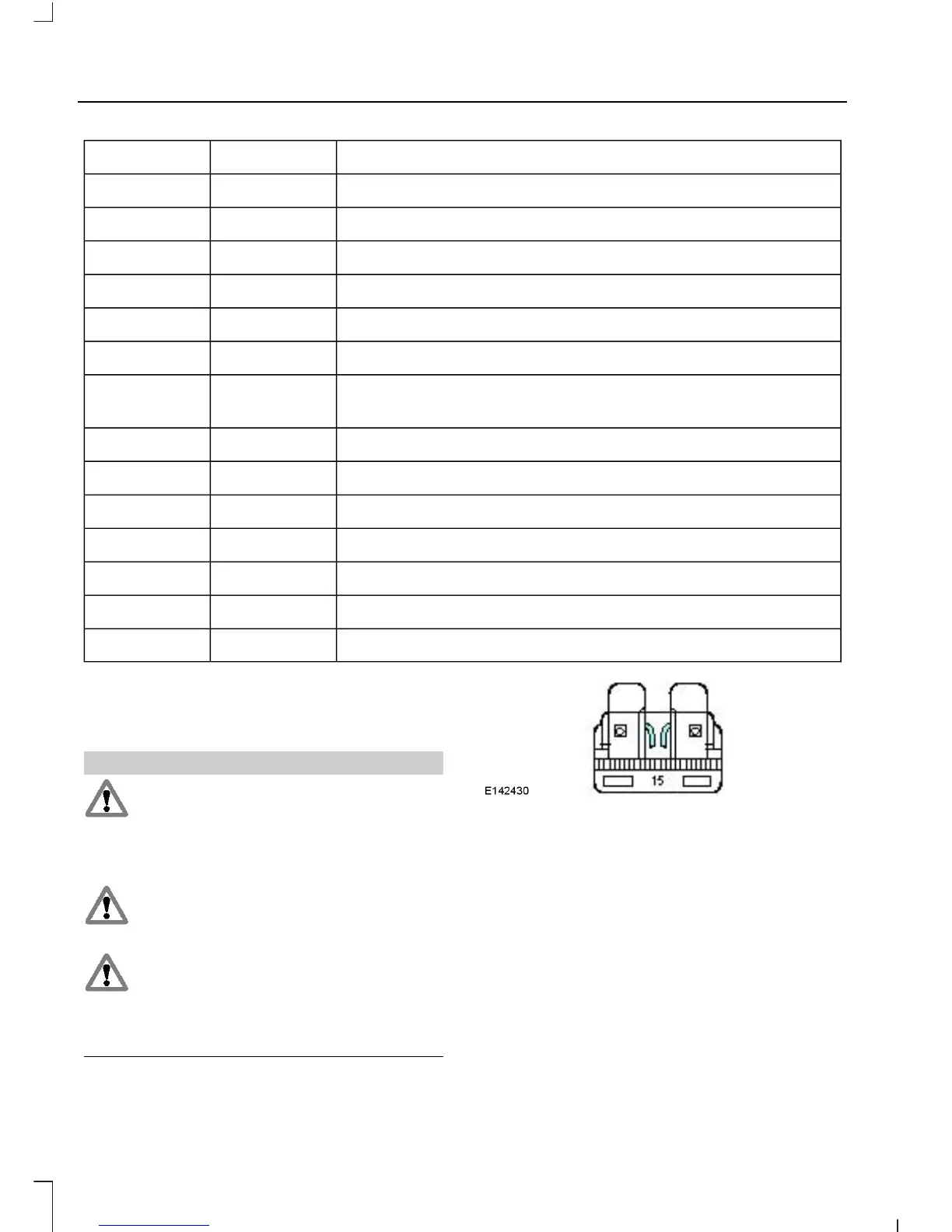

Circuits protectedFuse ratingFuse
Fog lamp supply15 A8
High beam right supply10 A9
High beam left supply10 A10
Exterior lamp right25 A11
Battery backup sounder supply, security horn20 A12
On board diagnostics 2 supply, battery saver supply15 A13
Direction indicator supply, rear fog lamp supply, daytime
running lamp supply
25 A14
Exterior lamp left25 A15
Radio, CD, navigation supply20 A16
Instrument cluster7.5 A17
Light switch module, steering wheel module supply10 A18
Audio system5 A19
Ignition passive anti-theft system supply5 A20
Radio and instrument cluster ignition accessory3 A21
CHANGING A FUSE
WARNINGS
Do not modify the electrical system
of your vehicle in any way. Have
repairs to the electrical system and
the replacement of relays and high current
fuses carried out by an authorized dealer.
Switch the ignition and all electrical
equipment off before attempting to
change a fuse.
Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage
rating can cause severe wire damage and
could start a fire.
If electrical components in your vehicle are
not working, a fuse may have blown. A
break in the fuse wire will indicate a blown
fuse. Check the appropriate fuses before
replacing any electrical components.
144
Tourneo Custom/Transit Custom (TTF)
Fuses
