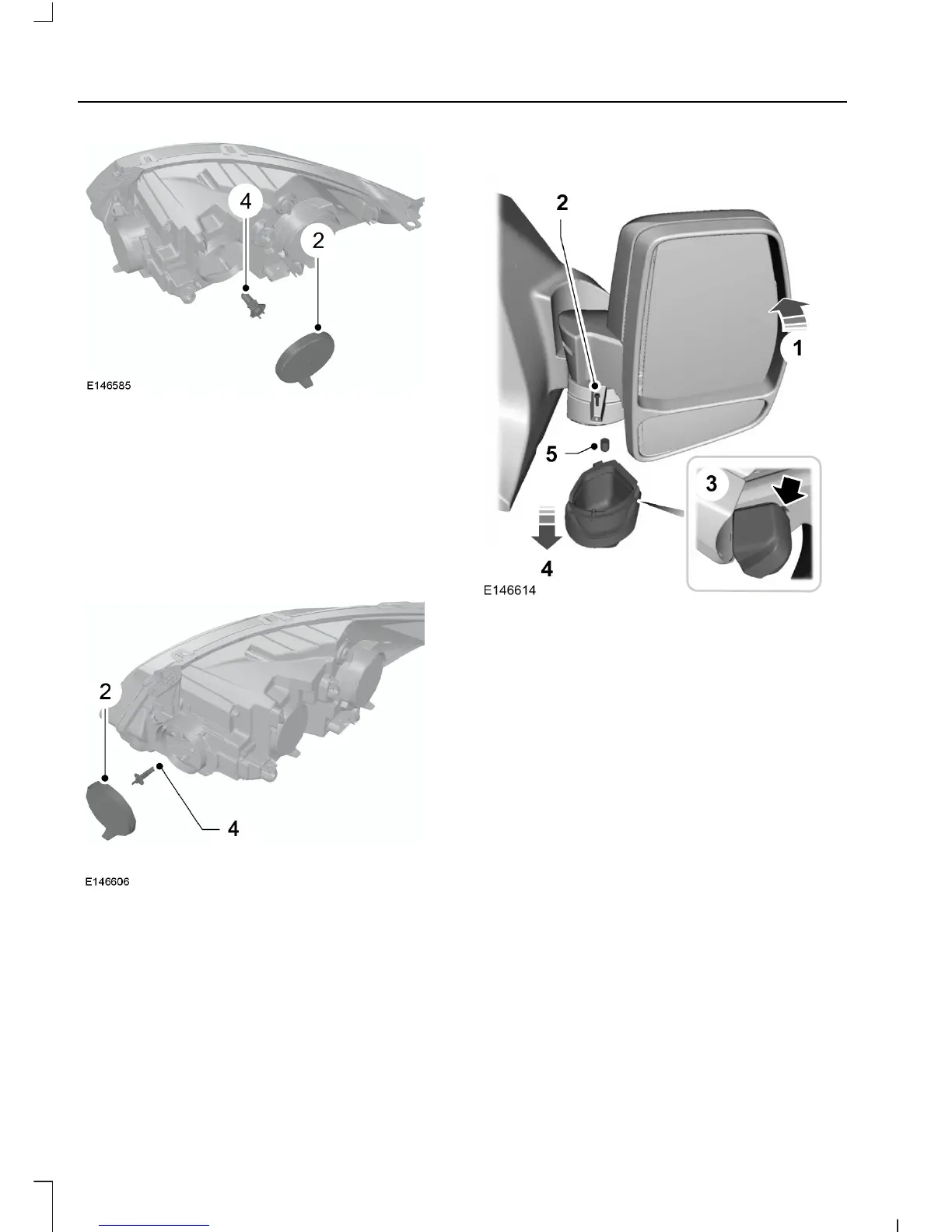

2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Note: Do not touch the glass of the bulb.
Cornering Lamp
1. Remove the headlamp. See
Removing a Headlamp (page 153).
2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Note: Do not touch the glass of the bulb.
Side Repeater
1. Fold the mirror to its fully forward
position.
2. Remove the screw.
3. Using a screwdriver, gently prise the
clip to release the lamp.
4. Carefully remove the lamp.
5. Remove the bulb holder by pulling it
straight out. Remove the bulb.
156
Tourneo Custom/Transit Custom (TTF)
Maintenance
