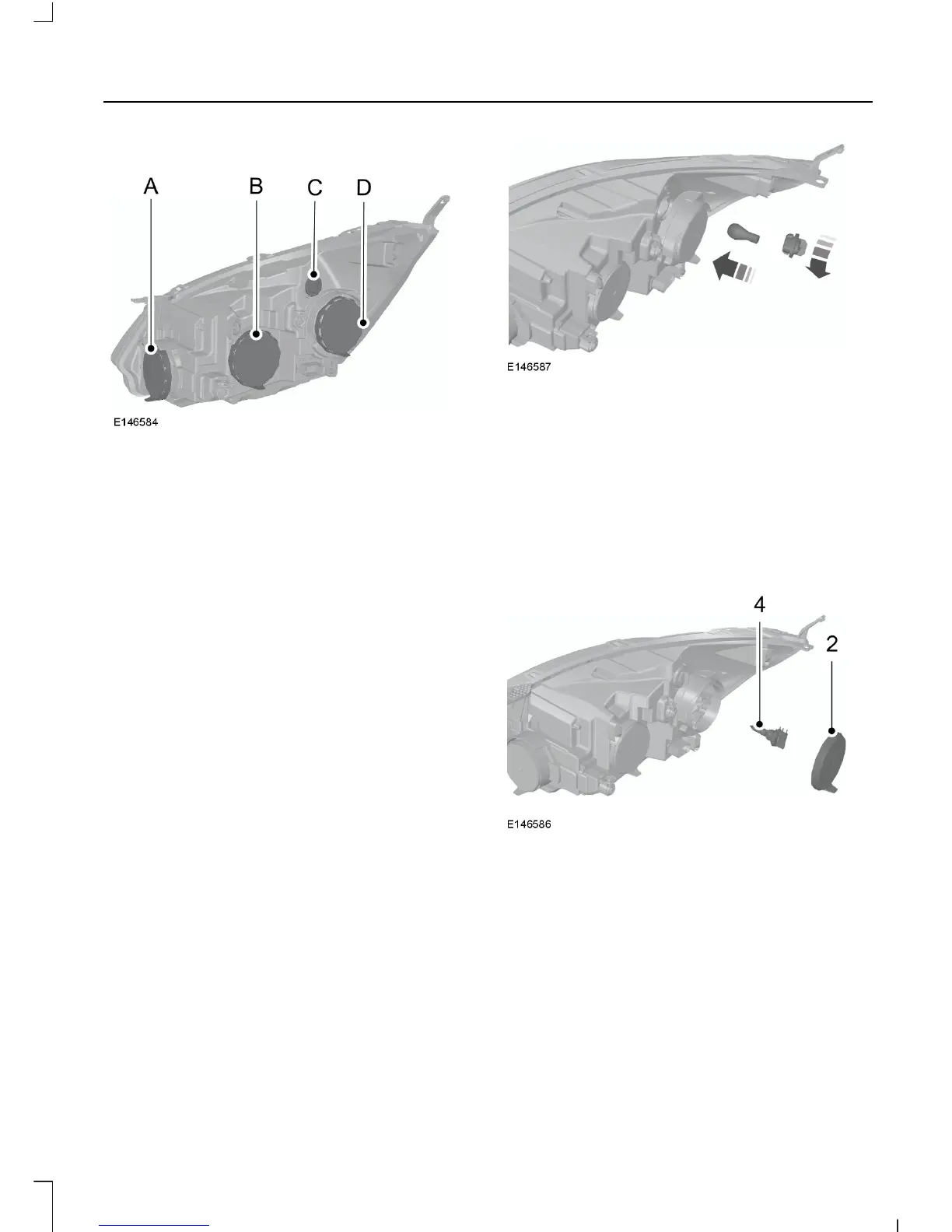

Headlamp
Cornering lampA
Headlamp high beamB
Direction indicatorC
Headlamp low beam and side
lamp
D
Note: Remove the covers to gain access to
the bulbs.
Side Lamp
1. Remove the headlamp. See
Removing a Headlamp (page 153).
2. Remove the cover.
3. Remove the bulb holder by pulling it
straight out. Remove the bulb.
Direction Indicator
1. Remove the headlamp. See
Removing a Headlamp (page 153).
2. Turn the bulb holder counterclockwise
and remove it.
3. Gently press the bulb into the bulb
holder, turn it counterclockwise and
remove it.
Headlamp Low Beam
1. Remove the headlamp. See
Removing a Headlamp (page 153).
2. Remove the cover.
3. Disconnect the electrical connector.
4. Release the clip and remove the bulb.
Note: Do not touch the glass of the bulb.
Headlamp High Beam
1. Remove the headlamp. See
Removing a Headlamp (page 153).
155
Tourneo Custom/Transit Custom (TTF)
Maintenance
